14 PNEG-225 Corrugated Floor and Monorail Layouts
4. Monorail Installation

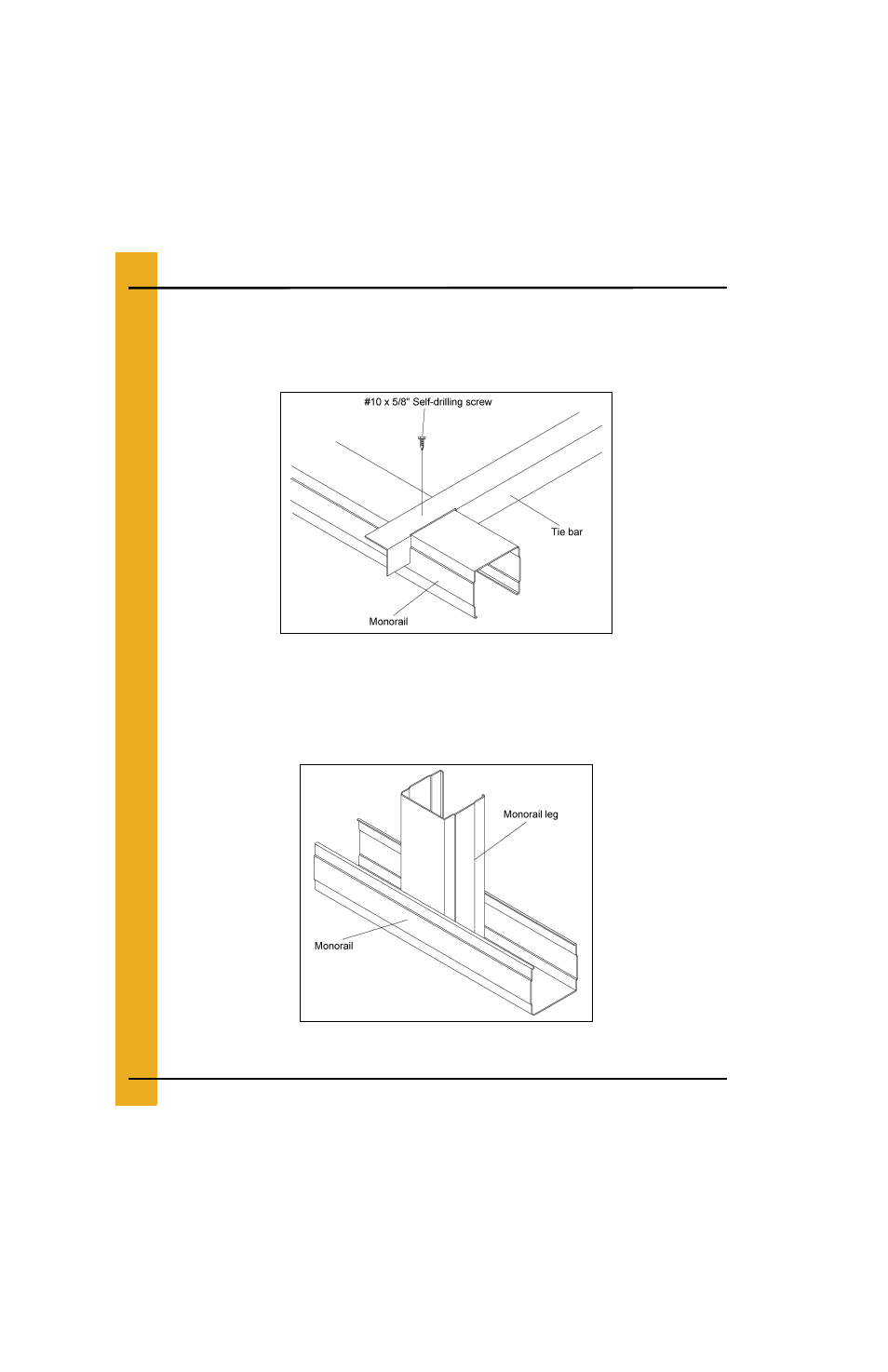

Tie Bar Detail
1. Locate the tie bars between the rails. (Spaced evenly throughout the system.)
2. A single #10 self-drilling screw may be used to fasten the tie bars at each end to the rails as
necessary. (See Figure 4A.)
Figure 4A
Assembling Legs to Rail
1. Place two (2) corners of the monorail leg into the rails as shown.
2. By twisting the leg it will spread the rail enough to get the other corners inside.
3. The leg can then be pushed down into the rail until the tabs lock it into place. (See Figure 4B.)
Figure 4B
