- 65 -

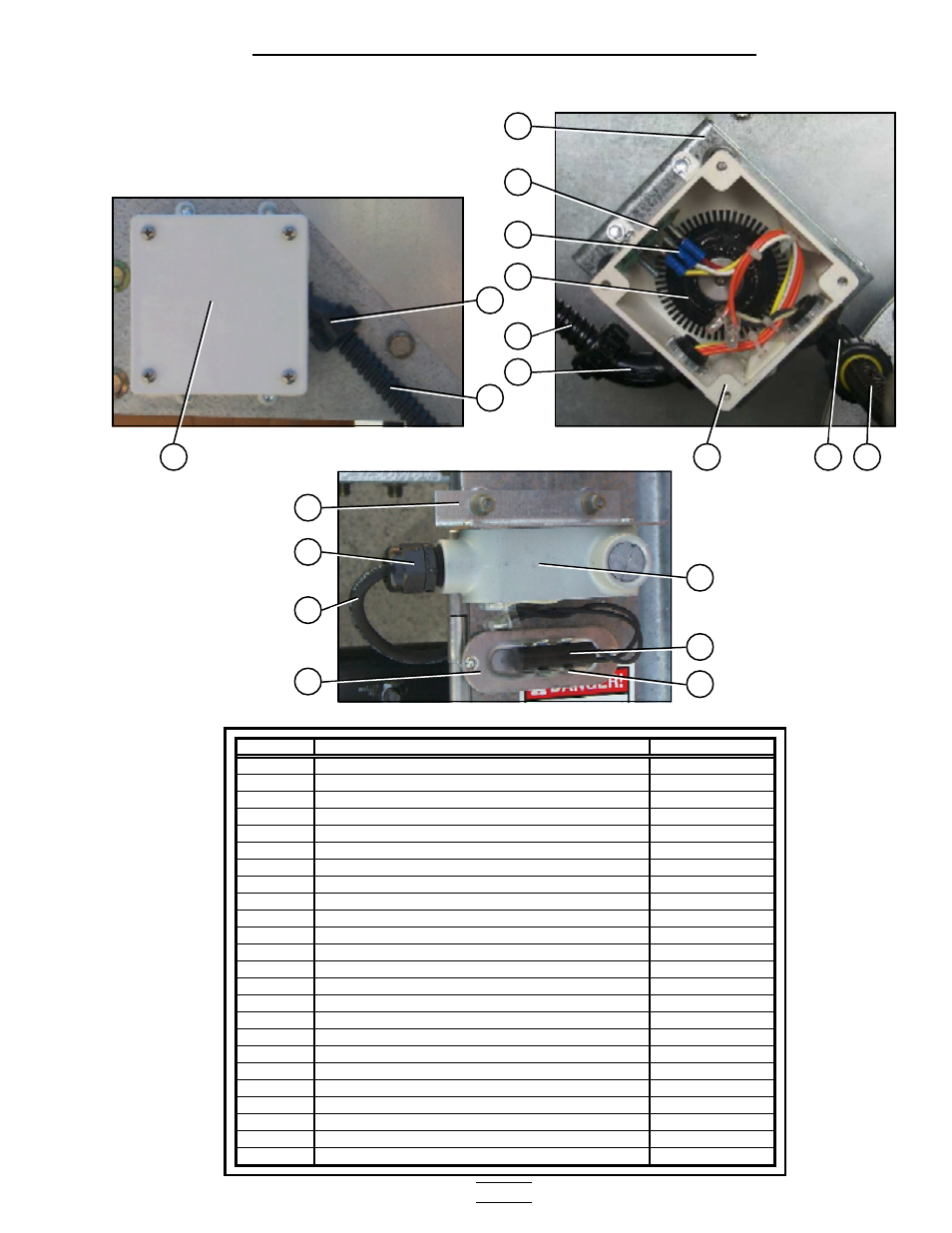

2300 Series Parts Manual Electrical (Bot. Mod.)
Lower Junction Box / Meter Roll Motor Conduit / Rear Discharge Conduit
Rear discharge switch (open to show mercury switch).
Rear discharge switch conduit at rear left
gusset.
Meter roll speed sensor.
2
1
7
16
17
18
1
11
19
11 1 7
20
8
9
21 22
23
24
ITEM No. DESCRIPTION PART No.
1 SEALTITE PVC 3/8" FH-7038
2 CONNECTOR PVC 3/8" 45' W/NUT F-6913
3 SEALTITE PVC 3/4" FH-7063
4 STRAIGHT PVC W/LOCKNUT 3/4" FH-7053
5 FITTING COMPRESSION 3/4-TO BOX D03-0199
6 CONDUIT 3/4" EMT D03-0086
7 ENCLOSURE 4x4x2.5 WHITE PVC FH-6972
8 CONNECTOR 1/2" FH-1310
9 WIRE 18/2 TYPE SJOW-A BLACK WR-182SJOWA
10 RDCR 3/4"X1/2"HEX BUSHING D07-0028
11 ELBOW 3/8" 90 DEGREE PVC W/NUT FH-7050
12 CONNECTOR 3/8" LIQUID-TITE TO 1/2" EMT D03-0060
13 CONNECTOR 1/2" EMT COMPRESSION D03-0054
14 CONDUIT 1/2" EMT METALLIC D03-0057
15 CONNECTOR 1/2" EMT COMPRESSION D33-0002
16 SPEED SENSOR BOX BRACKET D01-0462
17 SCR METER ROLL SPEED SENSOR D01-0527
18 DISCONNECT .187 FEM HH-7046
19 METERING ROLL TIMING GEAR ASSB D01-0687
20 DISCHARGE SWITCH MOUNTING PLATE D01-1105
21 COVER ALUMINUM, CONDUIT BODY TFC-0075
22 CLIP, MERCURY SWITCH SPD-2098
23 MERCURY SWITCH D03-0010
24 CONDUIT BODY, LL TYPE D03-0375
