2300 Series Parts Manual Fan Heaters
- 47 -
20 18 21 19
16
14
17 15
13

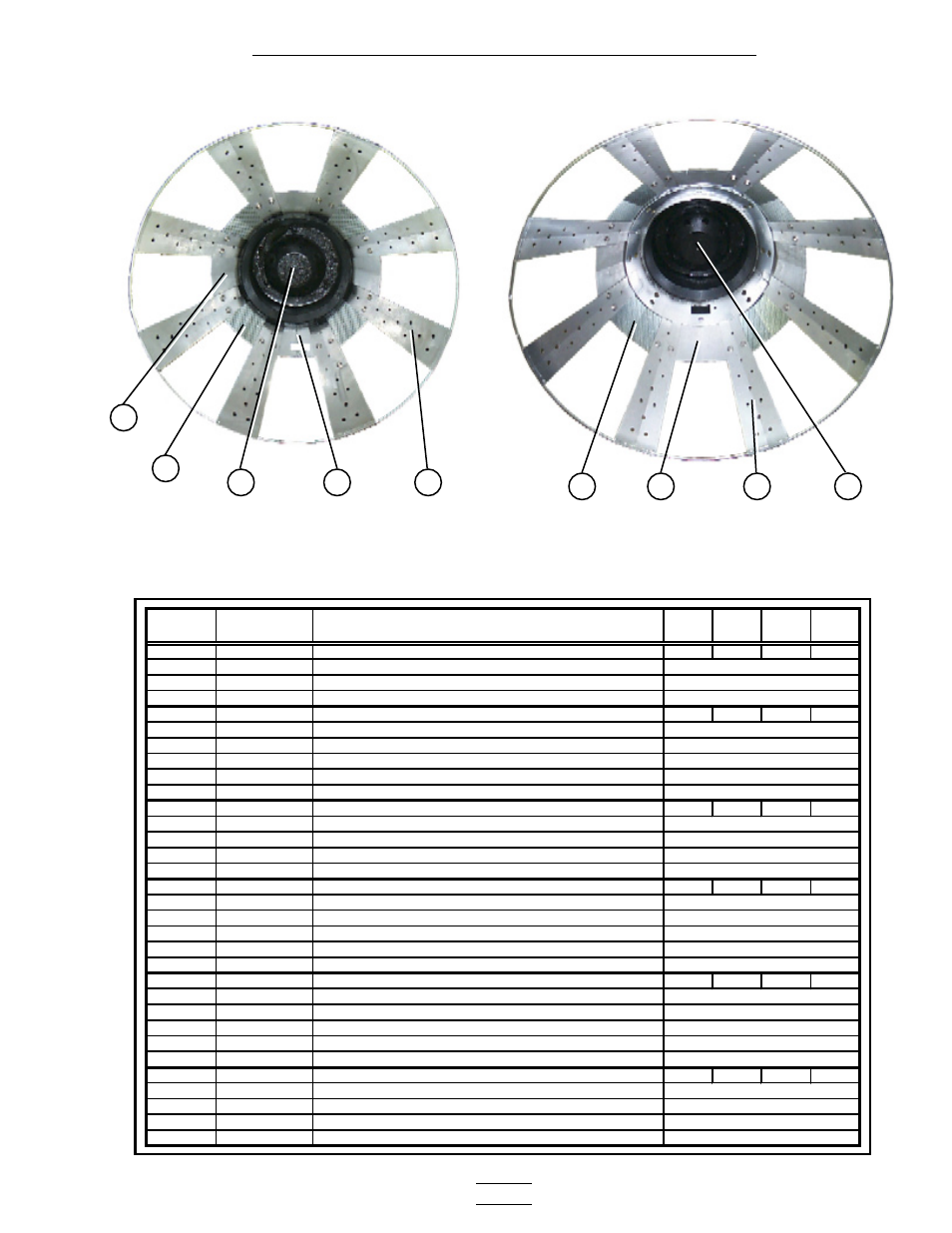

36” & 40” Fan heater burner assembly. 42” Fan heater burner assembly.
Flame Probe / Ignitor / Burner Assemblies
ITEM
NUMBER PART NUMBER DESCRIPTION
28"
F/H
36"
F/H
40"
F/H
42"
F/H
1-3 TF-1559-N FLAME PROBE ASSY NETWK 1 1 1 1
1 HH-7025 BOOT 8MM SILICONE 90DEGREE
2 THH-4179 FLAME SENSOR 6" LONG ROD
3 CD-0187 FLAME SENSOR BRACKET
4-8 TF-1558 IGNITOR ASSEMBLY 1 1 1 1
4 HF-7204 DUAL PROBE IGNITOR BRACKET
5 D01-0878 IGNITOR AIR DEFLECTOR ANGLE
6 HF-7201 IGNITOR HALF CLAMP
7 CD-0238 IGNITOR FLAME
8 TF-1876 IGNITION WIRE ASSY (includes both wires)
9-12 BA-28 28" BURNER ASSEMBLY 1
9 HF-7629 DIVERTER WELDMENT 28"
10 THF-3144 FLAME SPREADER 28"
11 THF-3141 HEATER GUN MACHINED 28"
12 THF-3113 28" DIVERTER BRACKET
13-17 BA-36 36" BURNER ASSEMBLY 1
13 THF-3038 DIVERTER BRACKET 36" & 40"
14 THF-3038P DIVERTER BRACKET 36" & 40" PERFED
15 THF-3057 FLAME SPREADER 36-42"
16 THF-3039 DIVERTER BRACKET 36" & 40" W/HOLE
17 CD-0091 BURNER WELDMENT CD 36" & 40"
13-17 BA-40 40" BURNER ASSEMBLY 1
13 THF-3038 DIVERTER BRACKET 36" & 40"
14 THF-3038P DIVERTER BRACKET 36" & 40" PERFED
15 THF-3057 FLAME SPREADER 36-42"
16 THF-3039 DIVERTER BRACKET 36" & 40" W/HOLE
17 CD-0091 BURNER WELDMENT CD 36" & 40"
18-21 BA-42 42" BURNER ASSEMBLY 1
18 CD-0448P DIVERTER BRACKET 42" PERFD
19 CD-0448 DIVERTER BRACKET 42"
20 CD-0208 BURNER WELDMENT CD 42"
21 THF-3057 FLAME SPREADER 36-42"
4/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
4/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
3/ASSEMBLY
4/ASSEMBLY
2/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
2/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
3/ASSEMBLY
4/ASSEMBLY
1/ASSEMBLY
