2300 Series Parts Manual Bottom Module
- 19 -

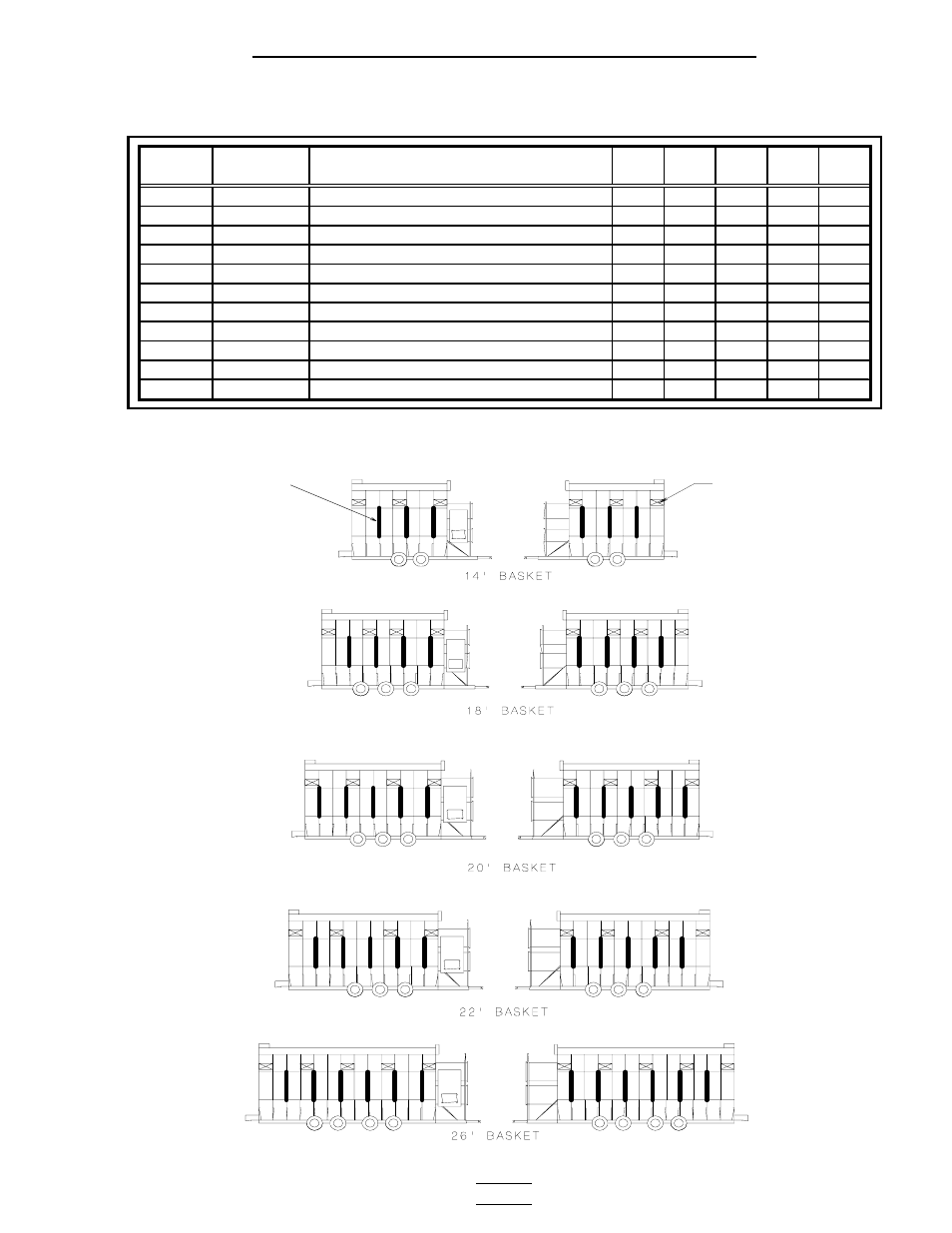

X shows the column
location for the pad
base for the upper
module. Dark lines shows the
column location for the
stiffener attach angles.
Module Support Pads / Stiffener Attach Angles
ITEM
NUMBER
PART
NUMBER DESCRIPTION 2314 2318 2320 2322 2326
1 D21-0003 TOP EDGE ANGLE 71.875" 2 2
1 D31-0004 TOP EDGE ANGLE 95.875" 4
1 D01-0168 TOP EDGE ANGLE 119.875" 2 4
2 D31-0003 TOP EDGE ANGLE SPLICE 2 2 2 4 4
3 D31-0004 TOP EDGE ANGLE 95.875" 2 2 4
3 D01-0168 TOP EDGE ANGLE 119.875" 2
4 D01-0872 STIFFENER ATTACH ANGLE 6 8 10 10 12
5 D61-0021 BODY TIE-IN GUSSET LH 6 8 8 8 10
6 D61-0022 BODY TIE-IN GUSSET RH 6 8 8 8 10
7 D61-0012 CRANE BRACKET 4 4 4 4 4
8 D61-0013 MODULE SUPPORT PAD 6 8 8 8 10
