2300 Series Parts Manual Fan Heaters
- 55 -
D
19
17
4
5
11
12
18 12

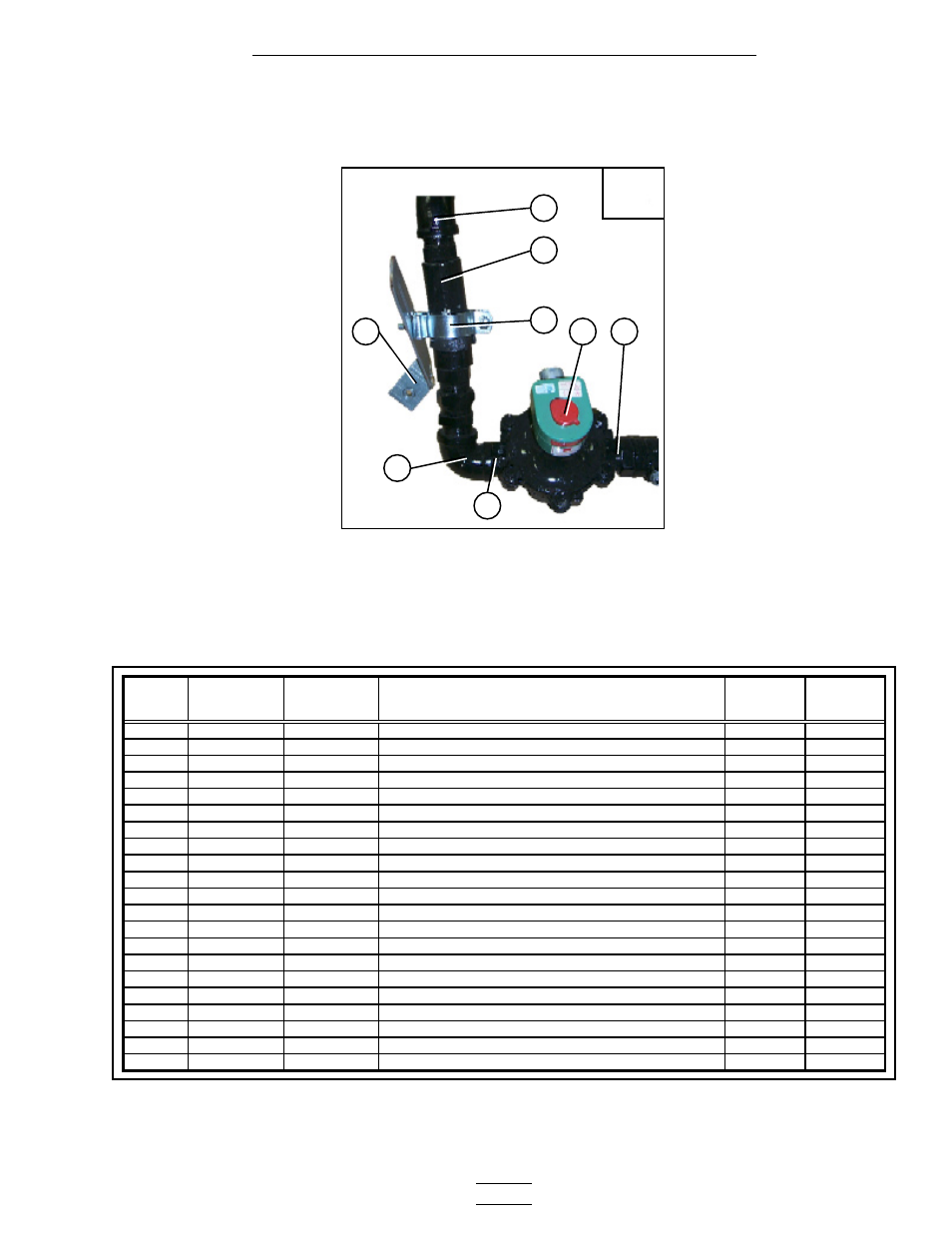

NG Pipe Train Assemblies
ITEM
NUMBER
(A,B,C,D)
PART
NUMBER DESCRIPTION 36" F/H
40" &
42" F/H
1 A,B,C D08-0011 ELBOW 1 1/2"-90 SCH 40 4 4
1a A,B,C GT3-0553 RDCR, HEX 1 1/2" x 3/4" (FOR ORIFICE) 1
1a A,B,C D08-0007 RDCR 1 1/2" x 1" (FOR ORIFICE) 1
2 A,B,C D08-0013 NIPPLE 1 1/2 X 3" SCH40 1 1
3 A,B,C D08-0001 NIPPLE 1 1/2"x6" SCH 40 1 1
4 A,C,D S-6643 CONDUIT HANGER 1 1/2 3 3
5 A,C,D TF-1239 ANGLED PIPETRAIN BRKT, 36-42" 3 3
6 B,C D03-0445 TEE 1 1/2"x1"x1 1/2" SCH40 2 2
7 B,C D08-0009 NIPPLE 1 1/2" CLOSE SCH 40 4 4
8 B,C D08-0022 GAUGE PRESSURE 0-15# PSI 1 1
9 B,C THH-4001 RDCR 1"x1/4"HEX BUSHING S40 1 1
10 B,C TF-1536 VALVE 1-1/2" NPT SOLONOID 1 1
11 B,D HH-7038 ELBOW 1"-45 SCH 40 1 1
12 B,C,D THH-4117 NIPPLE 1" CLOSE SCH 40 3 3
13 B D38-0001 TEE 1 1/2"x1 1/2"x1" SCH40 1 1
14 B,C D03-0446 NIPPLE 1.5"X11.5" SCH40 1 1
15 C TFC-0093 VALVE 1" NPT BRONZE BALL 1 1
16 C THH-4151 NIPPLE 1" X 3" SCH 40 1 1
17 D THH-4115 ELBOW 1"-90 DEG SCHED 40 1 1
18 D TFC-0031 VALVE 1" NPT SOLENOID 1 1
19 D D68-0020 HOSE 1" X 9" GAS 1 1
