22 PNEG-603 4" Commercial Hopper Tank
5. FCHT Substructure
FCHT Parts List for Substructure

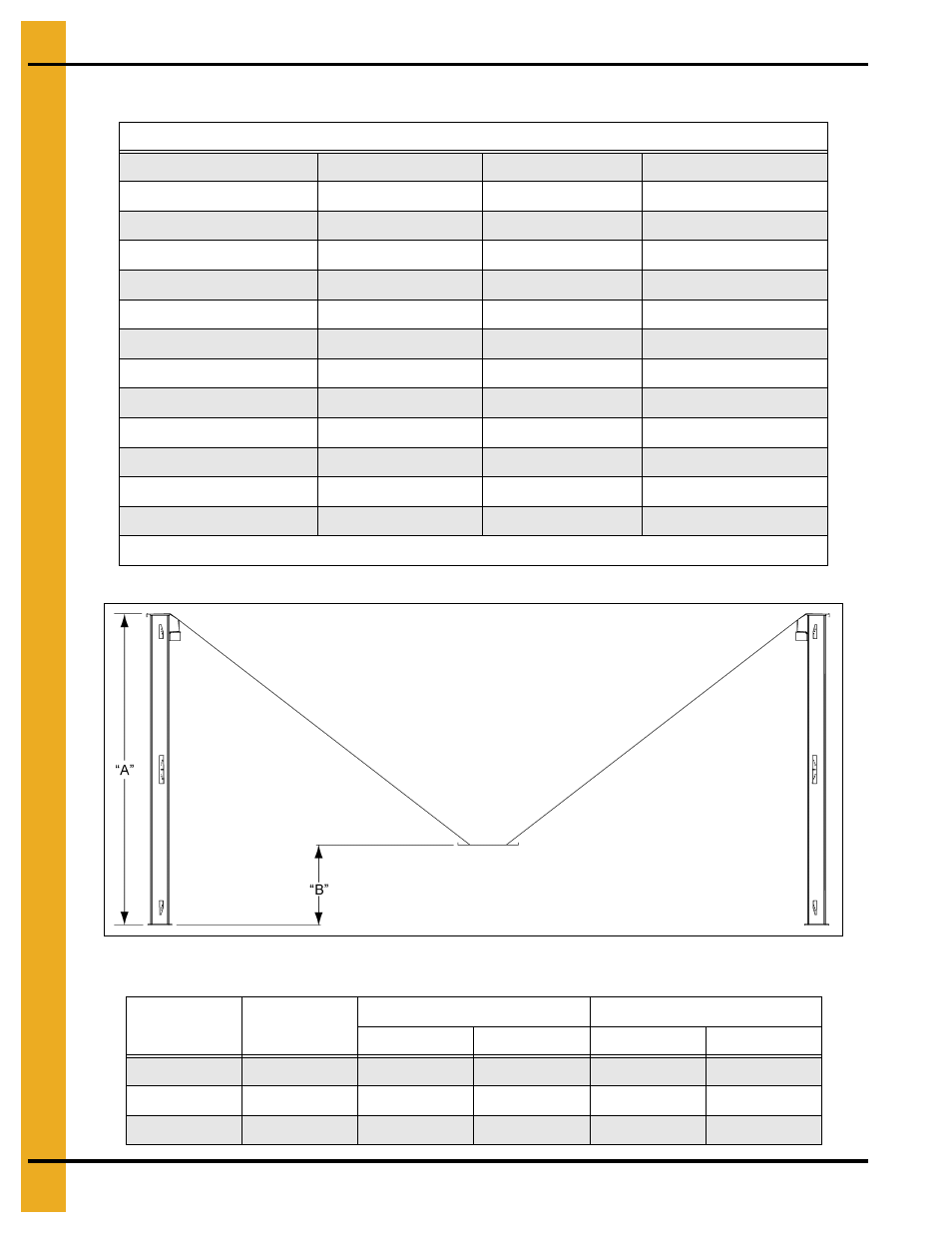

Figure 5A
FCHT Substructure Parts List
Tank Size 18'-45° 21'-45° 24'-45°
Color Code Gold and White Gold and Brown Gold and Light Blue
Column Weldment LCHT-0030 (12) LCHT-0043 (14) LCHT-0116 (16)
Compression Weldment LCHT-0209 (12) LCHT-0211 (14) LCHT-0121 (16)
Compression Splice ** LCHT-0032 (12) LCHT-0045 (14) LCHT-0008 (16)
Hopper Collar LCHT-0037 (1) LCHT-0050 (1) LCHT-0026 (1)
Horizontal Brace LCHT-0011 (24) LCHT-0011 (28) LCHT-0011 (32)
Diagonal Brace LCHT-0033 (48) LCHT-0046 (56) LCHT-0046 (64)
Right Hopper Panel LCHT-0034 (12) LCHT-0047 (14) LCHT-0012 (16)
Left Hopper Panel LCHT-0035 (12) LCHT-0048 (14) LCHT-0013 (16)
Support Hardware LCHT-0038 (1) LCHT-0051 (1) LCHT-0022 (1)
Base Angle Shim ** LCHT-0014 (12) LCHT-0014 (14) LCHT-0014 (16)
Column Shim Plate ** LCHT-0015 (60) LCHT-0015 (70) LCHT-0015 (80)
** Indicates components that will be found in the support hardware.
Tank Size
Diameter
Hopper
Slope
“A” Dimension “B” Dimension
Feet Meters Inches Millimeters
18' 45 11' - 1-3/16" 3.383 34" 864
21' 45 12' - 5-3/16" 3.789 32" 813
24' 45 13'-5" 4.089 31" 787
