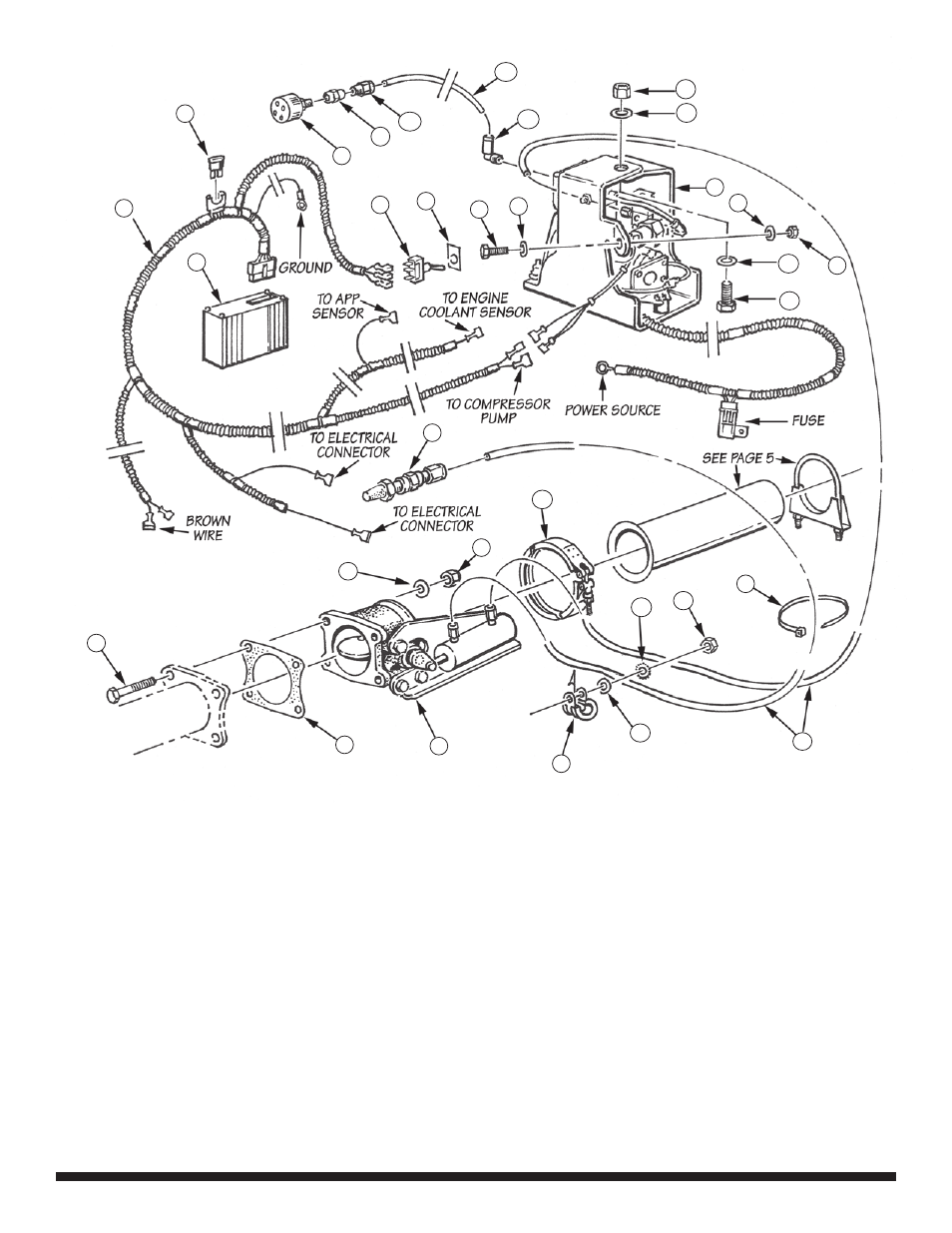

General assembly
6
3
26
18
8 9
25 23
11
10
2
23
10
12
24
27
28
19
4
5
13
15
21
14
7
1 20
29
17
21
16
No Description
1 assembly, Brake housing
2 Compressor Panel
3 Computerized Brake Control
4 Breather assembly
5 Cable ties, 7” (19)
6 Fuse, 2 amp
7 Cable Clamp, 1 ⁄
4
” x 1 ⁄
4
” (15)
8 switch, Power
9 Plate, Power switch
10 Washer, 1 ⁄
2
” aN (2)
11 Nylock Nut, 1 ⁄
2
” -20
12 Hex Bolt, 1 ⁄
2
” -20 x 1”
13 Nut, 6mm x 1mm (3)
14 Washer, 1 ⁄
4
” aN (3)
15 Ext. Tooth Lock, 1 ⁄
4
” (3)
16 Fitting, Push Lock, 90 degree
17 Fitting, Push Lock, straight
18 Coupler, 1 ⁄
8
” x 1 ⁄
8
” Female
19 Clamp, V-Band*
20 Gasket, Exhaust Flange
21 hose, Pressure
22 Wire harness
23 Washer, 5 ⁄
16
” saE (2)
24 Nut, Crimplock 5 ⁄
16
” -18
25 Hex Bolt, 5 ⁄
16
” -18 x 3 ⁄
4
”
26 Filter, Compressor Pump
27 Washer, 7 ⁄
16
” aN
(for 55224 only)
28 Crimplock Nut, 7 ⁄
16
” - 20
(for 55224 only)
29 Hex Bolt, 7 ⁄
16
” - 20 x 1 1 ⁄
2
”
(for 55224 only)
Not shown:
30 Connector, Female spade (2)
31 Connector, male spade
32 Wire Extension
33 Connector, Bypass, CBC
34 Connector, tee-tap, red (4)
35 urocals, Banks Power (2)
36 Product registration Card
37 Warranty statement
38 Owner’s manual
*kit 55224 contains (2) clamps
