Banks Power Ford Trucks: (Diesel ’03 - 07 6.0L Power Stroke) Tuner- Six-Gun Diesel Tuner w_ optional Speed-Loader Module For use with Six-Gun switch Only User Manual
Page 9

96450 v.9.0
9
7.
Plug the supplied wiring harness
“A” (as shown in Figure 5) into the
Six-Gun module connector labeled,
“BANKS HARNESS.”
2003-04 model year vehicles: Route
the harness under the power steering
fluid reservoir.
2005-06 model year vehicles: Route
the harness to the PcM in the most
direct path possible.
Plug the harness connector into the
middle PcM connector (connector c).
8.
Remove the plastic covers on PcM
connectors “A” and “B” as shown in
Figure 2.
9.
T-tap the following wires (see
Figure 2 for the location of each
connector):
a.) RED wire on connector “A”,
pin #34 (see Figure 3)
b.) DARK BLUE/LIGHT GREEN wire on
connector “A”, pin #38
(see Figure 3)
c.) Automatic Transmission Vehicles
Only: BROWN/ORANGE wire on
connector “B”, pin #14
(see Figure 4)
Note: Apply a liberal amount of the
supplied dielectric grease to the t-tap
prior to installation.
10.
Plug wiring harness “B” into its
mating connector on the Six-Gun
module as shown in Figure 5.
11.
Route the VIOLET and GRAY wires
from the Six-Gun module and the
FUSED power wire from harness “B” to
the PcM.
2003-04 model year vehicles: Route
the wires under the power steering
fluid reservoir.
2005-06 model year vehicles: Route
the wires in the most direct path to
the PcM.
12.
connect the fused power
wire from the Six-Gun module to
the RED wire that was T-tapped on
connector “A”.

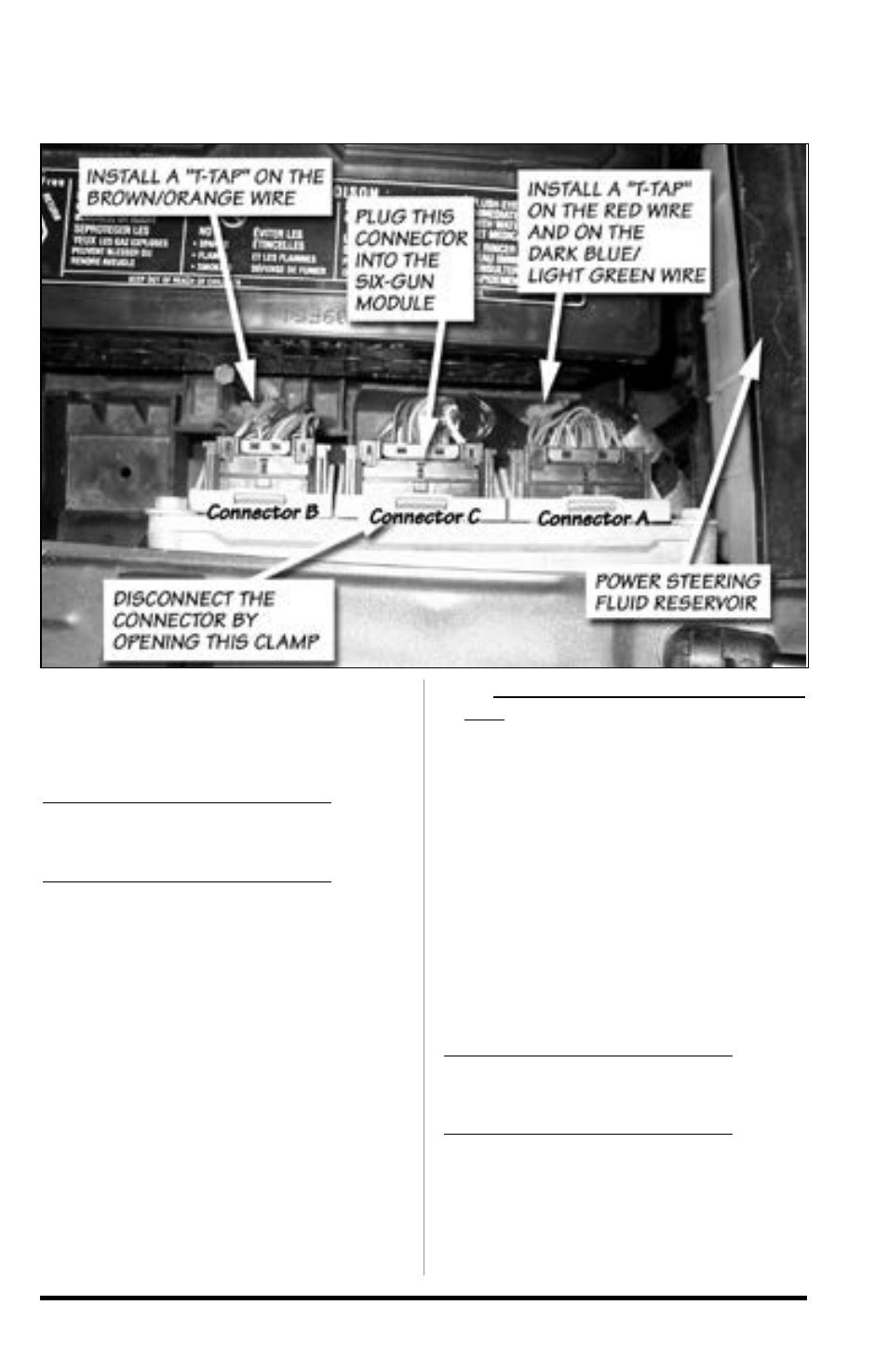

Figure 2 View of the PCM after the battery cover has been removed
