Banks Power Ford Trucks: (Diesel ’03 - 07 6.0L Power Stroke) Tuner- Six-Gun Diesel Tuner w_ optional Speed-Loader Module For use with Six-Gun switch Only User Manual
Page 11

96450 v.9.0
11
13.
connect the VIOLET wire from
the Six-Gun module to the DARK BLUE/
LIGHT GREEN wire that was T-tapped
on connector “A”.
14.
Automatic Transmission Vehicles
Only: connect the GRAY wire from
the Six-Gun module to the BROWN/
ORANGE wire that was T-tapped on
connector “B”.
15.
Manual Transmission Vehicles
Only: The GRAY wire will not be used.
Unplug the manifold absolute pressure
sensor (MAP) connector shown in
Figure 6. The MAP connector can be
unplugged by sliding the red safety
slide down, pressing the locking
button, then pulling on the connector.
16.
Plug the Six-Gun MAP connector
into the MAP sensor. Plug the factory
MAP connector into the Six-Gun MAP
wiring harness. Route the harness
from the Six-Gun to the MAP sensor as
shown in Figure 7. Use the supplied
zip ties to secure the MAP harness
to the factory harness. Failure to
follow the recommended wire
routing may result in a melted
wire.
17.
Route the Six-Gun Selector
switch/instrument wire harness
through the firewall to the passenger
compartment. When passing through
the firewall, either make a hole in a
factory grommet or drill a hole and use
a new grommet. If drilling, check the
backside to make sure there are no
components that may be damaged by
drilling.
18.
2003-04 model year vehicles
only: Remove the clip shown in
Figure 8 to create adequate room
to mount the Six-Gun module to the
driver side inner fender.

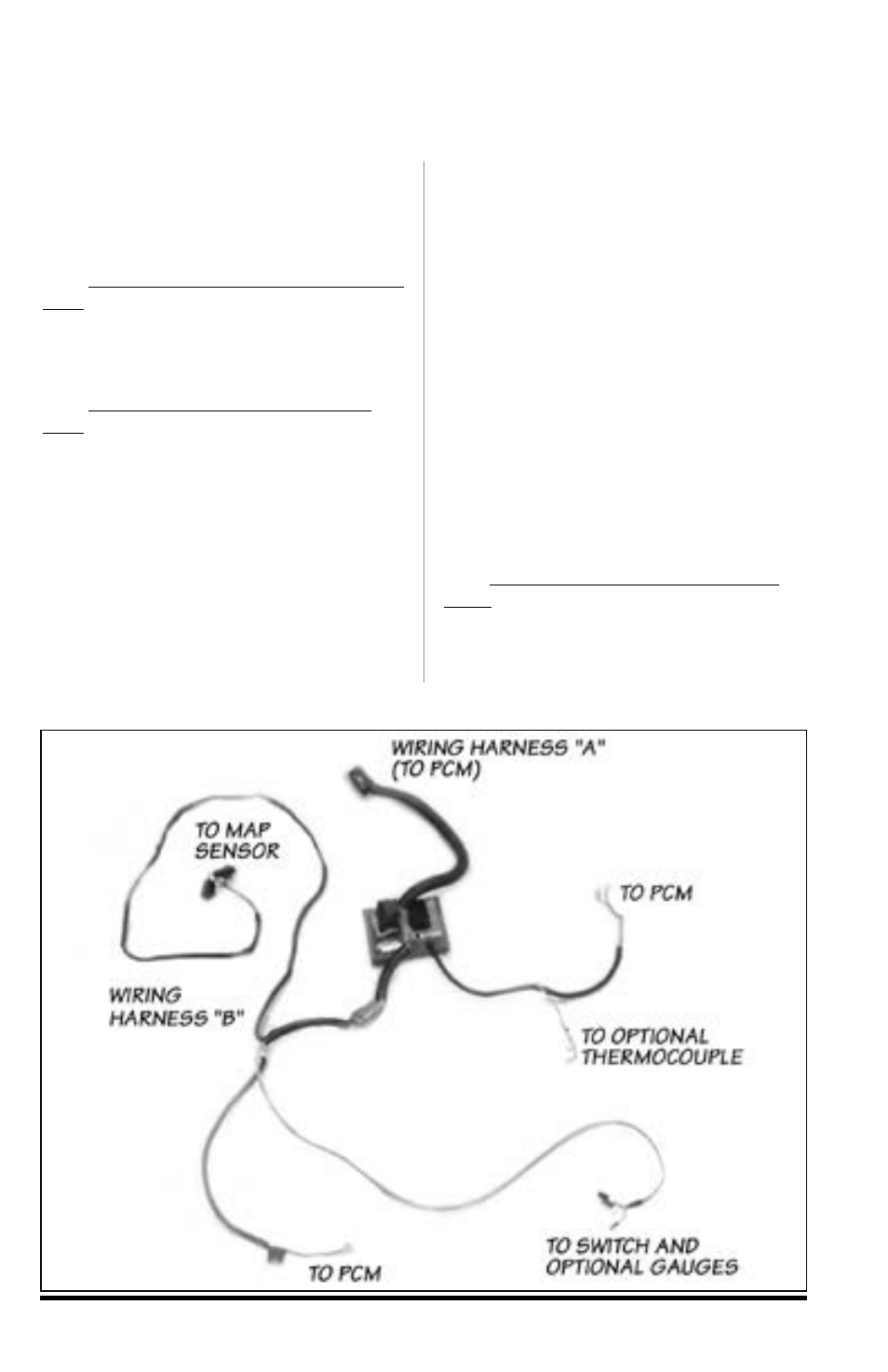

Figure 5 Six-Gun and supplied wiring harness
