8

96450 v.9.0

1.

Disconnect the battery ground

cables from each of the batteries.

Secure the cables so that they do not

come in contact with the battery posts

during the installation.

2.

Remove the (+) battery cable from

the driver side battery.

3.

Remove the driver side plastic

battery cover, as shown in Figure 1.

This is accomplished by depressing a

tab at the front and rear of the cover.

Be careful not to damage the

cover, as it will be re-installed.

4.

Remove the driver side battery hold

down clamp (8mm socket). Remove

the driver side battery.
WARNING: When lifting a battery,

excessive pressure on the end

walls could cause acid to spew

through the vent caps, resulting

in personal injury. Lift with a

battery carrier or with hands

on opposite corners. Failure to

follow these instructions may

result in personal injury.

5.

Locate the Powertrain control

Module (PcM) on the driver side of the

vehicle engine compartment

(see Figure 2).

6.

Disconnect the middle connector

from the PcM by opening the over-

center retaining clamp as shown in

Figure 2.
2003-04 model year vehicles: Route

the middle connector under the power

steering fluid reservoir.
2005-06 model year vehicles: Route

the middle connector in the most

direct path to the area near the fuse/

relay box.
Plug the connector into the connector

on the Six-Gun module labeled,

“VEHIcLE HARNESS”.

Section 1:

INSTALLATION OF WIRING HARNESS, CONNECTIONS and SIx-GUN

MODULE

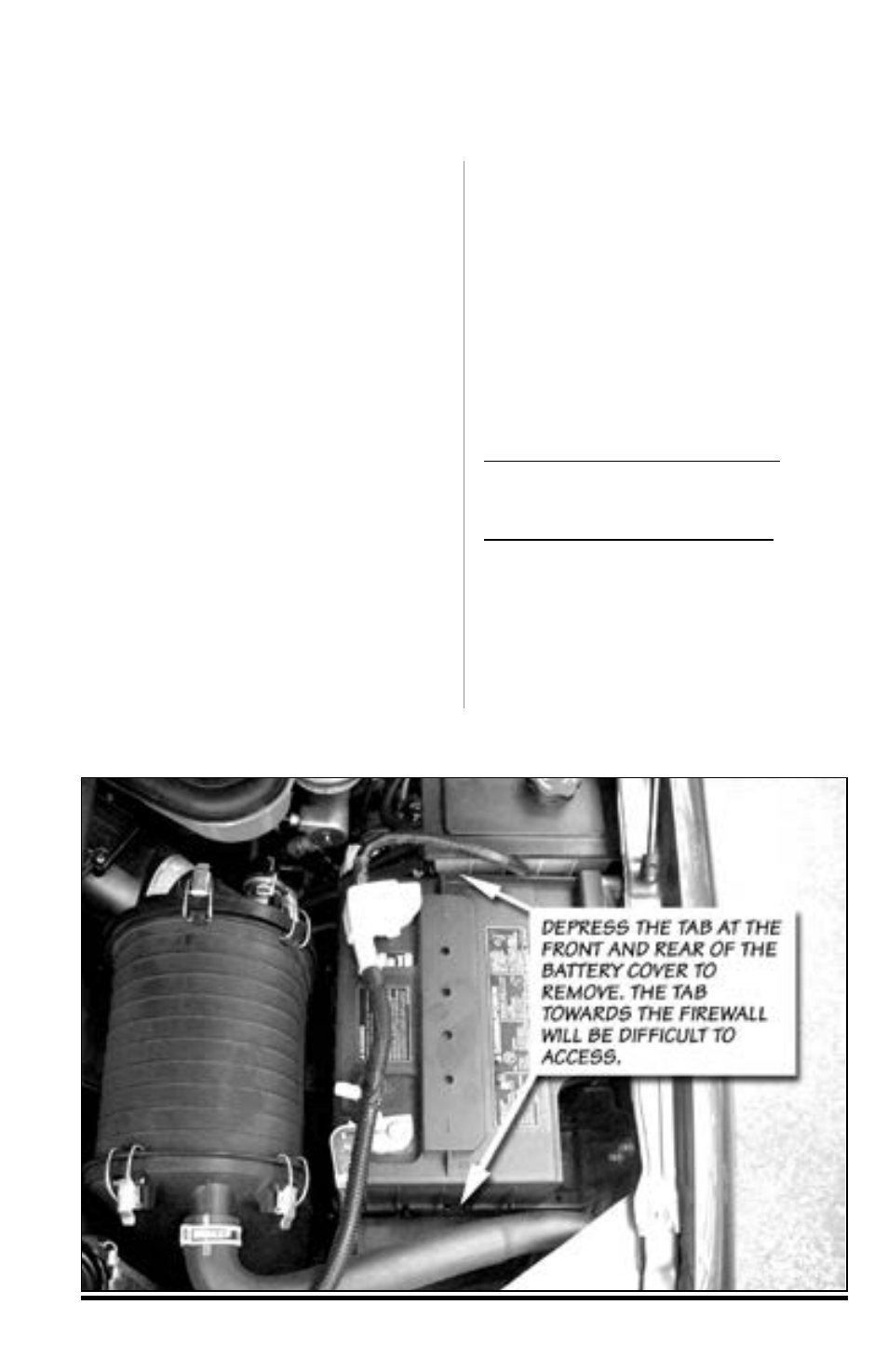

Figure 1 Removal of the battery box cover
