19. Using a 32mm socket, attach the upper end of the track bar to the new bracket in the upper hole for the 4” lift,

lower mounting hole for the 6” lift—see PHOTO 9. Using the factory hardware. Insert the bolt from the front
to the rear and hand tighten only, it will be tightened in a later step.

20. Using a 18mm socket and wrench, install the shock absorbers in the factory location, part # 650328 hydraulic/

650380 gas charged shock using hardware included in kit. Tighten the upper shock nut and lower bolt to 75 ft/
lbs.

22. Anti sway bar links will be addressed next. Note: Inspect the factory bar end links. If the links have traditional

rubber bushings and sleeves, replace the links with 94002002 LINK as described in the next step. If the links
have swivel ends proceed to the next step 23.

23. Insert bushings and sleeves, 12mm sleeve, in top eye, 1/2” sleeve in the bottom eye. Install the link to frame

mount using the original 12 mm bolt and nut. Torque to 60 ft lbs. Install the link to the body using the furnished
1/2” x 2 1/2” bolt and lock nut.

24. This step will be performed if the anti-sway bar links have swivel ends. Using a 13mm wrench, remove the

factory anti-sway bar frame brackets (where the upper end of the sway bar link attaches to the frame). Save
all the hardware for reuse. See PHOTO 10.

25. Using a 13mm wrench, remove the factory anti-sway bar frame brackets (where the upper end of the sway

bar link attaches to the frame). Save all the hardware for reuse. See PHOTO 11.

26. Reattach the stock bracket below the frame with the stock hardware as shown in Photo 12. Tighten using a

13mm socket.

27. Attach the new anti-sway bar drop brackets to the frame in the same location as the original brackets using

the supplied 1/2” x 1 1/2” bolts, washers / nuts and tighten using a 18mm socket / wrench. See Photo 13.

28. Using a 18mm socket, and 15mm wrench, attach the upper ends of the factory anti sway bar links to the new

brackets using the supplied 12mm x70mm bolt and 12 mm stover nut. Tighten to 37 ft/lbs. See PHOTO 13.

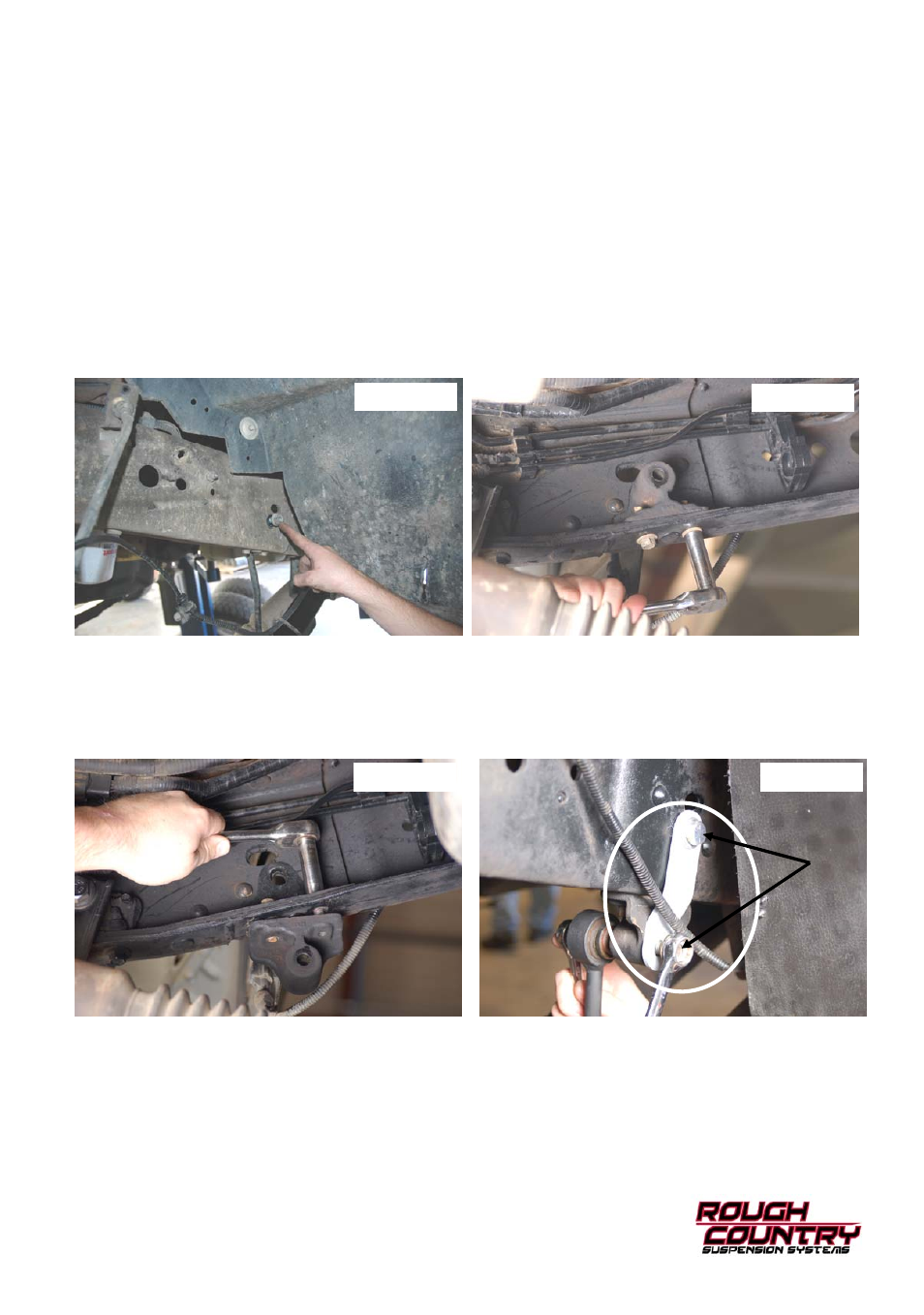

Photo 10

Photo 11

Photo 12

Photo 13
