REAR INSTALLATION INSTRUCTIONS
1. Chock front wheels and jack up the rear of the vehicle and support the vehicle with jack stands so that the rear
wheels are off the ground.
2. Remove the rear tires/wheels using a 19mm deep well socket.
3. Remove the upper shock bolt using a 16mm socket and wrench. Remove the lower shock bolt using a 18mm socket
and wrench and remove the factory shock. See Photo 6. Retain the lower shock hardware for reuse.
5. Using a 10mm wrench, unbolt the brake hose bracket at the frame. Retain hardware for later use.
6. Remove the track rod from the passenger side frame mount using a 21mm wrench. Retain the hardware for reuse. It
may be necessary to raise or lower to take the pressure off of the track rod bolt.
7. Push down on the axle to allow enough room for stock coil spring to be removed. Remove the stock coil spring.
8. Install the supplied 3/4” spring spacer on the top of the new coil spring (Shorter Coil) and install the new Rough
Country coil spring in the factory coil mount with the stock isolator installed above the new spacer. See Photo 7.
9. Locate the 4 sway bar link sleeves. Insert the sleeves into the sway bar link bushings.
10. Using the supplied .500-16 x 2.75” bolts, washers and nuts from 1681bag, install the sway bar links to the sway bar,
and axle mount., and tighten using a 13/16” socket and 7/8” wrench. See Photo 8 . Make sure the bolts are in-
stalled with the head of the bolt toward the tire as shown.
11. Install new bracket and spacer sleeve as shown in Photo 9 in the stock location. Secure with the supplied 14mm x
75mm hardware in the upper hole.

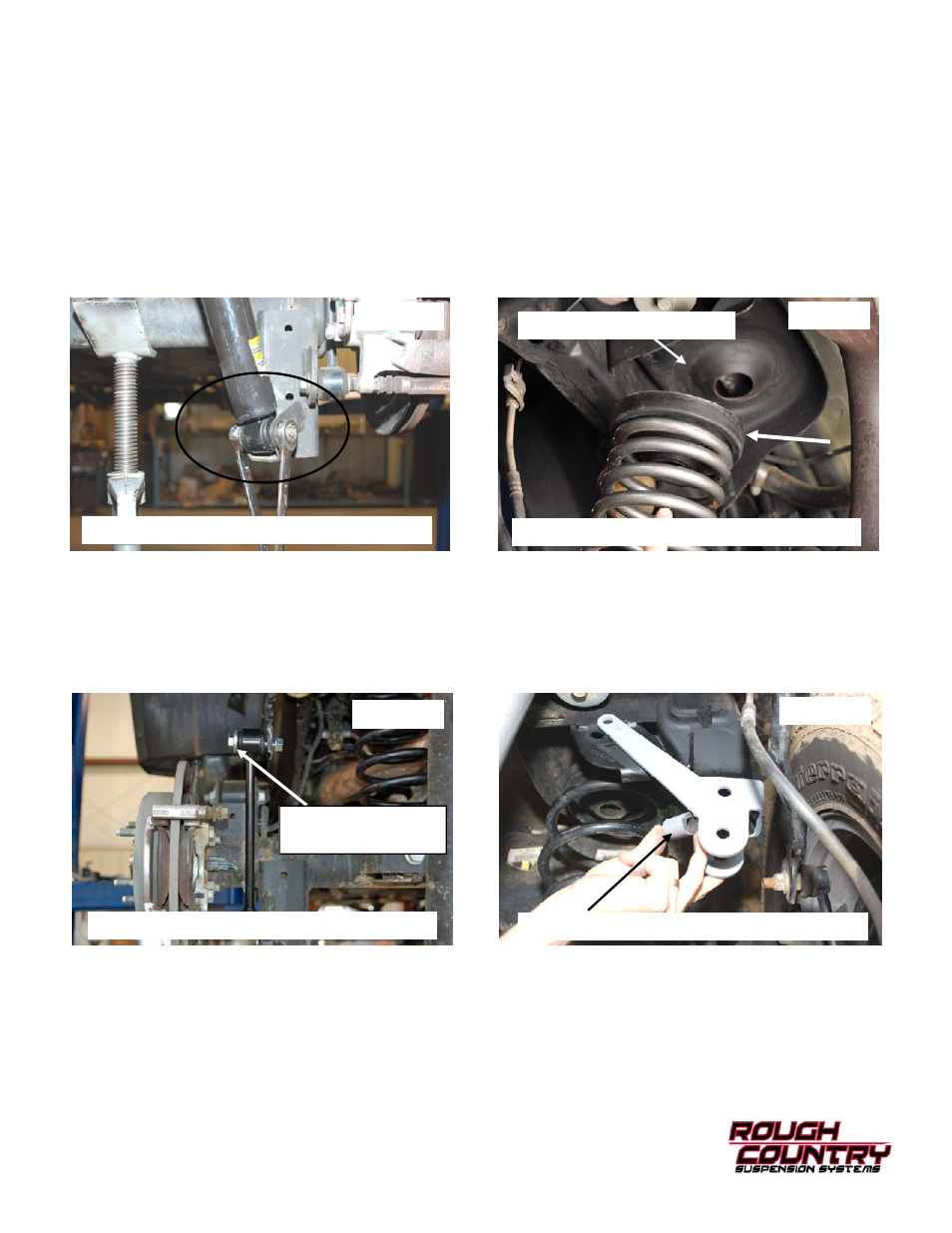

Photo 6 Photo 7
Remove the lower shock hardware Install the new coil and coil spacer
Photo 9
Install washers on
head of bolt
Photo 8 Photo 9
Install the sway bar links Install crush sleeve and bracket on frame
Stock isolator NOT shown
