7. Place the supplied coil spacer on the upper mount and reinstall
the coil spring on the spacer and on the axle.
8. Install coil spring clip back onto the lower coil spring seat.
9. Attach sway bar end links to sway bar and tighten.
10. Install new Rough Country shock absorbers.
11. Install wheels and tires.
12. Jack up the vehicle, remove the jack stands and lower the vehicle
to the ground.

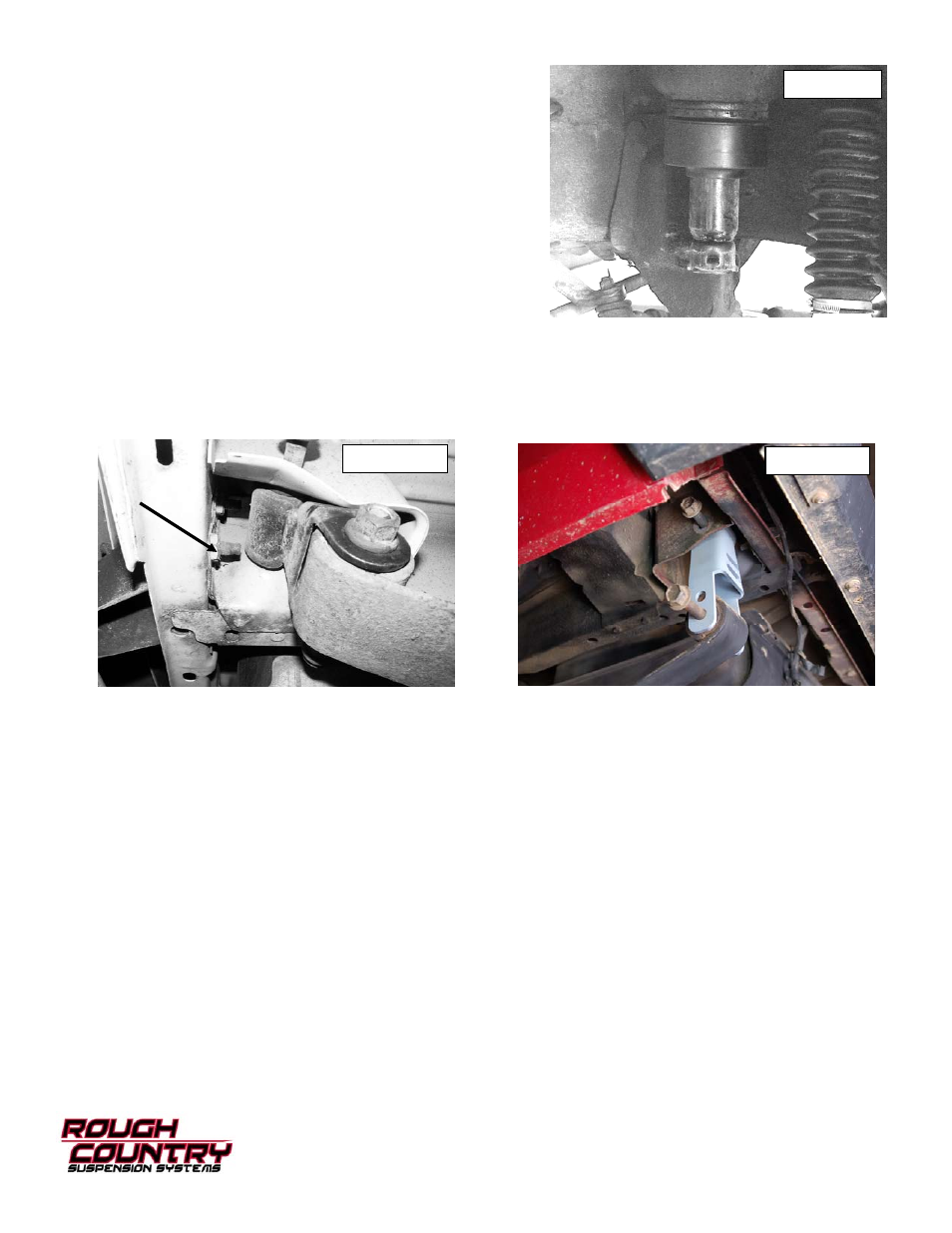

13. Photo #3 shows the caster adjustment on the lower control arms.
The caster will have to be adjusted to insure proper alignment.
LIFTED SHACKLE INSTALLATION INSTRUCTIONS
1. Remove the stock shackle from the frame mount using a 21mm wrench. Locate and either grind or cut off the excess
from the bolt pictured in Photo 4. This will allow the shackle to move rearward
2. Install the new Rough Country lifted shackle and secure with supplied 9/16” x 4” hardware in the top hole and the
14mm x 110mm in the bottom hole.. Do not fully tighten the hardware at this time. See Photo 5.
3. Install the new shocks with factory hardware. Torque the upper using a 13mm wrench and lower bolts using 3/4”
wrench to factory specs. Repeat for other side.
4. Install the tires and wheels. Jack up the vehicle and remove the jack stands. Lower the vehicle to the floor.
5. Torque the frame bolts, and shackle bolts to factory specs using a 21mm wrench.
6. Install the new Rough Country shock absorbers
7. Install the tires/wheels. Remove the jack stands and lower the vehicle to the ground.
8. Tighten factory hardware.
PHOTO 5 PHOTO 4
PHOTO 3
