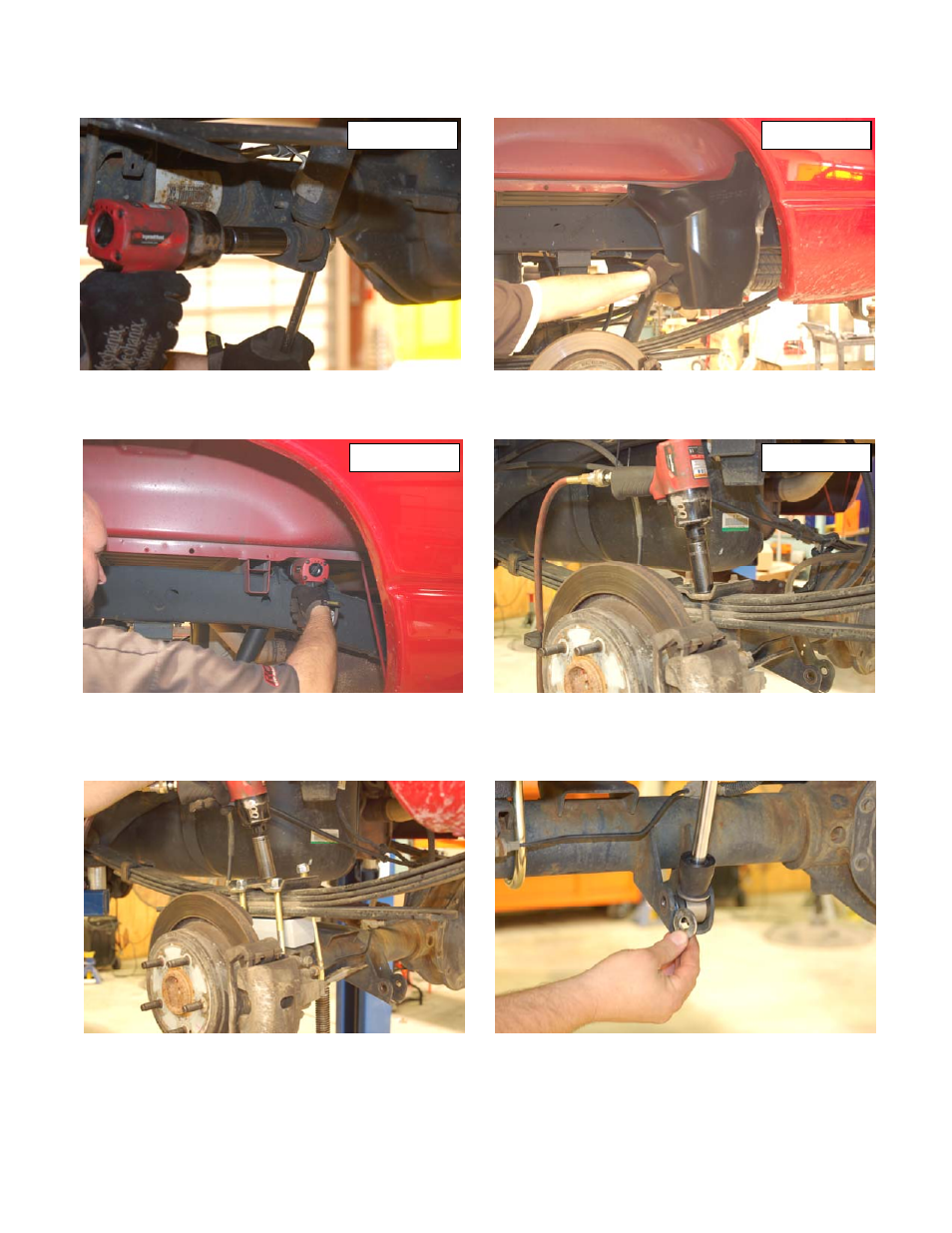

1. Chock the front tires and place the rear on jack stands. Lightly support the axle with a floor jack.
2. Remove the shocks from the axle using 21mm wrench form top and bottom bolts. See Photo 1.
3. On driver side remove splash shield using 8mm socket to gain access to upper shock bolt. See Photo 2.

4. After the inner fender is removed, remove the shock from the frame mount using a 21mm socket. See Photo 3.
5. Support rear end and remove u-bolts using 21mm socket. See Photo 4.
6. Slowly lower the axle to allow the lift block to be installed. Take care not to over extend the rear brake line.

7. Install new block and u-bolts as shown and tighten using 22m socket. See Photo 5. (4” Kit Pictured)
8. Install new shocks with stock hardware using supplied washer as shown in picture for top and bottom bolts. Tighten

using 21mm socket. See Photo 6.

9. Reinstall splash shield using 8mm

10. Install tires and wheels, jack up the vehicle, remove the jack stands and lower the vehicle to the ground.

REAR INSTALLATION INSTRUCTIONS

PHOTO 2

PHOTO 1

PHOTO 3

PHOTO 4
