Velleman KSR5 User Manual
Page 3
KSR5 VELLEMAN
3

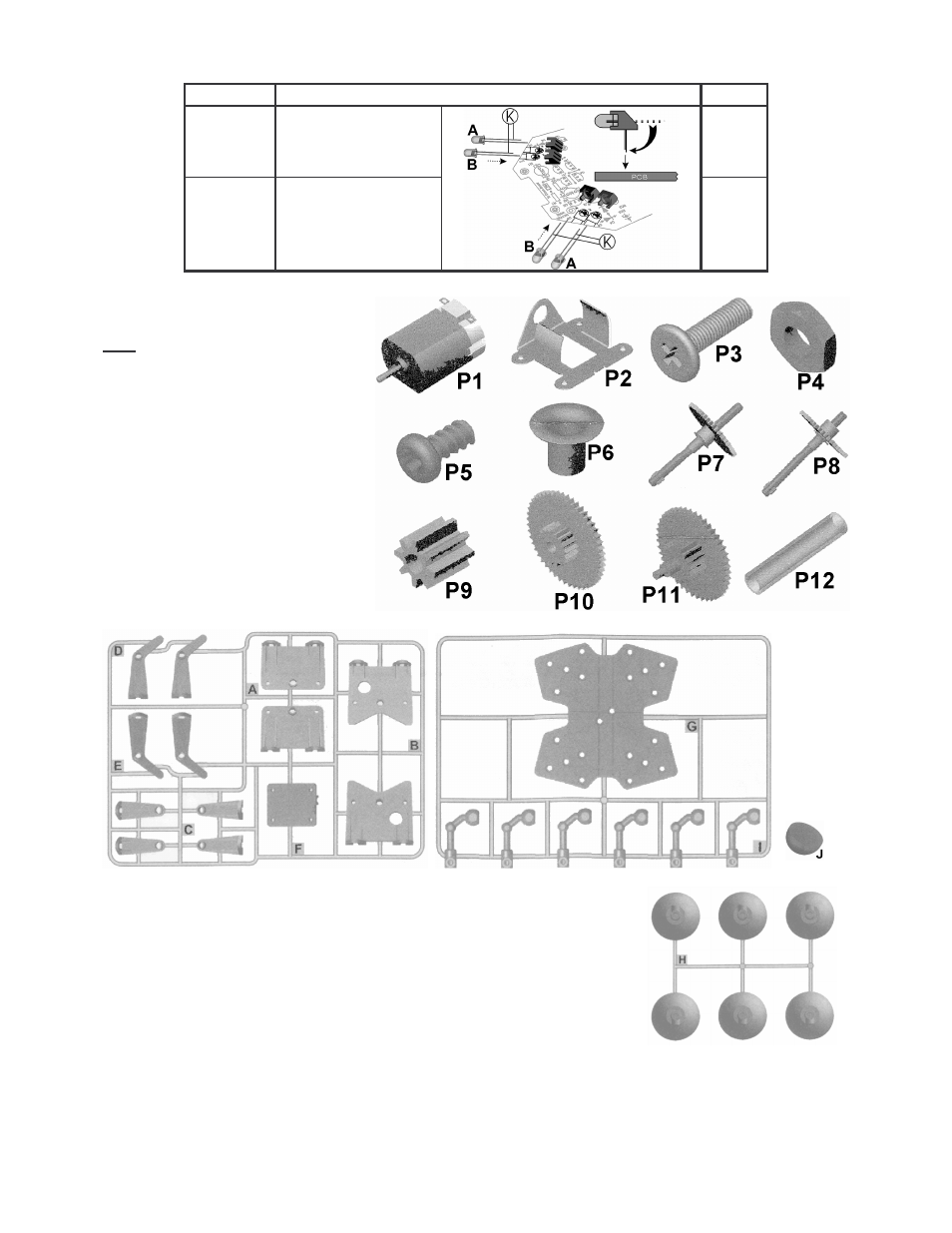

Mount the LEDs:
b) Gearbox Assembly
Parts
P1: motor x 2
P2: motor holder x 2
P3: screw (2x10mm) x 4
P4: nut (M2) x 4
P5: tapping screw (3x7mm) x 34
P6: eyelet x 6
P7: gear (44T+0) with shaft (green) x 2
P8: gear (44T+0) with shaft (orange) x 4
P9: pinion gear 8T (white) x 2
P10: gear 48/18T (white) x 2
P11: gear 44/18T (blue) x 4
P12: clear tube x 2
A: gear protection plates (2)
B: motor protection plates (2)
C: protection plates (4) for corner wheel/leg gears
D: gear brackets (2) for corner wheel/leg gears
E: gear brackets (2) for corner wheel/leg gears
F: motor mounting bracket (1)
G: top plate (1)
H: wheels (6)
I: legs (6)
J: rubber feet for legs (6)
Part ID
Description
Quant.
D5/10
LED 5mm (red) (A)
2
D6/9
LED 5mm (green) (B)
2
Fig. 4
Fig. 5
