Velleman KNS1 User Manual
Kns1 – tyrannomech, Fig.1

KNS1
- 1 -
VELLEMAN
KNS1 – TYRANNOMECH
1. Introduction & Characteristics
Dispose of this product in accordance with local and national disposal regulations.
Thank you for buying the KNS1! Read this manual carefully before bringing the KNS1 into use.
• Easy to build, no glue or soldering required.
• Dislodge pre-cut pieces when you need them ; not before! Sand any jagged edges before use (sandpaper included)
• The kit is powered by 2 AA-batteries (not included).
The kits of the KNS-series are supplied with prepunched boards, a gearbox, gears, shafts, a switch, a motor, a
battery holder and all necessary parts.

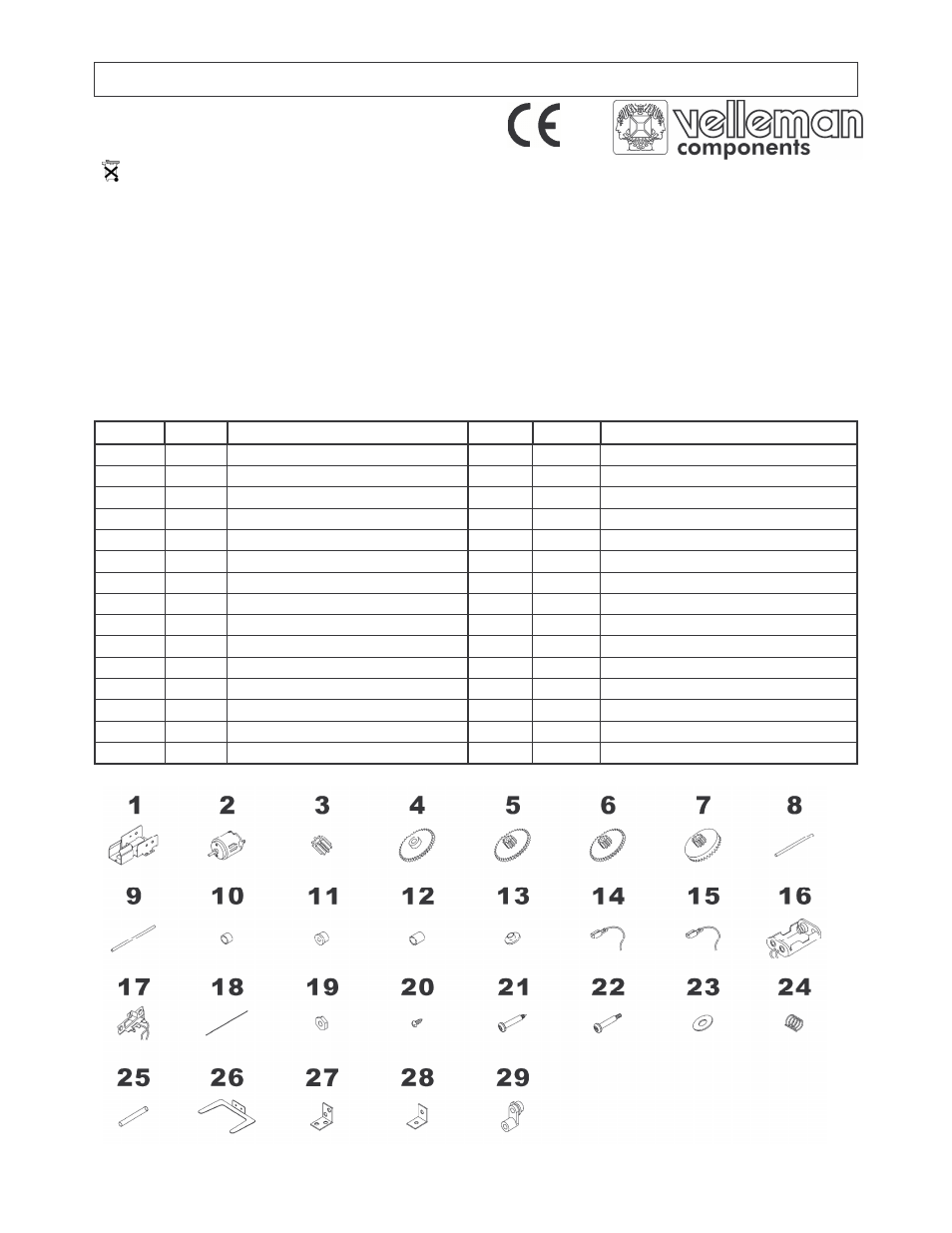

2. Parts List
Part n° Quant.
Description
Part n° Quant.
Description
1
1
gearbox
16
1
battery holder
2
1
motor 3Vdc
17
1
slide switch with wire
3
1
pinion gear 8T
18
2
wire (7cm)
4
1
gear 40T/0T (white)
19
2
nut M2
5
1
gear 40T/10T (red)
20
28
self-tapping screw (2 x 4mm)
6
1
gear 40T/10T (green)
21
4
self-tapping screw
7
1
face gear 36T/10T (white)
22
2
screw
8
1
metal shaft (3 x 52mm)
23
6
washer
9
1
metal shaft (2 x 40mm)
24
2
spring
10
2
nylon post (small)
25
3
PVC tube (15mm)
11
2
nylon pad
26
2
metal foot (U-shaped)
12
4
nylon post (large)
27
6
fixing plate (large)
13
6
nylon pad (Ø8mm)
28
2
fixing plate (small)
14
1
wire with terminal (yellow)
29
2
nylon connector
15
1
wire with terminal (green)
Fig.1
