KSR4 – "ESCAPE" ROBOT KIT
1. Introduction & Characteristics
Thank you for buying the KSR4! Read this manual carefully before bringing the device into use.
The KSR4 works just like an A.I. robot. It never fails to find its way out of a maze. The Escape Robot uses 3 infrared
emitting diodes and 1 infrared receiving module to send and receive signals and detect obstacles. The Escape
Robot's built-in microprocessor enables it to "think" on its own: it gathers and processes information about its
environment, which enables it to avoid any obstacle. The Escape Robot moves around on 6 legs.
The Kit comes complete with 2 sets of differently designed legs, which move in their own distinct way. Fun and
excitement are guaranteed.
The KSR4 requires four 1.5Vdc AAA-batteries (not included).
Apart from the batteries, you will also need a pair of long-nose pliers, a soldering iron, a diagonal cutter, a
screwdriver, a soldering iron and a length of solder wire.
2. Electronic Parts List
1. resistor: 4x 10Ω (brown/black/black/gold)
2x 16Ω (brown/blue/black/gold)
1x 39Ω (orange/white/black/gold)
1x 100Ω (brown/black/brown/gold)
5x 1K (brown/black/red/gold)
1x 10K (brown/black/orange/gold)
4x 22K (red/red/orange/gold)
2. ceramic capacitor: 2x type 30, 1x type 103, 3x type 104, 1x type 224
3. electrolytic capacitor 100uf (1x)
4. IR LED 5mm, clear (3x)
5. LED 5mm, red (1x)
6. buzzer (1x)
7. Zener diode 3.9V (1x)
8. oscillator 4MHz (1x)
9. transistor: 7x 8050, 4x 8550, 1x 9013, 4x C945
10. LED holder (3x)
11. IC: 1 x type 78P156 (1602BP)
12. IC socket (1x)
13. Battery connector (1x)
14. IR receiving module (1x)
15. battery holder (1x)
16. pin (4x)
17. slide switch (1 x)
18. connector with wire: 1 x yellow, 1 x green,
1 x orange, 1 x blue
19. PCB (1 x)
3. Mechanical Parts List
1. 2x screw P13 (3x6mm)
2. 4x screw P14 (3x6mm)
3. 2x hosepipe P18
4. 2x nut P16 (M3)
5. 2x hex post P15 (10mm)
6. 1x body P17

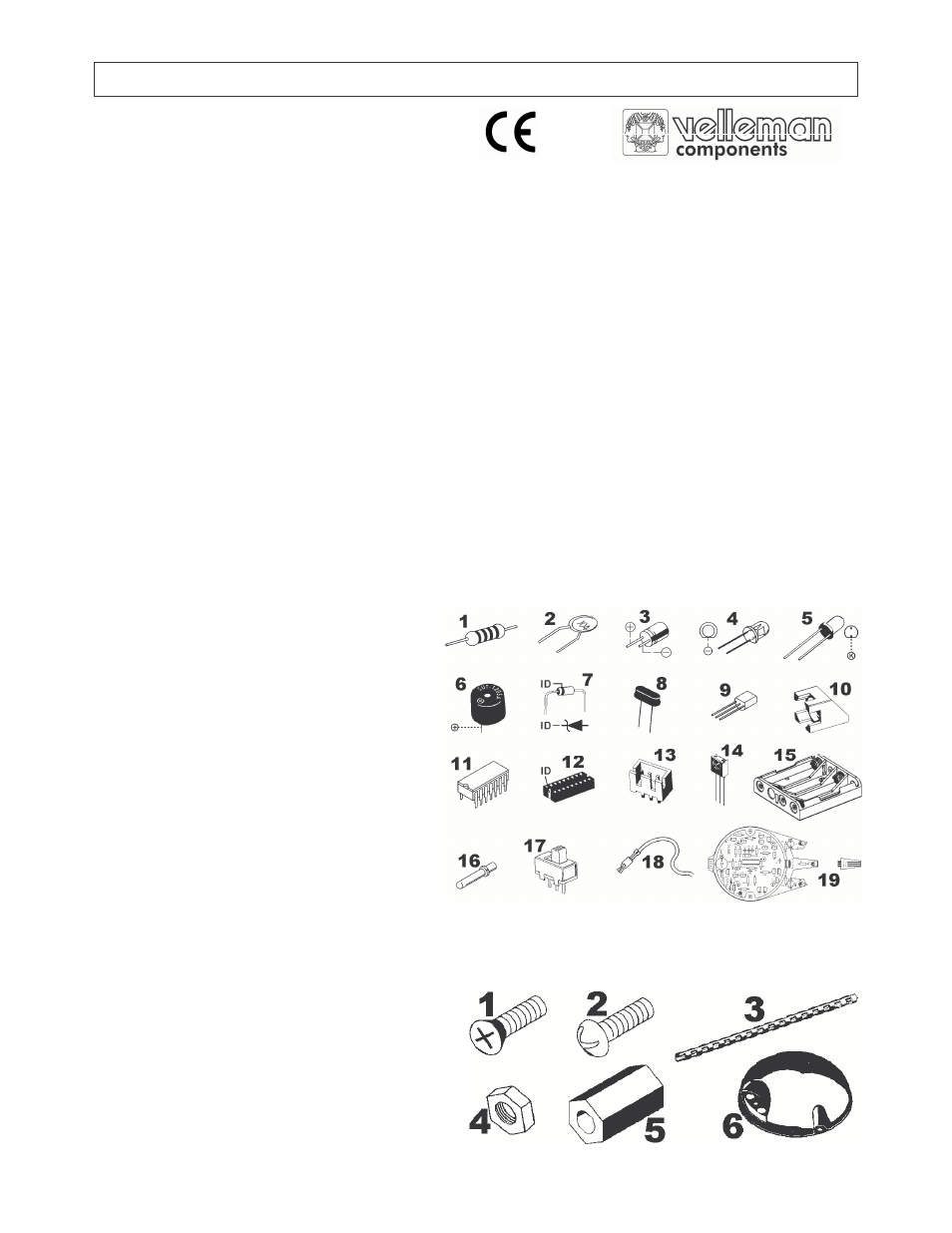

Fig. 1
