c) Mechanical Assembly

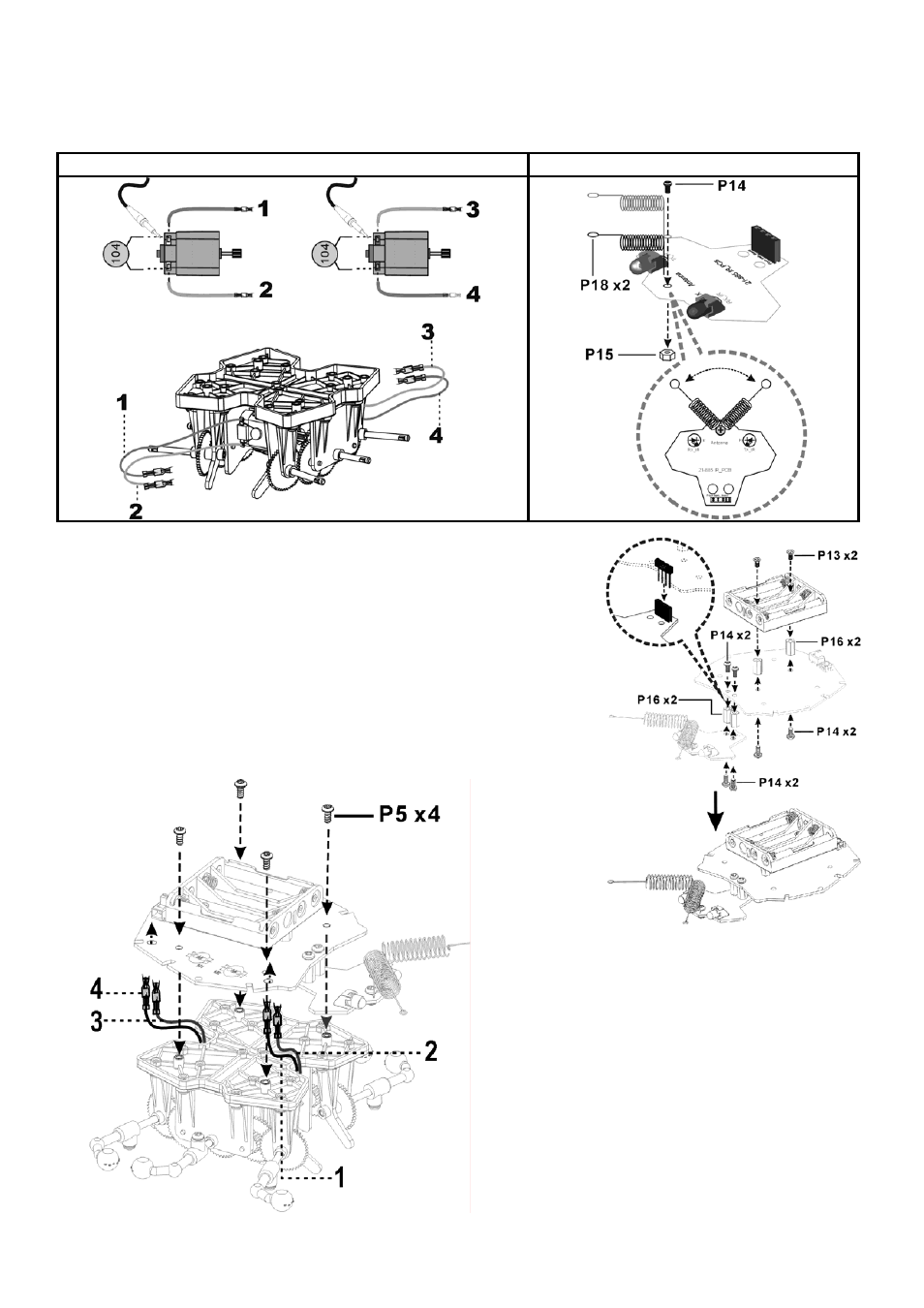

1. Mount the wires and the ceramic capacitors type 104 on the motors and fix the antennae on the small PCB.
The colour code used for the wires is: 1=green, 2=yellow, 3=orange, 4=blue
wires / capacitors antennae
Fig. 7
Fig. 6
2. Attach the battery holder and the small PCB onto the main PCB (see
figure 8). Connect the battery holder to the battery connector (BAT, see
"4.a) PCB assembly").
Fig. 8
3. Fix the PCB to the gearbox and put the wires through the holes at the
right side of the device.
Fig. 9
