Milton CAT 3516C 2000 kW 2500 kVA 60 Hz 1800 rpm 480 Volts Performance Data2 User Manual
Page 5
Selected Model
Engine: 3516
Generator Frame: 824
Genset Rating (kW): 2000.0 Line Voltage: 480
Fuel: Diesel
Generator Arrangement: 2628148 Genset Rating (kVA): 2500.0 Phase Voltage: 277
Frequency: 60
Excitation Type: Permanent Magnet Pwr. Factor: 0.8
Rated Current: 3007.0
Duty: STANDBY Connection: SERIES STAR
Application: EPG
Status: Current
Version: 38699 /38604 /38580 /4937

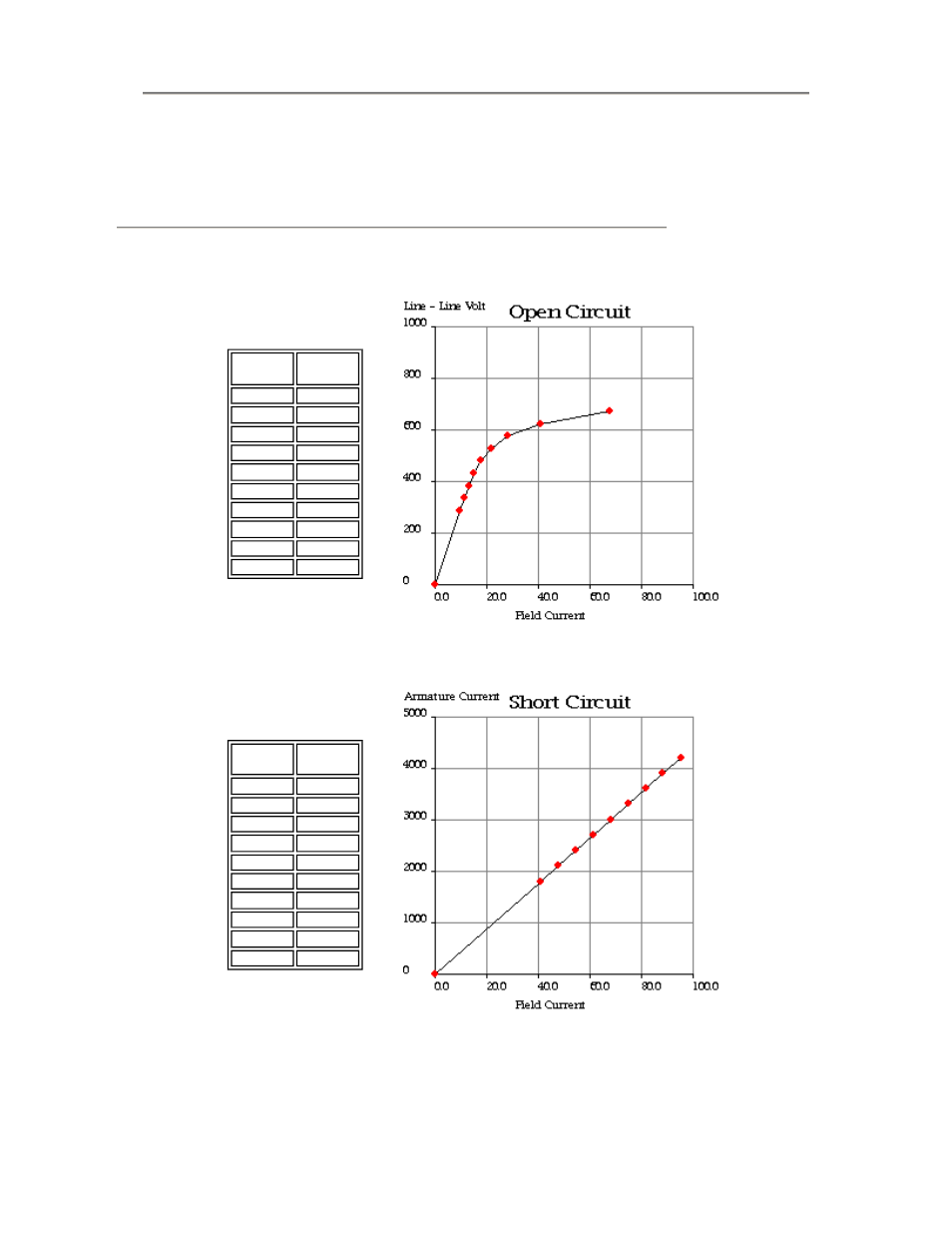

Generator Output Characteristic Curves
Open Circuit Curve
Field
Current
Line -
Line Volt
0.0
0
9.6
288
11.2
336
13.0
384
15.1
432
17.7
480
21.6
528
28.3
576
41.1
624
67.7
672
Short Circuit Curve
Field
Current
Armature
Current
0.0
0
40.8
1,804
47.6
2,105
54.4
2,406
61.2
2,706
68.0
3,007
74.8
3,308
81.6
3,608
88.4
3,909
95.3
4,210
Page 5 of 10
Caterpillar Generator Data
05/09/2006
http://tmiweb.cat.com/tmi/servlet/cat.edis.tmiweb.gui.TMIDirector?Action=buildtab&tab...
