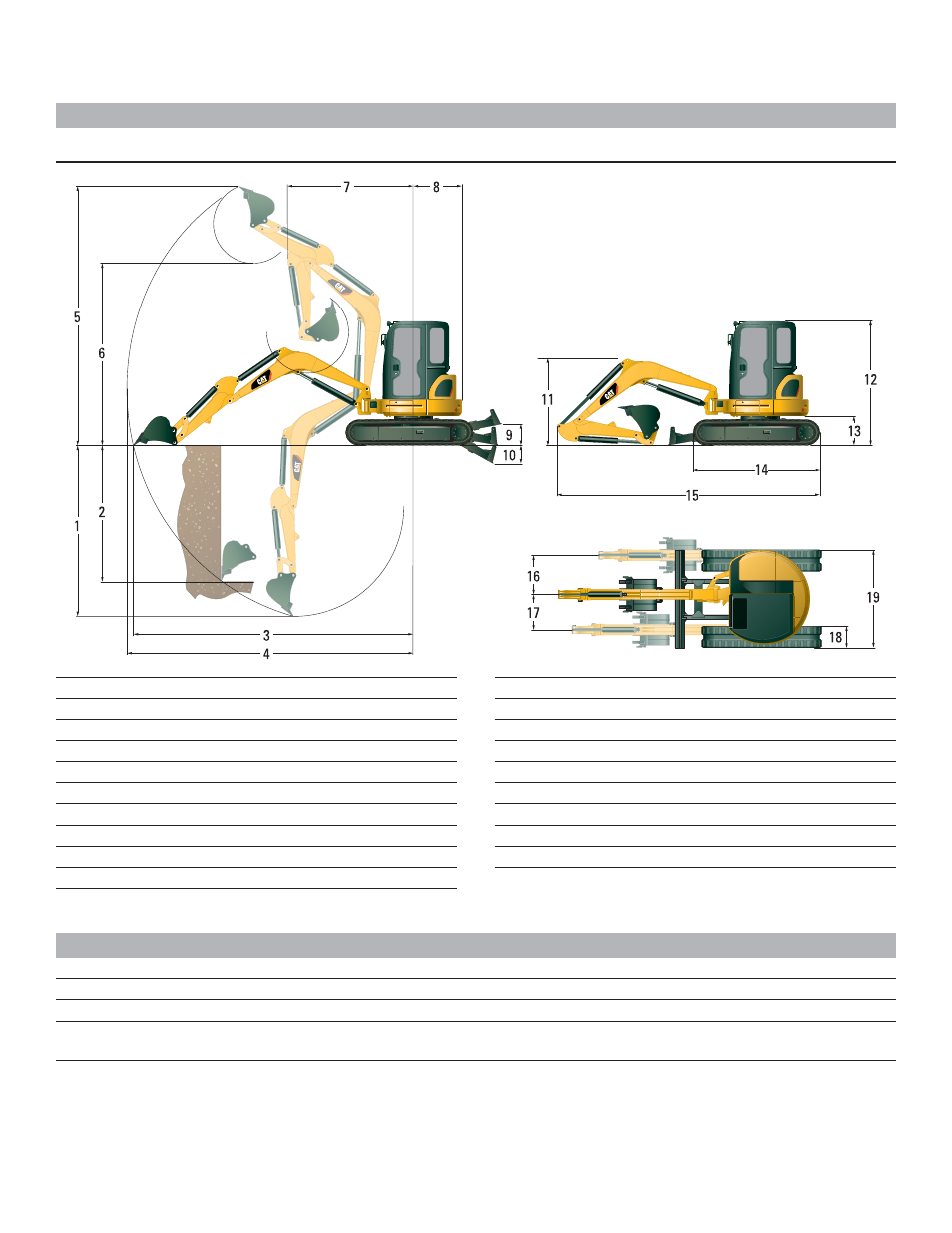

305.5E CR Dimensions
Standard Stick
Long Stick
Standard Stick
Long Stick
1
3470 mm
11'4"
3870 mm
12'8"
11
1740 mm
5'8"
2150 mm
6'11"
2
2330 mm
7'8"
2730 mm
9'0"
12
2550 mm
8'4"
2550 mm
8'4"
3
5630 mm
18'6"
6020 mm
19'9"
13
615 mm
2'0"
615 mm
2'0"
4
5790 mm
19'0"
6170 mm
20'3"
14
2580 mm
8'6"
2580 mm
8'6"
5
5330 mm
17'6"
5590 mm
18'4"
15
5330 mm
17'6"
5460 mm
17'10"
6
3820 mm
12'7"
4080 mm
13'4"
16
785 mm
2'7"
785 mm
2'7"
7
2400 mm
7'10"
2530 mm
8'3"
17
695 mm
2'3"
695 mm
2'3"
8
1130 mm
3'8"
1130 mm
3'8"
18
400 mm
1'4"
400 mm
1'4"
9
405 mm
1'4"
405 mm
1'4"
19
1980 mm
6'6"
1980 mm
6'6"
10
555 mm
1'10"
555 mm
1'10"
305.5E CR Lift Capacities at Ground Level*
Lift Point Radius
3000 mm (9'8")
4500 mm (14'9")
Front
Side
Front
Side
Blade Down
kg
2590
1290
1380
690
lb
5,710
2,844
3,042
1,521
Blade Up
kg
1550
1150
820
620
lb
3,417
2,535
1,808
1,367
* The above loads are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity
or 75% of tipping capacity. The excavator bucket weight is not included on this chart. Lifting capacities are for standard stick.
