303.5E CR, 304E CR, 305E CR, 305.5E CR Specifications

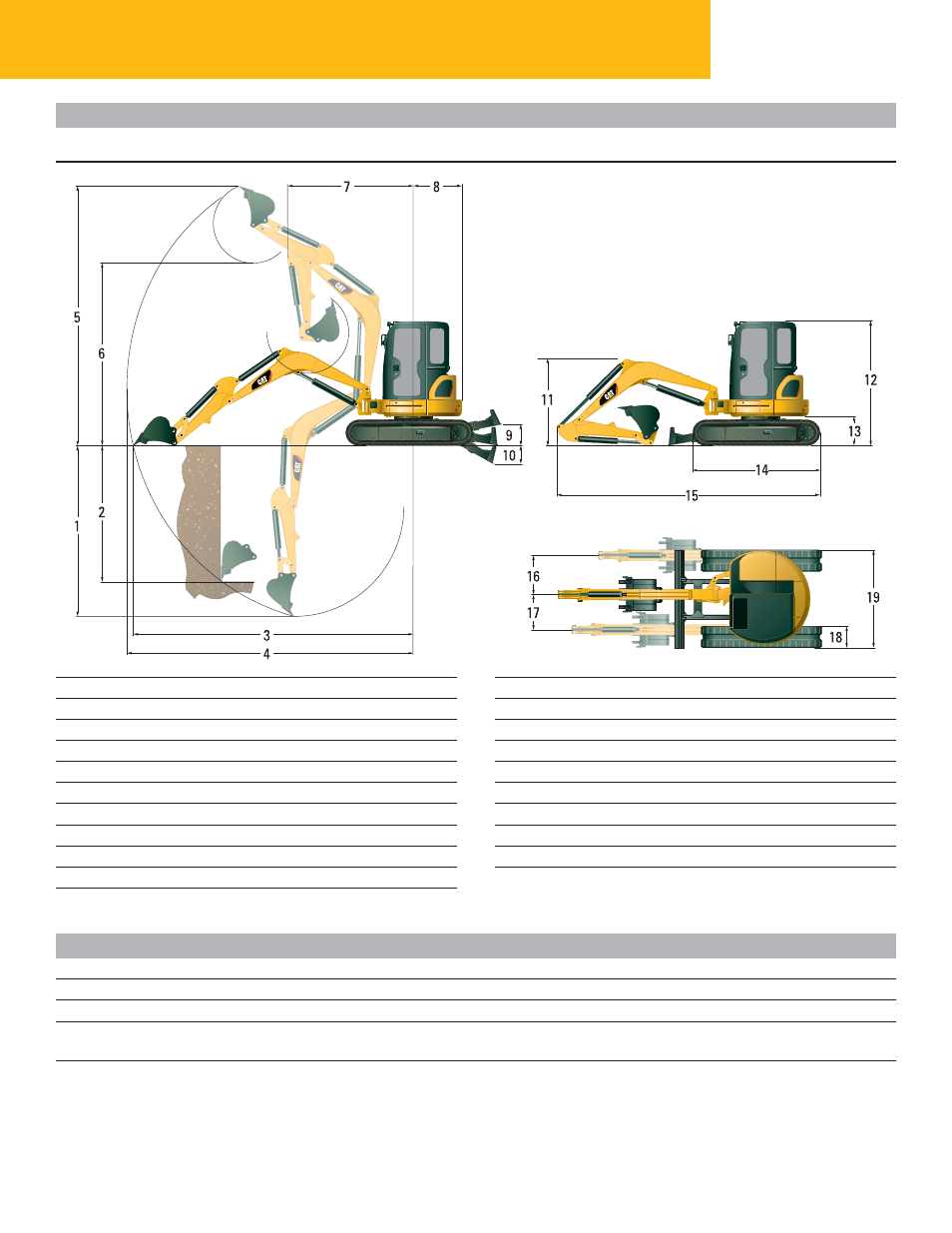

303.5E CR Dimensions
Standard Stick
Long Stick
Standard Stick
Long Stick
1
2880 mm
9'6"
3180 mm
10'4"
11
1420 mm
4'8"
1650 mm
5'4"
2
2320 mm
7'8"
2470 mm
8'2"
12
2500 mm
8'2"
2500 mm
8'2"
3
5060 mm
16'8"
5320 mm
17'6"
13
565 mm
1'10"
565 mm
1'10"
4
5200 mm
17'1"
5440 mm
17'10"
14
2220 mm
7'3"
2220 mm
7'3"
5
4920 mm
16'2"
5030 mm
16'6"
15
4730 mm
15'6"
4790 mm
15'9"
6
3520 mm
11'6"
3640 mm
11'11"
16
765 mm
2'6"
765 mm
2'6"
7
2060 mm
6'9"
2180 mm
7'2"
17
670 mm
2'2"
670 mm
2'2"
8
890 mm
2'11"
890 mm
2'11"
18
300 mm
1'0"
300 mm
1'0"
9
400 mm
1'4"
400 mm
1'4"
19
1780 mm
5'10"
1780 mm
5'10"
10
470 mm
1'7"
470 mm
1'7"
303.5E CR Lift Capacities at Ground Level*
Lift Point Radius
3000 mm (9'8")
4000 mm (13'1")
Front
Side
Front
Side
Blade Down
kg
1370
740
880
470
lb
2,940
1,590
1,890
1,010
Blade Up
kg
770
680
490
440
lb
1,698
1,499
1,080
970
* The above loads are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity
or 75% of tipping capacity. The excavator bucket weight is not included on this chart. Lifting capacities are for standard stick.
