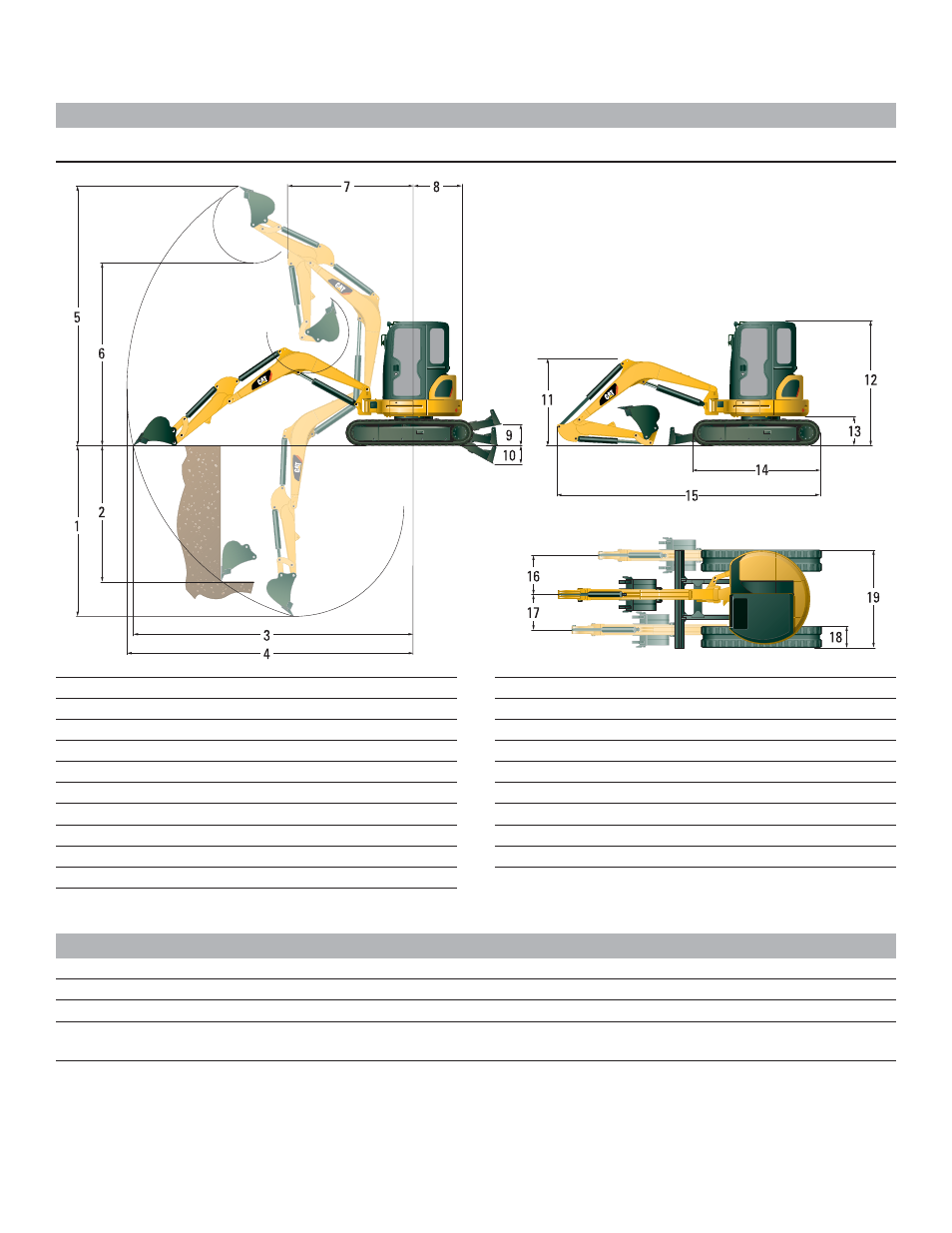

304E CR Dimensions
Standard Stick Long Stick Standard Stick Long Stick
1 3130 mm 10'3" 3430 mm 11'3" 11 1480 mm 4'10" 1770 mm 5'9"
2 2420 mm 8'0" 2560 mm 8'5" 12 2500 mm 8'2" 2500 mm 8'2"
3 5220 mm 17'1" 5470 mm 18'0" 13 565 mm 1'10" 565 mm 1'10"
4 5350 mm 17'7" 5590 mm 18'4" 14 2220 mm 7'3" 2220 mm 7'3"
5 4980 mm 16'5" 5070 mm 16'8" 15 4820 mm 15'10" 4930 mm 16'2"
6 3590 mm 11'9" 3690 mm 12'1" 16 735 mm 2'5" 735 mm 2'5"
7 2110 mm 6'11" 2220 mm 7'3" 17 670 mm 2'2" 670 mm 2'2"
8 975 mm 3'2" 975 mm 3'2" 18 350 mm 1'1" 350 mm 1'1"
9 400 mm 1'4" 400 mm 1'4" 19 1950 mm 6'5" 1950 mm 6'5"
10 470 mm 1'7" 470 mm 1'7"
304E CR Lift Capacities at Ground Level*
Lift Point Radius 3000 mm (9'8") 4500 mm (14'9")
Front Side Front Side
Blade Down kg 1610 920 1040 590
lb 3,549 2,028 2,292 1,301
Blade Up kg 830 830 530 530
lb 1,830 1,830 1,168 1,168
* The above loads are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity
or 75% of tipping capacity. The excavator bucket weight is not included on this chart. Lifting capacities are for standard stick.
17
