Milton CAT 259B Series3 - Manual (Page 13)

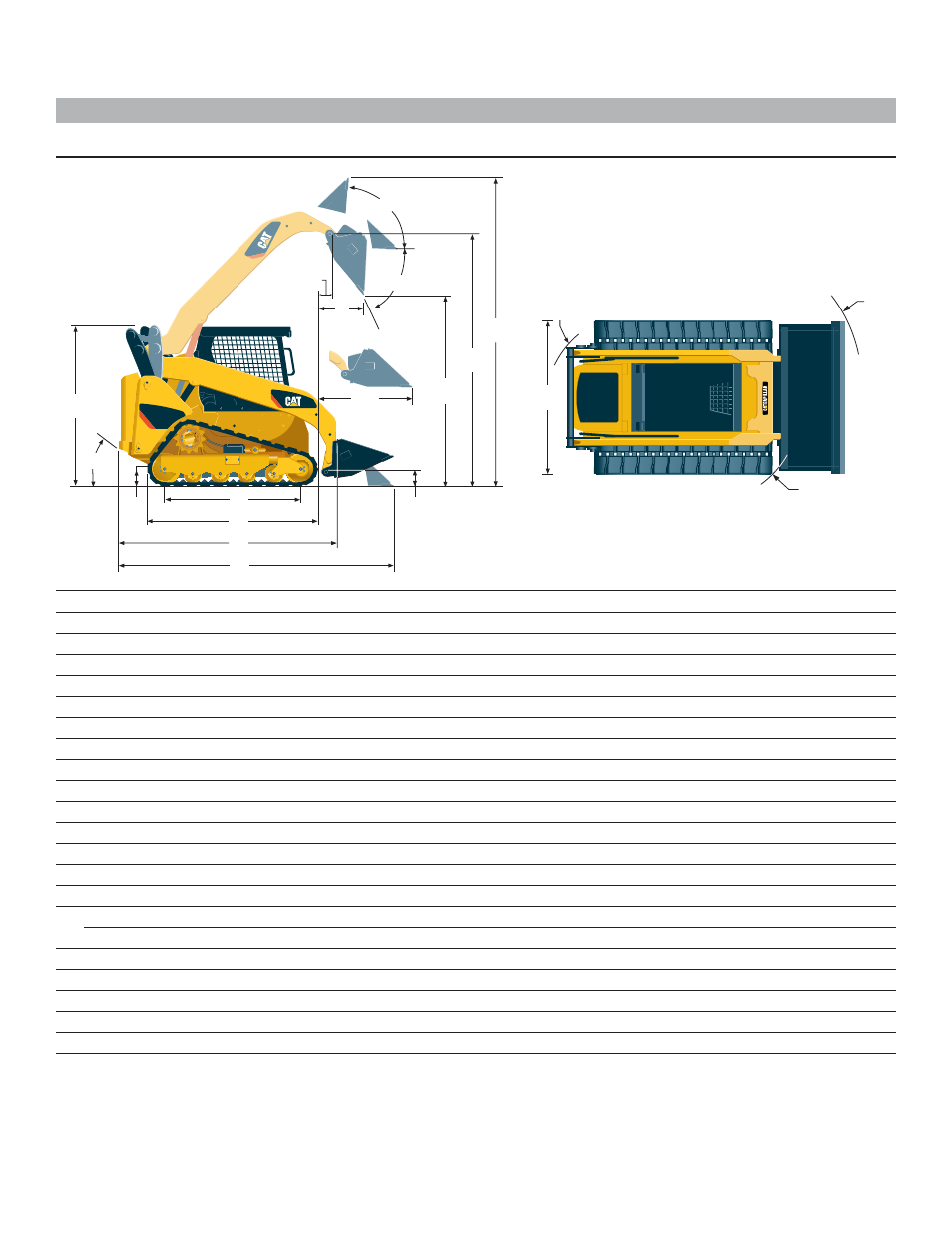

Dimensions
14
15
5
1
2
3
4
8
10
7
6
11
9
13
19
18
12
20
16
17
259B Series 3
mm in
1 Length of Track on Ground 1495 59
2 Overall Length of Track 1995 79
3 Length without Bucket 2722 107
4 Length with Bucket on Ground 3432 135
5 Height to Top of Cab 1986 78
6 Maximum Overall Height 3872 152
7 Bucket Pin Height at Maximum Lift 3046 120
8 Bucket Pin Height at Carry Position 195 8
9 Reach at Maximum Lift and Dump 740 29
10 Clearance at Maximum Lift and Dump 2243 88
11 Ground Clearance 222 9
12 Departure Angle 35°
13 Maximum Dump Angle 49.5°
14 Vehicle Width (320 mm/12.6 in tracks) 1676 66
Vehicle Width (400 mm/15.7 in tracks) 1755 69
15 Turning Radius from Center – Machine Rear 1471 58
16 Turning Radius from Center – Coupler 1393 55
17 Turning Radius from Center – Bucket 2174 86
18 Maximum Reach with Arms Parallel to Ground 1338 53
19 Rack Back Angle at Maximum Height 87°
20 Bucket Pin Reach at Maximum Lift 309 12.1
