MP950003
Series 820
SPRING ISOLATORS
For Seismic Zone 2
Applications
CATALOG NO. 94A-867-F
11 Cross Avenue
South Amboy, NJ 08879
Tel: (732)721-6200 Fax: (732)721-5005
Email: [email protected]
Website: www.acemount.com
Seismic Zone 2 Capability: The housings and anchor bolts are optimally designed for seismic zone 2
applications.
Superior Isolation Efficiency: Series "820" spring isolators consist of welded housings and 1 inch
deflection spring elements to provide excellent isolation of vibration over a wide frequency range.
Lateral Stability: Free-standing springs are laterally stable and designed to provide 50% overload capacity.
Vertical Limit Stops: Adjustable vertical limit stops control vertical and lateral movement of isolated
equipment due to load change, and lateral seismic load.
Easy To Install: Built-in leveling bolt eliminates shimming in all applications, and save installation costs.
Effective Noise Reduction: The resilient washers under the springs effectively interrupt structure-borne
noise transmission paths to prevent noise amplifications caused by sounding-board effect. The resilient
washers replace the neoprene base pad to allow solid connections of anchor bolts and base plate.

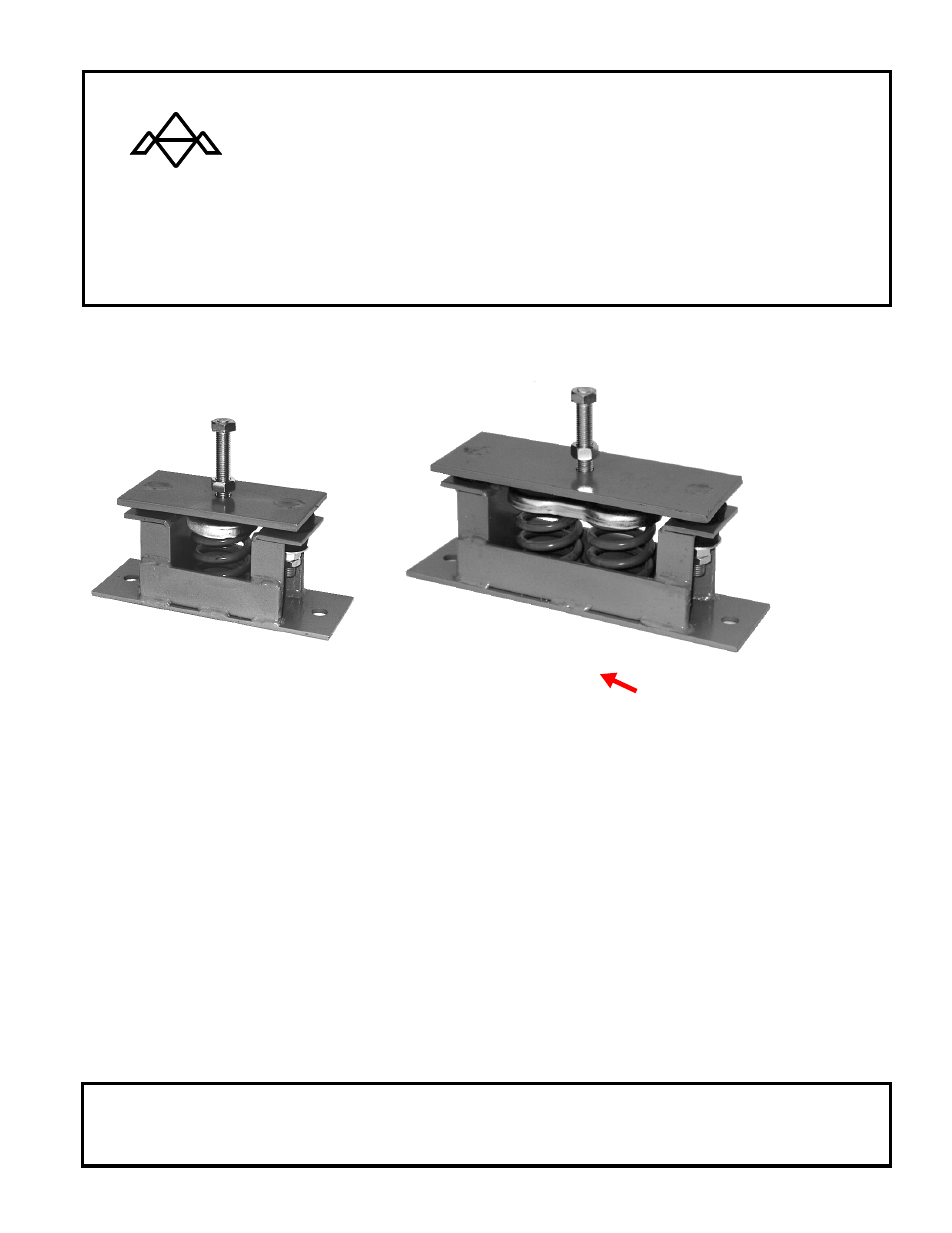

Type "822"
Type "821"
Material Specifications
Housings: A-36 steel
Threaded Parts: grade 5 steel
Springs: ASTM-229, oil tempered wire
Elastomer: neoprene rubber
Made in USA
