904H Compact Wheel Loader Specifications

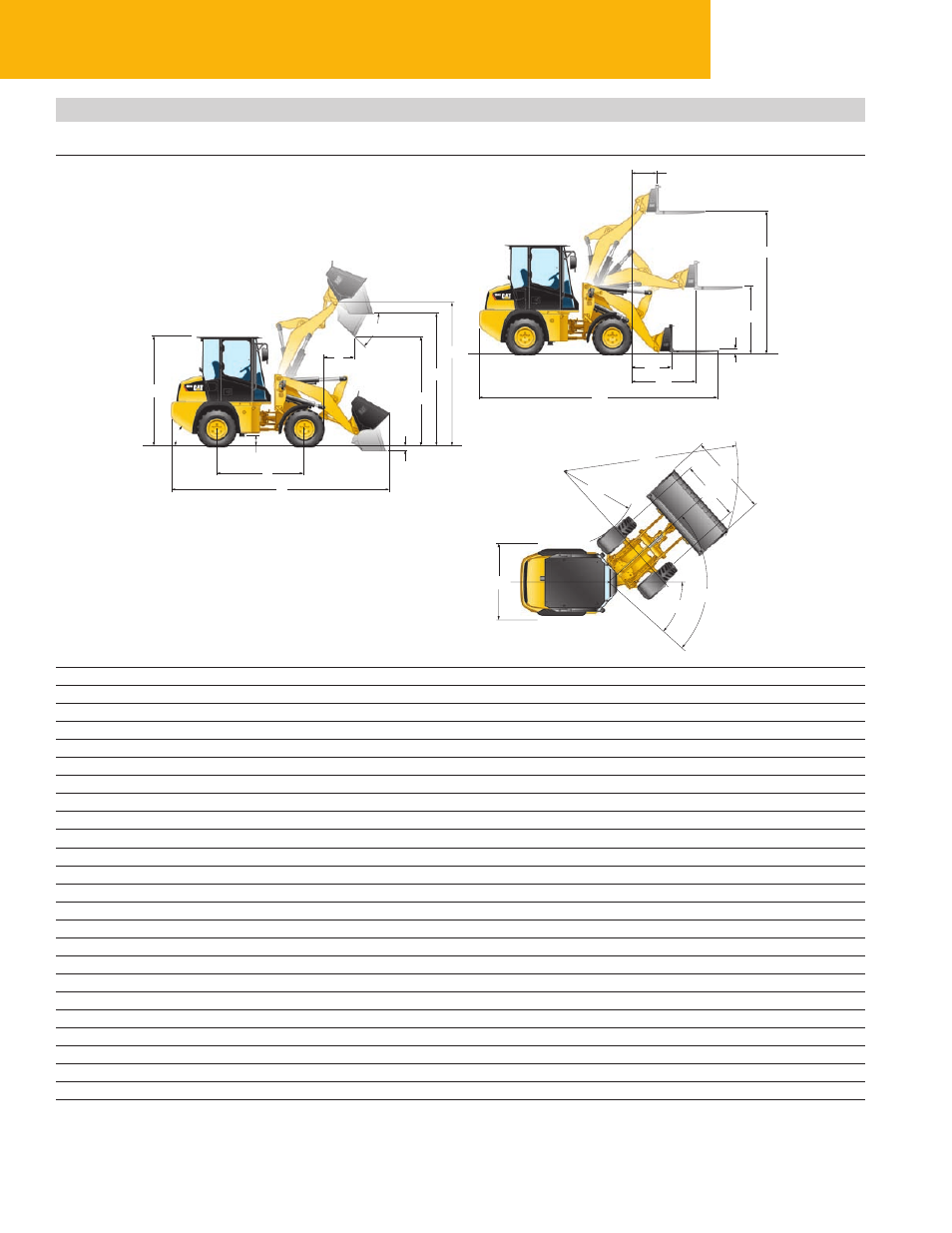

Dimensions
All dimensions are approximate. Dimensions may vary with bucket. Refer to Operating Specifications.
1 Cab Height 2390 mm 7 ft 10 in
2 Ground Clearance 245 mm 9.6 in
3 Wheelbase 1900 mm 6 ft 3 in
4 Overall Length with Bucket 4695 mm 15 ft 5 in
5 Reach at Maximum Dump Height 665 mm 2 ft 2 in
6 Dig Depth 90 mm 3.6 in
7 Maximum Dump Height 2380 mm 7 ft 10 in
8 Load Over Height 2885 mm 9 ft 6 in
9 Hinge Pin at Maximum Height 3110 mm 10 ft 2 in
10 Departure Angle (degrees) 35°
11 Overall Length with Forks 5250 mm 17 ft 3 in
12 Reach at Ground Level 855 mm 2 ft 10 in
13 Maximum Reach 1380 mm 4 ft 6 in
14 Fork Depth Above Ground 95 mm 3.7 in
15 Fork Height at Maximum Reach 1450 mm 4 ft 9 in
16 Maximum Fork Height 3075 mm 10 ft 1 in
17 Fork Reach at Maximum Height 560 mm 1 ft 10 in
18 Turning Radius Over Bucket 3850 mm 12 ft 8 in
19 Turning Radius Inside Tire 1675 mm 5 ft 6 in
20 Width Over Bucket 1780 mm 5 ft 10 in
21 Tire Gauge 1330 mm 4 ft 4 in
22 Machine Width 1645 mm 5 ft 5 in
23 Articulation Angle 42°
24 Steering Angle – Left/Right 84°
25 Dump Angle at Maximum Height 44°
16
15
14
13
11
12
17
24
21
23
19
18
20
22
25
10
9
8
7
5
1
6
4
3
2
