E M C P 3
A N N U N C I A T O R
LED COLOR SCHEME
Each pair of LED’s on the Annunciator consists of
two of three colors: green, yellow and red, which
allows for custom configuration of status, warning
and shutdown conditions.
The available colors and combinations are:
STANDARD LED CONFIGURATION
● Emergency stop shutdown
● Overcrank shutdown
● Low coolant temperature warning
● High coolant temperature warning/shutdown
● Low oil pressure warning/shutdown
● Overspeed warning/shutdown
● Low coolant level warning/shutdown
● Low fuel level warning/shutdown
● EPS supplying load status
● Control switch not in auto warning
● High battery voltage warning/shutdown
● Low battery voltage warning/shutdown
● BATT charger AC failure warning/shutdown
● Low starting air pressure warning/shutdown
● Air shutdown damper status
● Spare
Row LED 1 LED 2
1 Red Yellow
2 Red Yellow
3 Red Yellow
4 Red Yellow
5 Red Yellow
6 Red Yellow
7 Red Yellow
8 Red Yellow
9 Red Yellow
10 Red Yellow
11 Red Yellow
12 Red Yellow
13 Green Yellow
14 Green Yellow
15 Red Green
16 Red Green

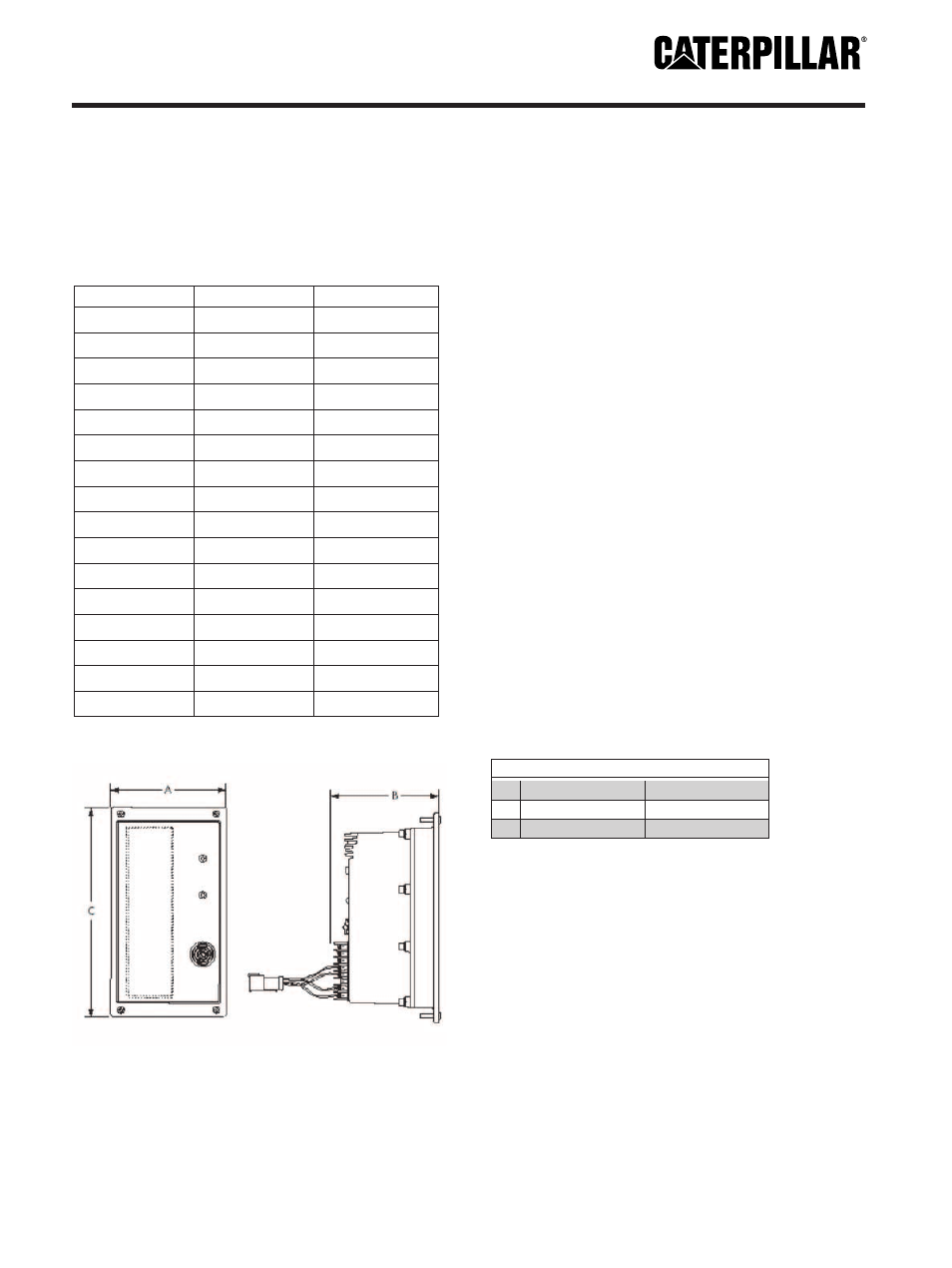

Annunciator Dimensions
A 158 mm 6.22 in
B 139 mm 5.12 in
C 288 mm 11.34 in
