60 Hz SA Enclosure
Ambient
Airflow
Sound Pressure Levels
Exhaust Back
1 Breaker
Capability*
Rate
dBA @ Full Load
Pressure
ekW
kVA
PP/SB
°C
°F
m
3
/s
Cfm
1 m
7 m
15 m
in/H
2
O
kPa
550
687.5
SB
42
108
11.9
25,215
87.7
76.7
70.7 18.0 4.5
500
625.0
SB
46
115
11.9
25,215
87.0
75.8
69.8 16.0 4.0
455
568.8
PP
44
111
11.9
25,215
86.4
75.2
69.2 14.3 3.6
450
562.5
SB
47
117
9.9
20,978
84.6
74.6
68.6 14.1 3.5
410
512.5
PP
44
111
9.9
20,978
84.2
74.0
68.0 12.5 3.1
400
500.0
SB
50
122
9.9
20,978
84.1
73.9
67.9 12.2 3.0
365
456.3
PP
47
117
9.9
20,978
83.8
73.4
67.4 10.9 2.7
350
437.5
SB
54
129
9.9
20,978
83.7
73.2
67.2 10.4 2.6
320
400.0
PP
50
122
9.9
20,978
83.5
72.9
66.9
9.3 2.3
E N C L O S U R E S
*Ambient measured with Caterpillar Extended Life Coolant

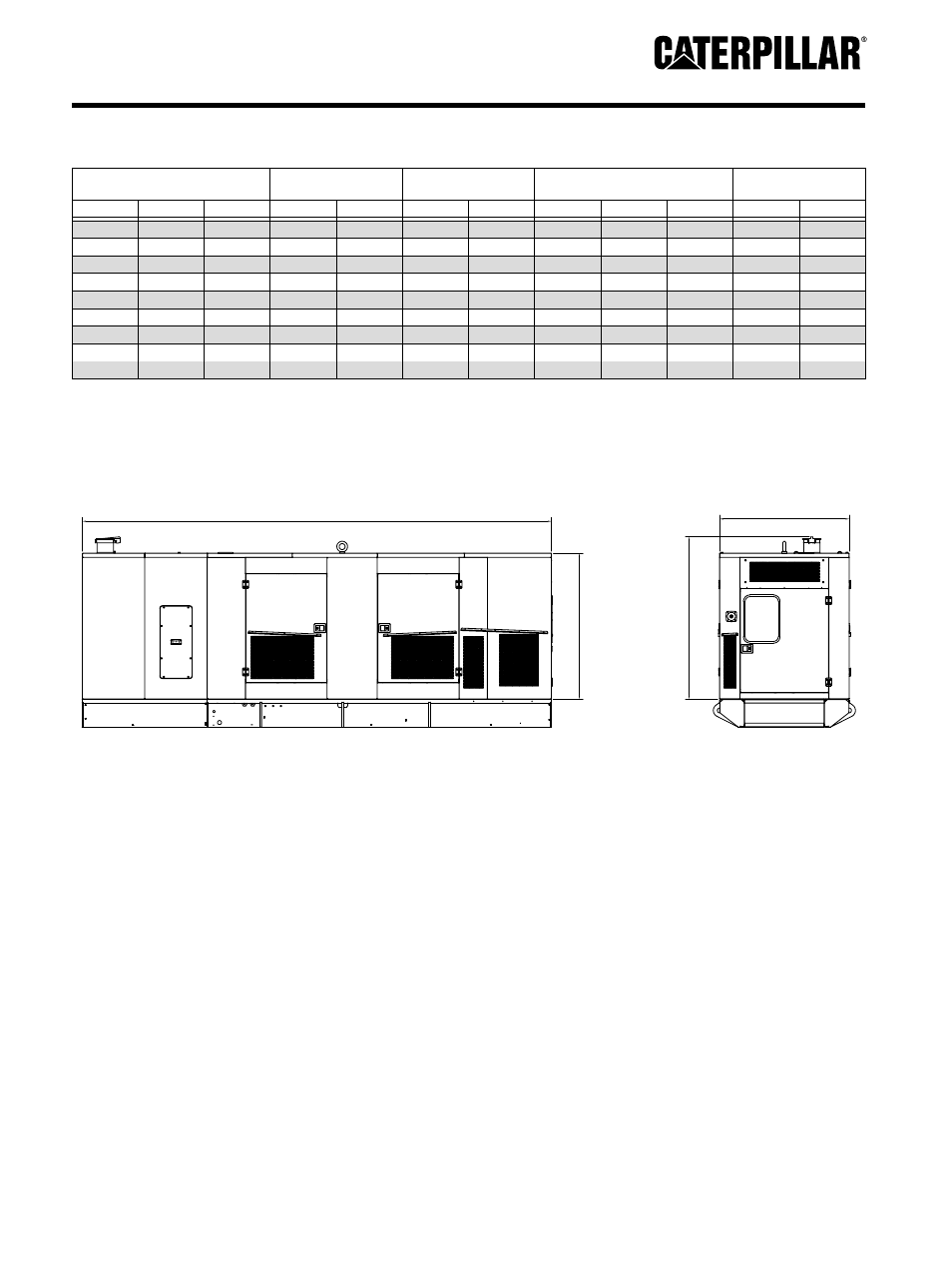

ENCLOSURE OPERATING CHARACTERISTICS
5795 (228.15)
1800 (70.87)
1600 (62.99)
2002.1 (78.82)
Note: See “Fuel Tank Base” spec sheets for base dimensions.
Approximate weight of enclosure package: 4984 kg (10,988 lb)
Enclosure weight includes: Sound Attenuated enclosure, exhaust system, extended base and generator set.
Exact weight is dependant on options.
Caterpillar is pleased to offer these additional generator set enclosure colors: white, bright beige,
and ASA 61 gray. (Caterpillar Yellow is standard color.)
