C18 FUEL TANK BASE (SUB-BASE) USEABLE CAPACITIES

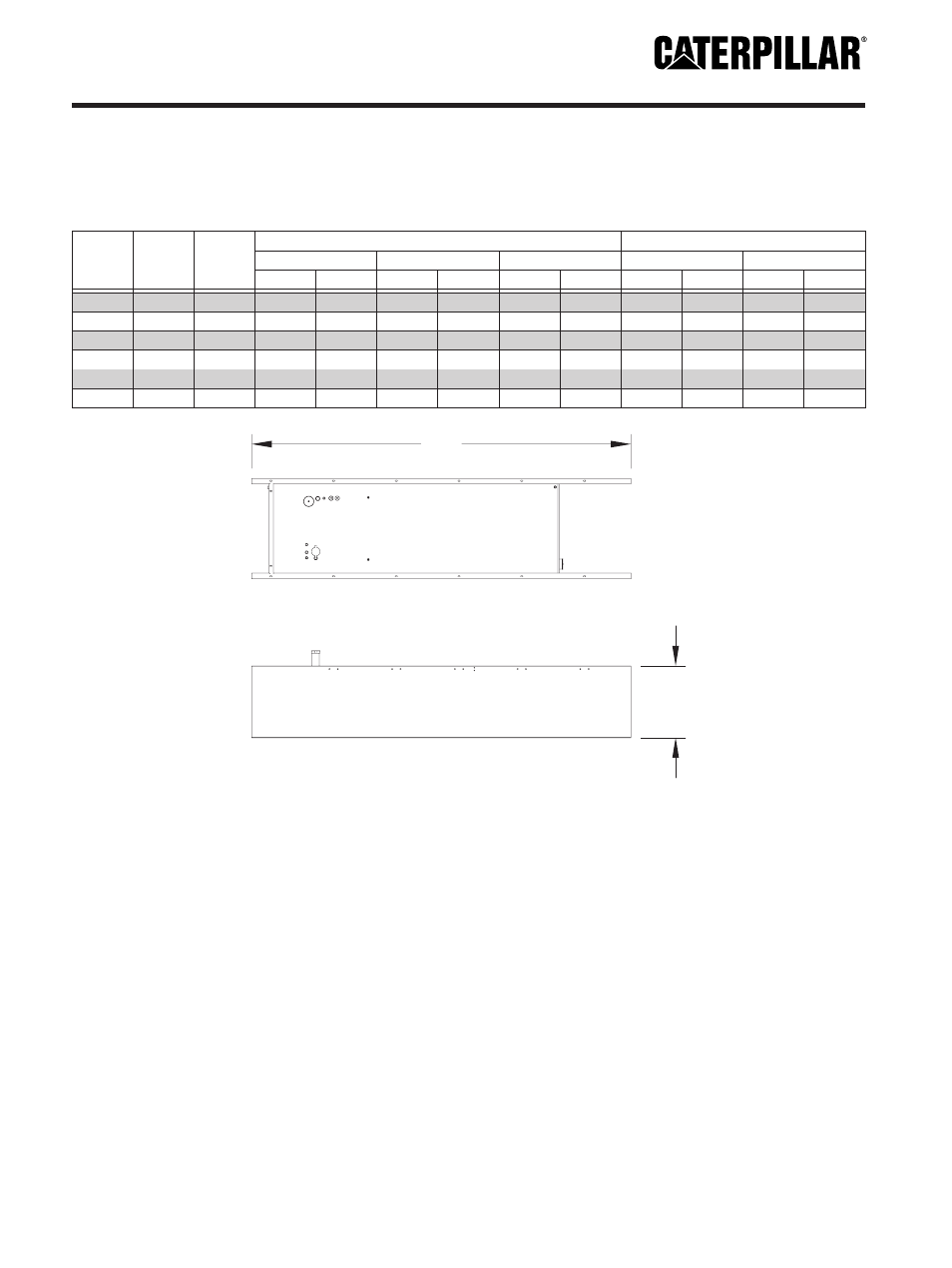

Fuel Tank Dimensions
The heights listed above do not include lumber used for skidding during manufacturing and shipping.
Tanks with full electrical stub-up area include removable end channel.
Tanks with RH/LH stub-up include stub-up area directly below the circuit breaker or power terminal strips.
Dimensions do not include weather-protective enclosure exhaust system.
UL 142 – Dual wall sub-base tanks are UL listed (File MH17470) and constructed
in accordance with Underwriters Laboratories Standard UL 142 “Steel Aboveground
Tanks for Flammable and Combustible Liquids”.
NFPA – Fuel tanks are built in accordance with the following NFPA Codes:
NFPA 30 – Flammable and Combustible Liquids Code
NFPA 37 – Standard for Installation and Use of Stationary Combustible Engine
NFPA 110 – Standard for Emergency and Standby Power Systems
DUAL WALL SUB-BASE – WIDTH 1440 mm (56.7 in)
B
A
TANK ONLY
TANK AND PACKAGE
Gallon
Liter
Type
Weight
Height ‘A’
Length ‘B’
Open PGS Height
Enc. PGS Height
kg
lb
mm
in
mm
in
mm
in
mm
in
660
2500
Sub-base
1164
2,567
700
27.6
5445
214.4
2839
111.8
2850
112.2
750
2840
Sub-base
1227
2,704
700
27.6
5445
214.4
2839
111.8
2850
112.2
1,000
3785
Sub-base
1368
3,015
1030
40.6
5445
214.4
3169
124.8
3180
125.2
1,250
4730
Sub-base
1522
3,355
1030
40.6
5445
214.4
3169
124.8
3180
125.2
1,500
5680
Sub-base
1713
3,776
1030
40.6
6250
246.1
3169
124.8
3180
125.2
1,750
6625
Sub-base
1882
4,150
1030
40.6
7000
275.6
3169
124.8
3180
125.2
