40MT120UHAPbF, 40MT120UHTAPbF
Vishay High Power Products "Half Bridge" IGBT MTP
(Ultrafast NPT IGBT), 80 A

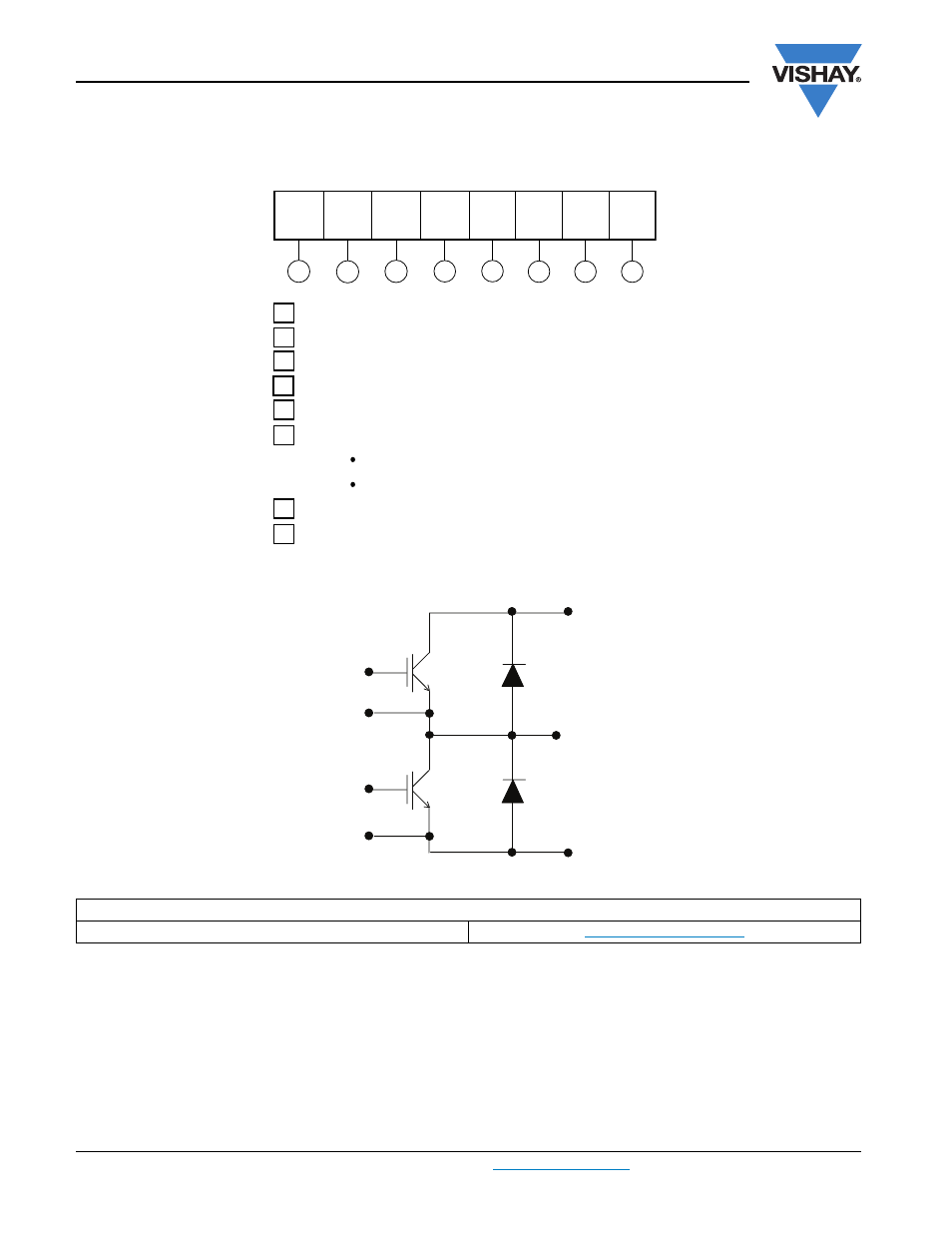

ORDERING INFORMATION TABLE
CIRCUIT CONFIGURATION
1 - Current rating (40 = 40 A)
2 - Essential part number
3 - Voltage code (120 = 1200 V)
4 - Speed/type (U = Ultrafast IGBT)
5 - Circuit configuration (H = Half bridge)
6 - Special option:
7 - A = Al
2
O
3
DBC substrate
8 - PbF = Lead (Pb)-free
None = No special option
T = Thermistor
Device code
5 1 3 2 4 6 7 8
40 MT 120 U H T A PbF
LINKS TO RELATED DOCUMENTS
Dimensions www.vishay.com/doc?95175
