20MT120UFP
"Full Bridge" IGBT MTP
(Ultrafast NPT IGBT), 40 A
Vishay High Power Products

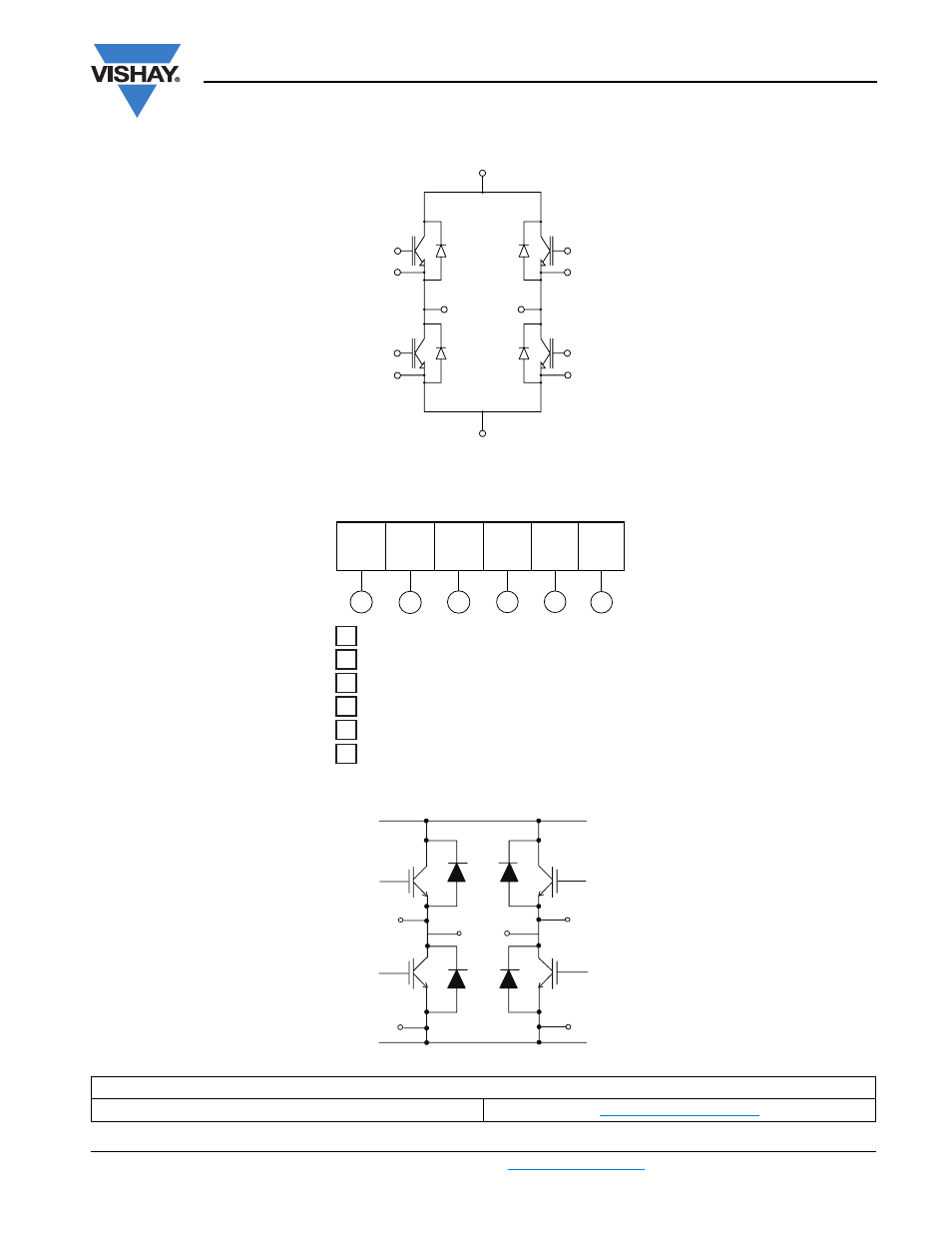

Fig. 25 - Electrical diagram
ORDERING INFORMATION TABLE
CIRCUIT CONFIGURATION
9, 10
4
3
5
6
15, 16
7
8
11, 12
13, 14
2
1
1
2
3
4
5
6 - P = Lead (Pb)-free
- Current rating (20 = 20 A)
- Essential part number
- Voltage code (120 = 1200 V)
- Speed/type (U = Ultrafast IGBT)
- Circuit configuration (F = Full bridge)
Device code
5 1 3 2 4 6
20 MT 120 U F P
LINKS TO RELATED DOCUMENTS
Dimensions www.vishay.com/doc?95245
