- 2 - AL100UL

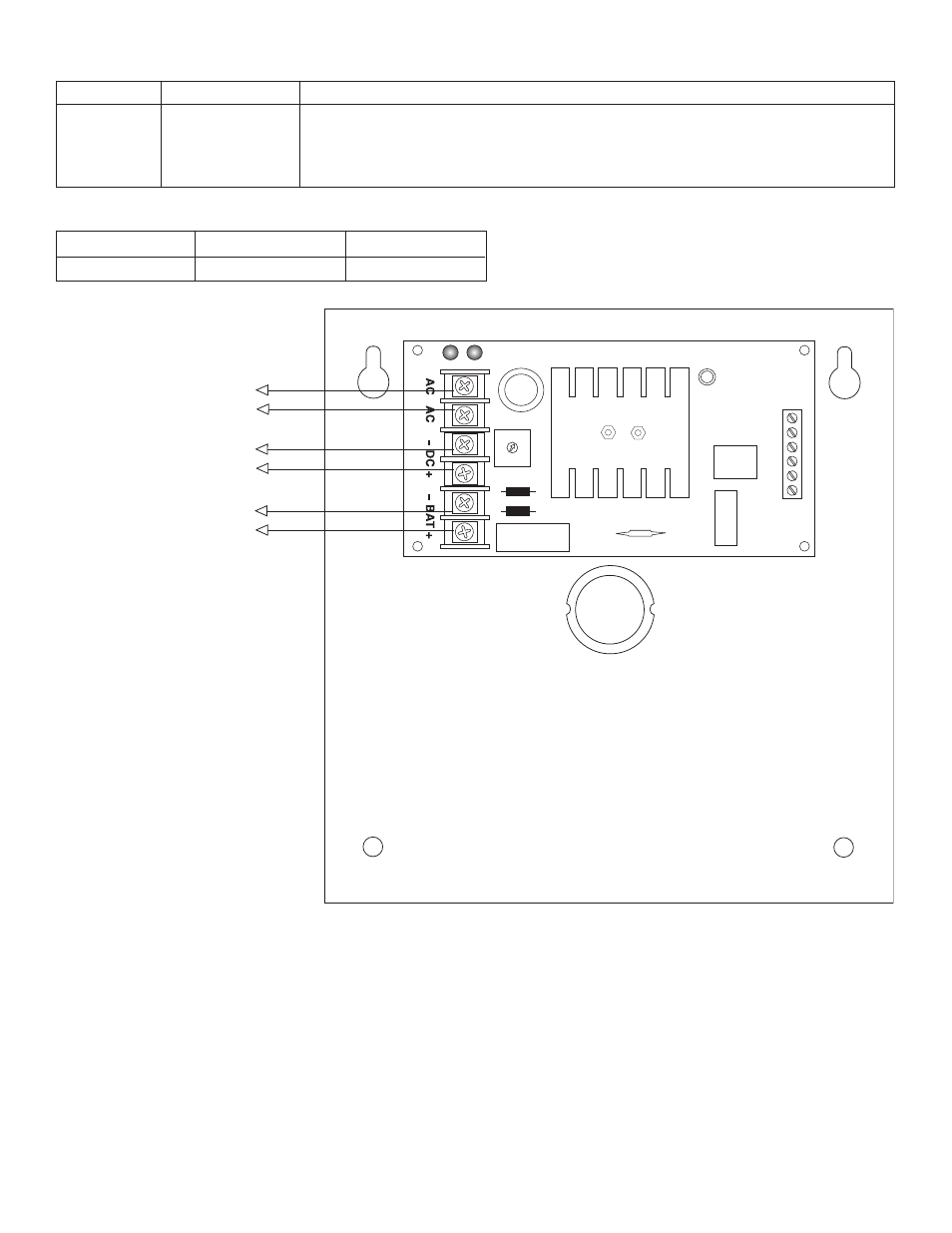

LED Diagnostics:
Red (DC) Green (AC) Power Supply Status
ON ON Normal operating condition.
ON OFF Loss of AC, Stand-by battery supplying power.
OFF ON No DC output.
OFF OFF Loss of AC. Discharged or no stand-by battery. No DC output.
Stand-by Specifications (Using (1) 4AH 12VDC Battery):
Current Draw Stand-by Time Alarm Time
750mA 4 hours 15 mins.
AC DC
A
C
F
A
IL
L
O
W
B
A
T
RL2
RL1
PTC1
IC1
C1
N
O
C
N
C
N
O
C
N
C
16.5VAC, 20VA
Plug-in Transformer
(UL Listed. Class 2 Transformer)
750mA 12VDC
Power Limited
Output
Stand-by
Battery
