- 8 - AL1042ULADA
OUT1 OUT2 OUT3 OUT4
INP2 INP1 FAULT
RESET
OUT1 OUT3
OUT2 OUT4
IN>OUT SYNC
STROBE SYNC
TEMPORAL
INPUT SELECT
IN>OUT SYNC
STROBE SYNC
TEMPORAL
INPUT SELECT
NC C NO C "F
AUL
T" NC
+ DC ---
-- AUX2 + -- LOOP4 +
-- OUT4 + -- OUT3 +
-- LOOP3 + -- LOOP1 +
-- OUT1 + -- OUT2 +
-- LOOP2 +
-- IN1 +
-- RET1 +
-- IN2 +
-- RET2 +
NC "DRY1" C
NC "DRY2" C
-- AUX1 +
Addressable
control module
trigger output
(See Typical Application Diagram for device hookup)
Power-Limited Outputs 2.5 amp per output max. (total = 10 amp)
+ --
4-wire Smoke
Detector
+ --
4-wire Smoke
Detector
Fire
Alarm
Control
Panel
(FACP)
EOL Power
Supervision Relay
(Not Supplied)
EOL Resistor
from FACP
Digital Communicator
or Local Annunciator
Dry output Contact
(Form "C" contacts)
These circuits are used to
monitor AC and Bat Fail
and will cause a
simultaneous trouble
condition to the FACP's
IN1 and IN2
(Non-Supervised)
Factory Installed Board
Interface Cable
AC
Magnetic
Door Holder
stand-by battery
connection
(non power-limited)
BAT FAIL
AC FAIL
+ BAT – + DC --
DC AC
AC DELAY
NC
C
NO
NC
C
NO
AC LOCAL NC
C
NO
L
N
Battery and AC Supervision
Circuit (power-limited).
Use separate knockout.
6.3A 250V
15
15A 32V
line
neutral unswitched
120VAC
power mains
(non power-limited)
Optional hookups:
1- Battery and AC monitoring: AC or Battery Fail condition will cause the common trouble input [C “FAULT” NC] to
report back to the FACP via input 1 and input 2. The common trouble input may also be used for other optional
supervisory monitoring.
To report AC and Battery Trouble connect the battery and AC Fail relay output shown in Fig. 3a, pg. 8 to the
common trouble input.
2- Dry contact input (C “DRY1” NC) (C “DRY2” NC) can be used to alarm output from an
addressable module (these inputs are unidirection and cannot report back to trigger module).
Connection to triggering devices must be made within 20ft. of distance and using conduit for wiring.
3- Auxiliary output (-AUX+) 24VDC at 1 amp max.
4- AC Local [NC, NO, C] should connect to the host control panel for local annunciation of
the trouble condition.
Note: If common trouble input, terminals marked [C “FAULT” NC] are not used, these terminals must be
shorted (connect jumper) to remain inactive. For optional hookups see Fig. 3b, pg. 8.

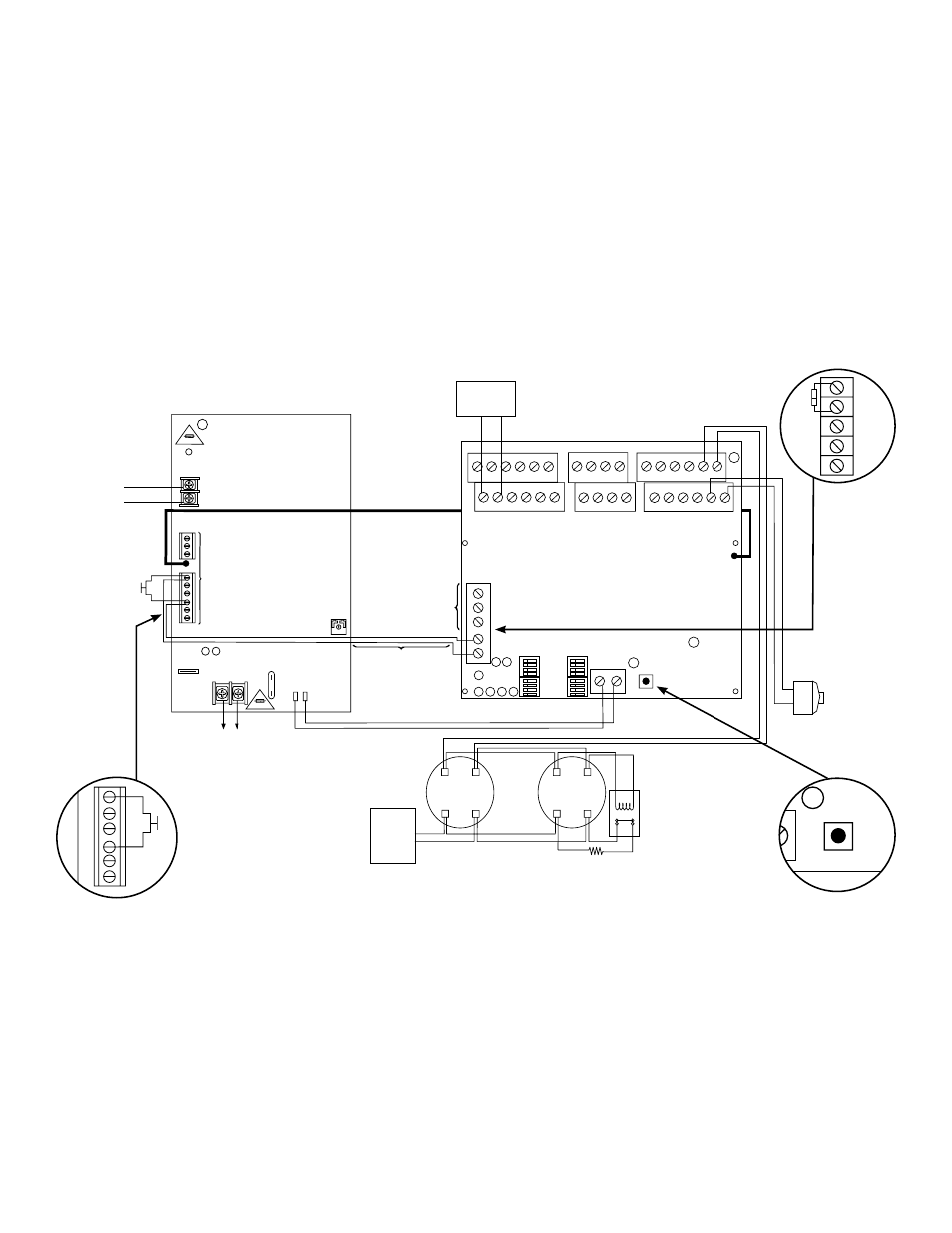

Optional Hookup Diagram:
Fig. 3 Fig. 3a
Fig. 3b
Fig. 3c
Maintenance:
Unit should be tested at least once a year for the proper operation as follows:
Output Voltage Test: Under normal load conditions, the DC output voltage should be checked for proper voltage level
(26.2-26.4VDC recommended range).
Battery Test: Under normal load conditions check that the battery is fully charged. Check specified voltage
both at battery terminal and at the board terminals marked [+ BAT -- ] to ensure that there is no break in the battery
connection wires.
Fuses: Check input and output fuses on the power supply board, replace if necessary.
Input fuse rating is 6.3 amp @ 250V, Output fuse rating is 15 amp @ 32V.
Note: Maximum charging current is 1.5 amp.
Note: Expected battery life is 5 years; however, it is recommended changing batteries in 4 years or less if needed.
AC F
AIL
NC C NO
BA
T F
AIL
NC C NO
NC
C
NO
C "F
AUL
T" NC
Trouble Memory
Reset Button + DC
---
BA
T
FA
IL
NO C NC NO C NC
+ BA
T
---
L
G
N
DC
AC
FA
IL
AC
15A 32V
10A
250V
OUT1 OUT2 OUT3 OUT4
INP2 INP1
FAULT
RESET
OUT1 OUT3
OUT2 OUT4
IN>OUT SYNC
STROBE SYNC
TEMPORAL
INPUT SELECT
IN>OUT SYNC
STROBE SYNC
TEMPORAL
INPUT SELECT
NC C NO C "F
AUL
T" NC
+ DC ---
-- AUX2 + -- LOOP4 +
-- OUT4 + -- OUT3 +
-- LOOP3 + -- LOOP1 +
-- OUT1 + -- OUT2 +
-- LOOP2 +
-- IN1 +
-- RET1 +
-- IN2 +
-- RET2 +
NC "DRY1" C
NC "DRY2" C
-- AUX1 +
Green Lead
Addressable
control module
trigger output
(See Typical Application Diagram for device hookup)
Power-Limited Outputs 2.5 amp per output max.
(total = 10 amp)
+ --
4-wire Smoke
Detector
+ --
4-wire Smoke
Detector
Fire
Alarm
Control
Panel
(FACP)
EOL Power
Supervision Relay
(Not Supplied)
EOL Resistor
from FACP
Digital Communicator or
Local
Annunciator Dr
y
output Contact
(Form "C" contacts)
These circuits are used to monitor
AC and Bat Fail and will cause a
simultaneous trouble condition
to the FACP's IN1 and IN2
(Non-Supervised)
Factory Installed
Board Interface
Cable
AC Fuse
Cover
unswitched 115VAC
50/60Hz, 4.4 amp
power mains
(non power-limited)
Magnetic
Door Holder
