Pd8/pd8cb - distribution module, Fig. 1, Fig. 1a fig. 1b fig. 1c power supply board – Altronix ALTV1224DC2 Installation Instructions User Manual
Page 3: Power on/off switch trimpot, 24v - open 12v - closed
ALTV1224DCseries
- 3 -
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.
This installation should be made by qualified service personnel and should conform to all local codes
and in accordance with the National Electrical Code.
ALTV1224DC/CB Terminal Identification:
OLS127 - Power Supply
Terminal Legend Function/Description
L, G, N
115VAC 50/60 Hz connections
– DC +
12VDC or 24VDC @ 4 amp total continuous output.
– BAT +
Stand-by battery connections. Maximum charge rate .5 amp.
PD8/PD8CB - Distribution Module
1P - 8P
Positive DC power outputs.
1N - 8N
Negative DC power outputs.
Door
CAUTION: De-energize unit prior to servicing. For continued protection against
fire hazard replace fuse with the same type and rating 5A, 250V.
Do not expose unit to rain or moisture.
N
C
O
M
M
O
N
P
O
W
E
R
O
U
T
P
U
T
S
P
F
U
S
E
D
P
O
W
E
R
O
U
T
P
U
T
S
1
2
3
4
5
6
7
8
D
1
IN
P
U
T
R
1
L
E
D
Switch Position:
24VDC = SW1 OPEN
12VDC = SW1 CLOSED
Switch Position:
24VDC = SW1 OPEN
12VDC = SW1 CLOSED
OFF ON
Power ON/OFF
Switch
Trimpot
Wire Strap
(from
Enclosure
to Door)
Used on PTC Models
(example: ALTV1224DCCB)
24V - OPEN
12V - CLOSED
24V - OPEN
12V - CLOSED

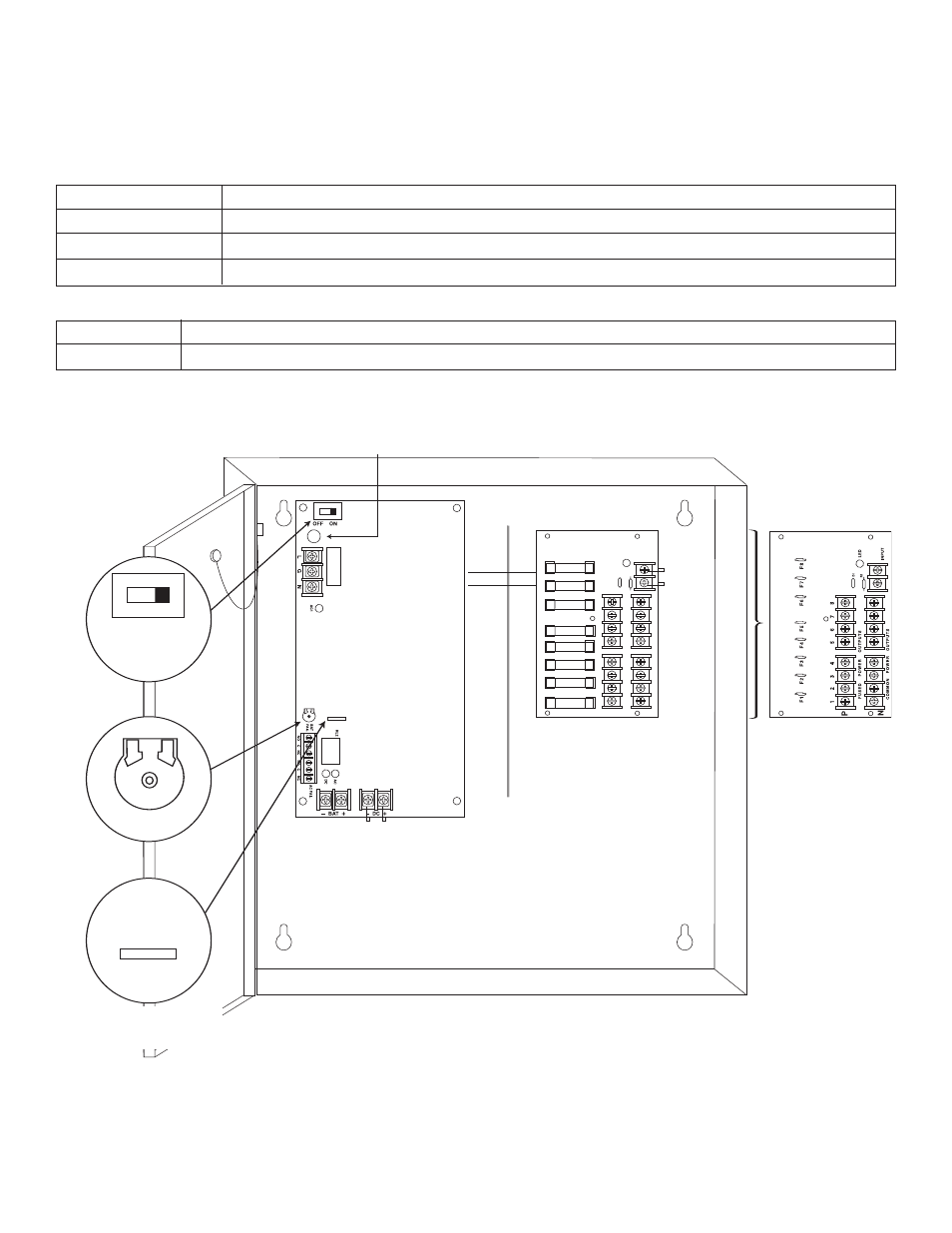

Fig. 1
Fig. 1A
Fig. 1B
Fig. 1C
Power Supply
Board
