Altronix AL400UL Installation Instructions - Manual (Page 4)

Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
web site: www.altronix.com, e-mail: [email protected], Lifetime Warranty, Made in U.S.A.
IIAL400UL Rev. 022892
H08M
- 4 - AL400UL
MEMBER

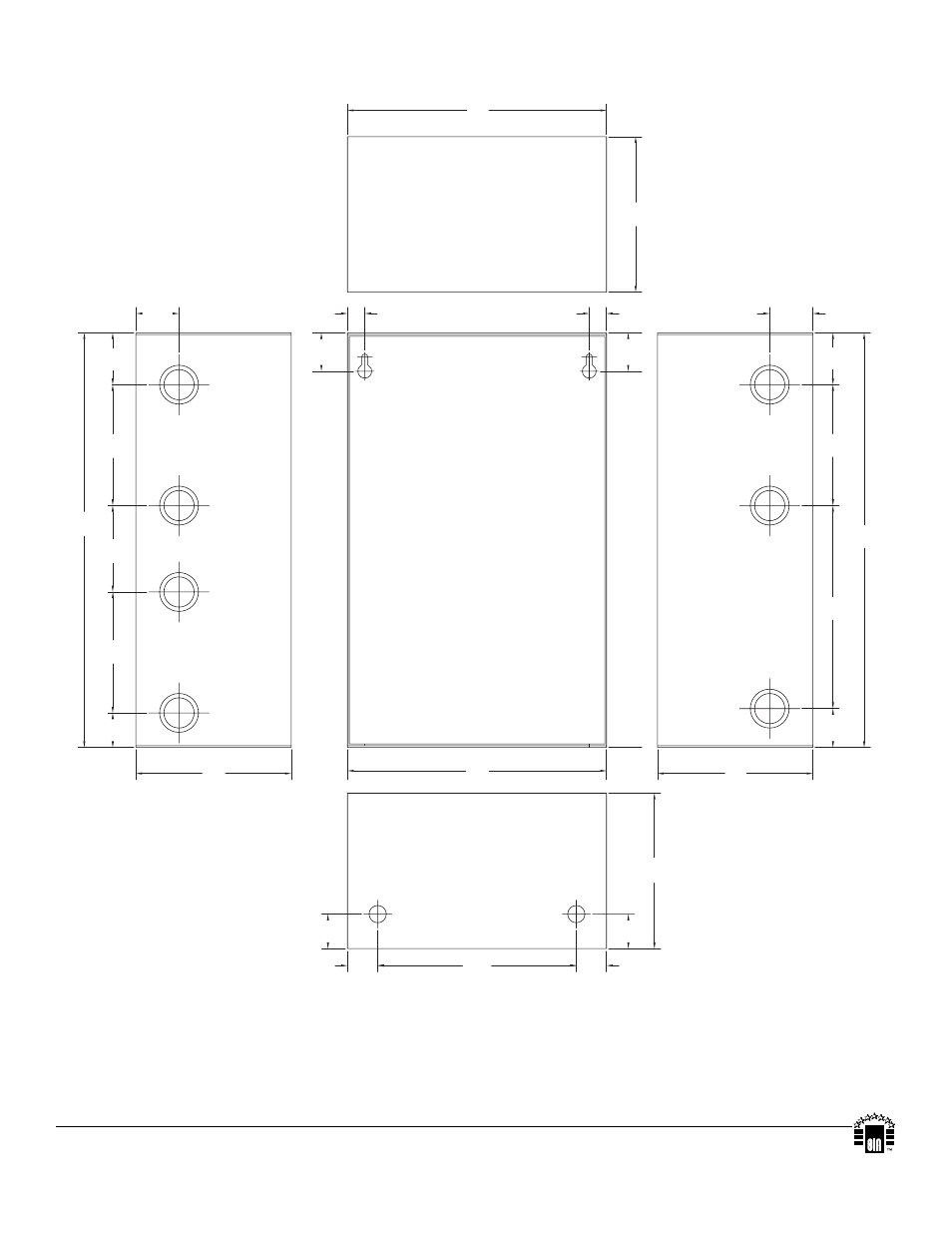

Enclosure Dimensions (H x W x D approximate) :
12.25” x 7.25” x 4.5” (311.15mm x 184.15mm x 114.3mm)
1.25”
(31.75mm)
0.5”
(12.7mm)
0.5”
(12.7mm)
1.5”
(12.7mm)
1.25”
(31.75mm)
1.5”
(12.7mm)
3.5”
(88.9mm)
3.5”
(88.9mm)
3.5”
(88.9mm)
1”
(25.4mm)
1”
(25.4mm)
5.75”
(146.05mm)
1”
(25.4mm)
1.13”
(28.7mm)
5.88”
(149.35mm)
0.88”
(22.35mm)
0.88”
(22.35mm)
1.11”
(28.19mm)
1.11”
(28.19mm)
4.5”
(114.3mm)
4.5”
(114.3mm)
4.5”
(114.3mm)
4.5”
(114.3mm)
7.5”
(190.5mm)
7.5”
(190.5mm)
2.5”
(63.5mm)
12”
(304.8mm) 12”
(304.8mm)
