- 4 - VertiLine563

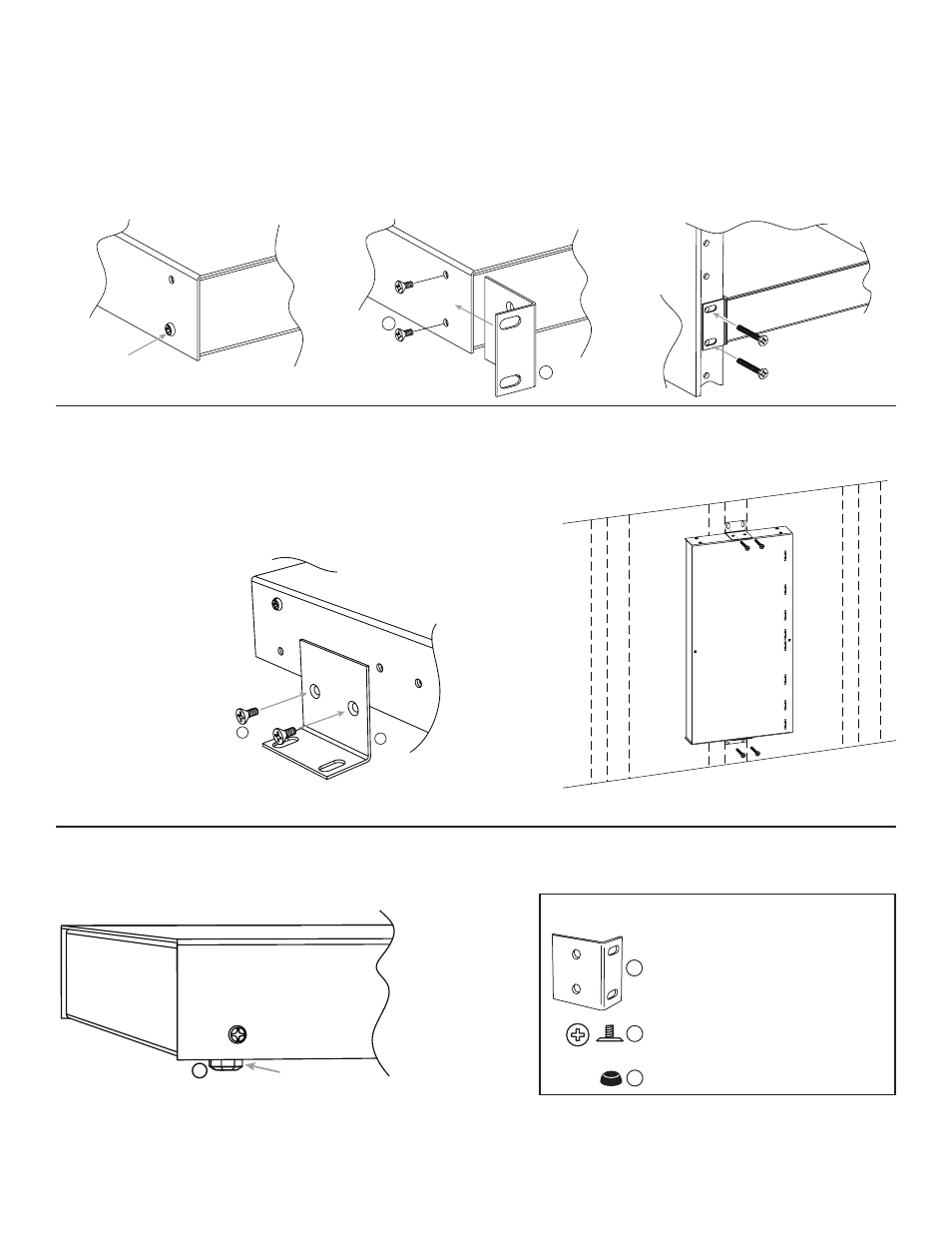

Mounting Options:
Rack Mount Installation
1- Remove and discard factory installed screws from both sides of rack chassis (Fig. 6a).
2- Install mounting brackets (A) on the left and right side of rack chassis using the
four (4) flat head screws (B) (included) (Fig. 6b).
3- Place unit into desired EIA 19” rack position and secure with mounting screws (not included) (Fig. 6c).
(Space unit at least 3” from any video monitors). Do not obstruct side air vents.
Fig. 6
Fig. 6a
Fig. 6b Fig. 6c
Wall Mount Installation
1- Install mounting brackets (A) on the left and right side of rack chassis using four (4) flat head
screws (B) (included) (Fig. 7a).
2- Place unit at desired location and secure with mounting screws (not included) (Fig. 7b).
Caution: It is necessary to make sure mounting screws are securely
fastened to a beam when installing the unit vertically.
Fig. 7
Fig. 7a Fig. 7b
Shelf Installation
1- Position and affix rubber pads (C) (included) at each corner on the bottom of the unit (Fig. 8).
2- Place unit in desired location.
Fig. 8
B
A
B
A
C
Mounting Hardware (Included):
C Rubber Feet
Left Side
A
B
Remove
Top
Front
Left
Front
Left
Front Left
Top Top
Two (2) mounting brackets
Six (6) flat head screws
for mounting brackets.
Four (4) rubber pads.
Dotted lines indicate studs
behind sheetrock.
