Vertiline8C - 3 -
9. Upon completion of wiring, set illuminated master power disconnect circuit breaker to the
ON (RESET) position (Fig. 3, pg. 6).
10. The power LEDs (Green) on the faceplate for Outputs 1-8 will illuminate when AC power is present
(Fig. 1a, pg. 4). If any of these LEDs are off, a loss of AC power output may be due to a blown fuse or a
tripped PTC caused by a short circuit or overload condition. If all of the LEDs are OFF there may be a complete
loss of supply power to the Vertiline unit or the illuminated master power disconnect circuit breaker is in the OFF
position or the main fuse 1-8 is blown (Fig. 1c, pg. 4).*
To restore the power output for Vertiline8C or Vertiline83C:
1- Switch corresponding output voltage switch to the OFF position (Fig. 1b, pg. 4).
2- Eliminate the trouble condition.
3- Replace the corresponding automotive blade fuse.*
4- Switch output voltage switch to the 24VAC or 28VAC position as desired (Fig. 1b, pg. 4).
To restore the power output for Vertiline8CD or Vertiline83CD:
1- Switch corresponding output voltage switch to the OFF position (Fig. 1b, pg. 4).
2- Eliminate the trouble condition.
3- Allow 1 minute for PTC to cool off.
4- Switch output voltage switch to the 24VAC or 28VAC position as desired (Fig. 1b, pg. 4).
*Note: Replace fuses with same type and rating:
Output fuses are rated @ 3 amp for all models.
Main fuse ratings:
10 amp for Vertiline8C and Vertiline8CD.
15 amp for Vertiline83C and Vertiline83CD.

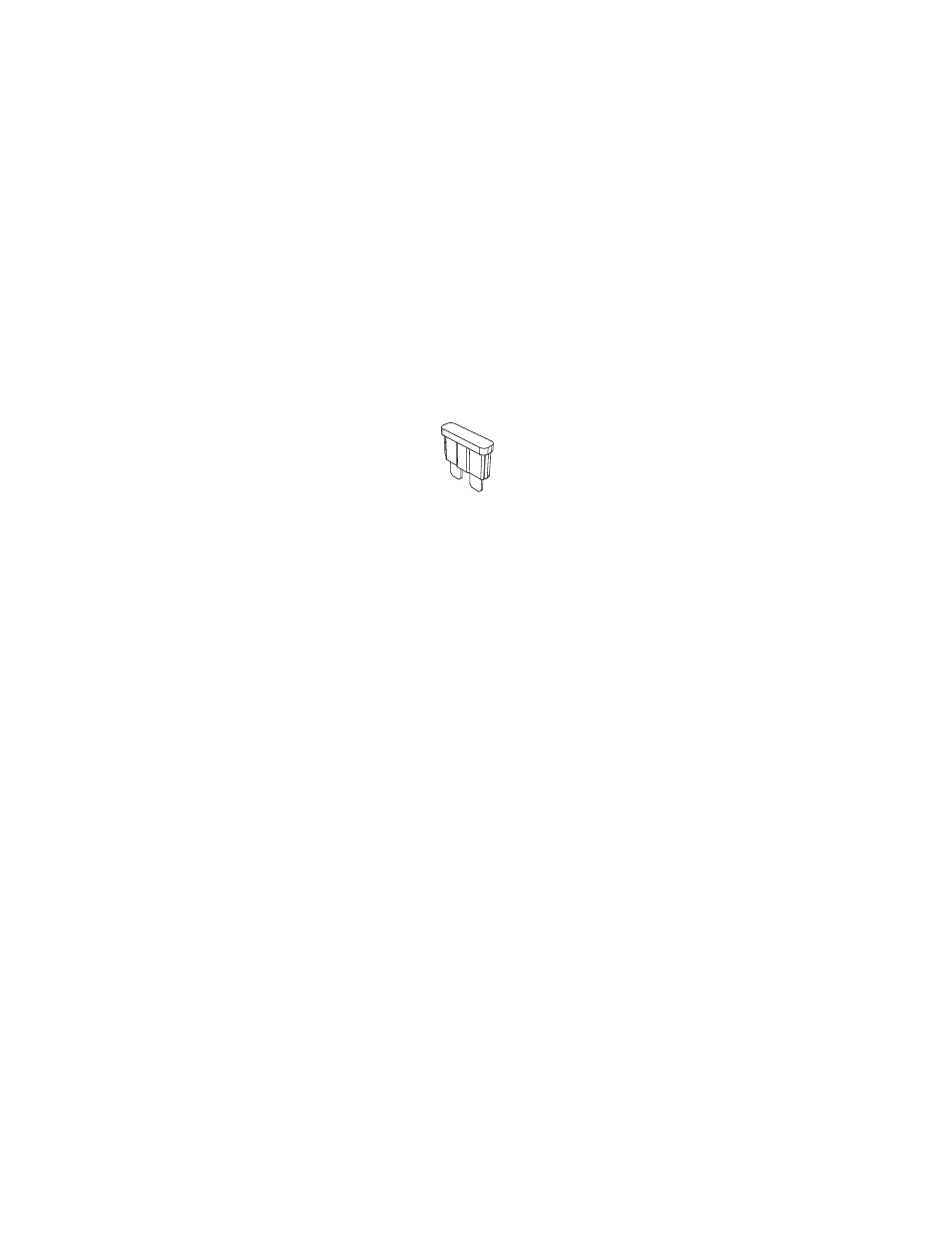

Automotive
Blade Fuse
