Enclosure dimensions for: • smp3pmctxx, Bottom top right left – Altronix SMP3PMP8CB Installation Instructions User Manual

Page 4

- 4 -

SMP3CTXseries

Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.

Altronix Corp.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
web site: www.altronix.com, e-mail: [email protected], Made in U.S.A.
IISMP3CTX series - Rev. 051105

H02J

12.230"

15.500"

1.100"

0.910"

1.100"

0.910"

0.790"

1.100"

1.500"

1.250"

5.000"

1.250"

1.500"

4.615"

1.500"

1.750"

1.500"

4.615"

1.500"

1.750"

4.500"

1.250"

1.500"

5.000"

2.000"

1.250"

1.375"

1.125"

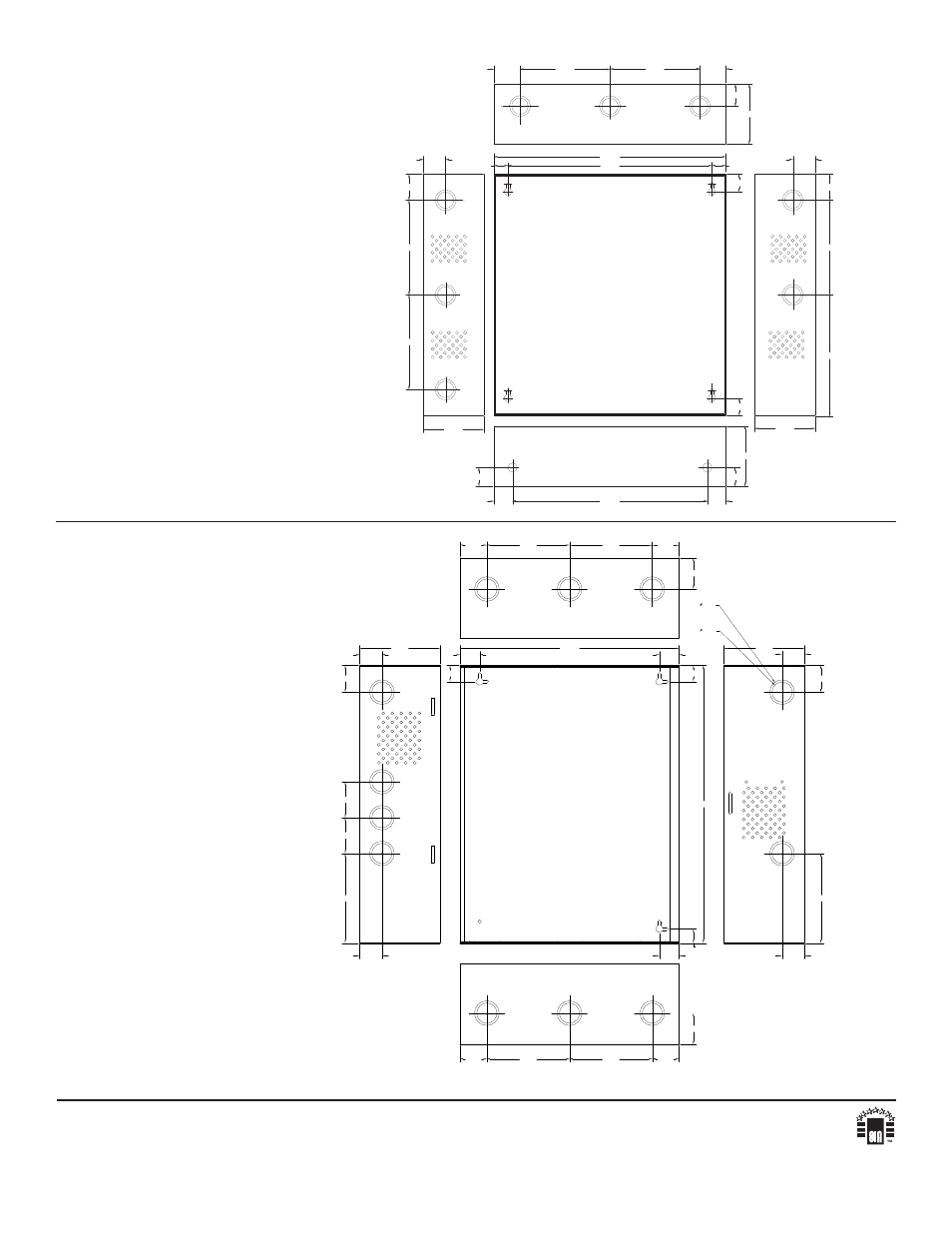

Enclosure Dimensions for:

• SMP3PMCTXX

15.5”H x 12.23”W x 4.5”D
Enclosure accommodates up to
two (2) 12VDC/12AH batteries.

Enclosure Dimensions for:

• SMP3CTX

• SMP3PMCTX

• SMP3PMP4

• SMP3PMP4CB

• SMP3PMP8

• SMP3PMP8CB

• SMP3PMP16

• SMP3PMP16CB

13.5”H x 13”W x 3.25”D
Enclosure accommodates up to
two (2) 12VDC/7AH batteries.

Also available to accommodate up to
two (2) 12VDC/12AH batteries
(please contact Altronix).

MEMBER

5.10"

6.5625"

3.25"

5.10"

3.25"

1.00"

10.50"

1.00"

1.40"

1.20"

1.40"

1.20"

0.75"

11.00"

12.50"

3.25"

0.9375"

1.40"

4.85"

1.40"

1.20"

Bottom

Top

Right

Left
