NetWay8/NetWay16 - 3 -
AC POWER

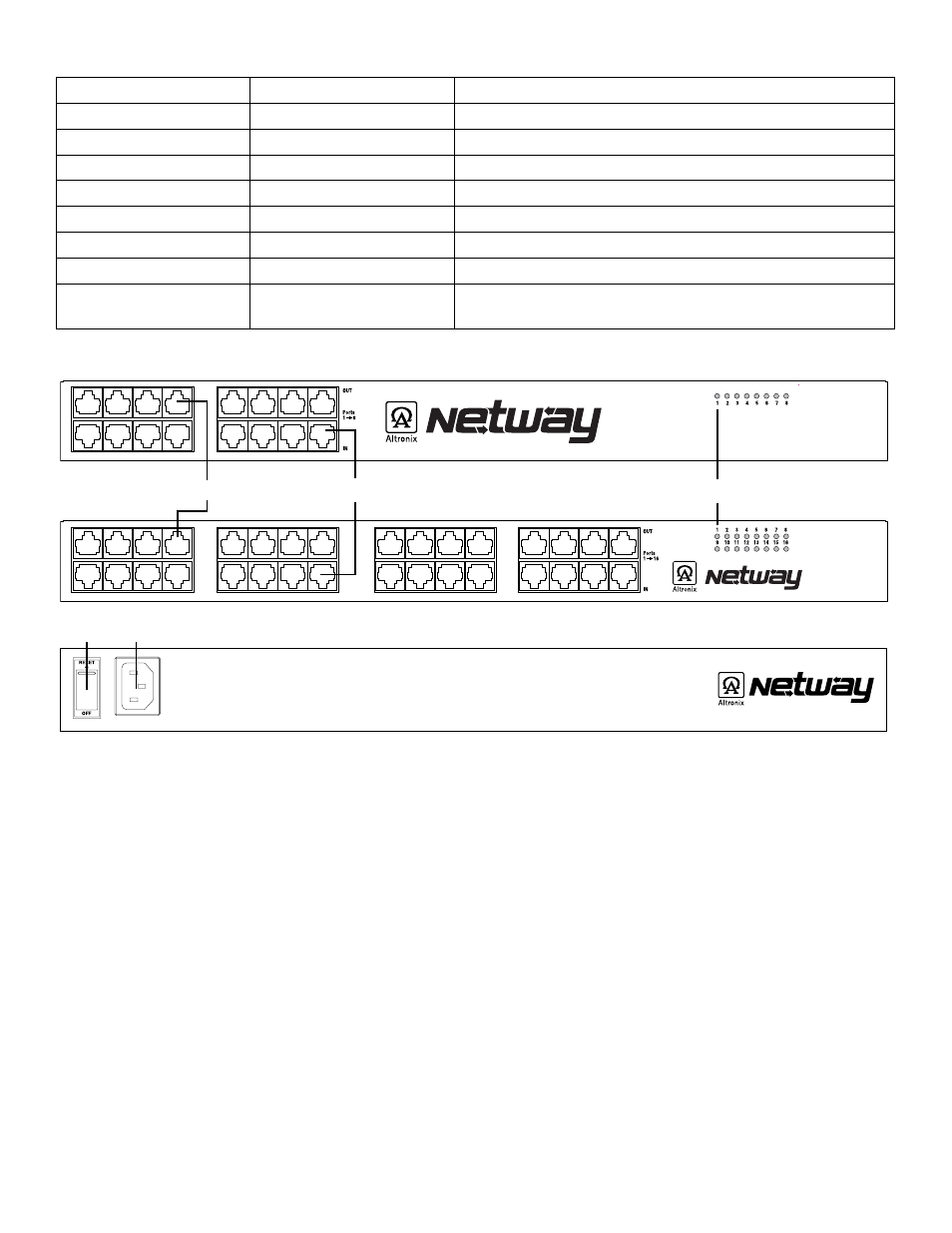

NetWay8 & NetWay16 - Rear Panel
NetWay8 - Front Panel
NetWay16 - Front Panel
1a 1b 1c
1d 1e
Port Status and LED Flash Codes:
Port Status Flash Codes Description
All Ports Off Sequential LED Port Scan No devices connected
Port Off OFF LED OFF
Port On ON LED ON
Class 4 detection Port Blinks 2 times
Non-compliant Port 2Hz
Port Overload Fault 5Hz
4 Port Overload Grouped 5Hz 4 LEDs
8 Port Overload Grouped 5Hz
LED’s 1-8 Power Supply Overload for ports 1-8.
LED’s 9-16 Power Supply Overload for ports 9-16.
Fig. 1
1a OUT 1-8 (NetWay8), OUT 1-16 (NetWay16): Structured cable to PoE compliant cameras/edge devices.
1b IN 1-8 (NetWay8), IN 1-16 (NetWay16): Structured cable to ethernet switch or video server.
1c LED(s) 1-8 (NetWay8), 1-16 (NetWay16): Port status LEDs.
1d Illuminated master power disconnect circuit breaker (switch):
• OFF position Circuit breaker tripped Switch not illuminated.
• RESET (ON) position Switch illuminated.
1e IEC 320 Connector: 115VAC 60Hz (grounded line cord included).
