UL Isolated Series - 3 -
Caution: Equipment to be installed / serviced by authorized / trained personnel only.
Shut branch circuit power before installing / servicing equipment.
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.
This installation should be made by qualified service personnel and should conform to all local codes
and in accordance with the National Electrical Code. Use 75C or higher rated UL insulated wiring for
connecting unit to the mains. Replace fuses with same type and rating (3.5 amp/250V).
Terminal Identification:
PD8i - Power Distribution Module
1A - 8A Phase 1.
1B - 8B Phase 2.

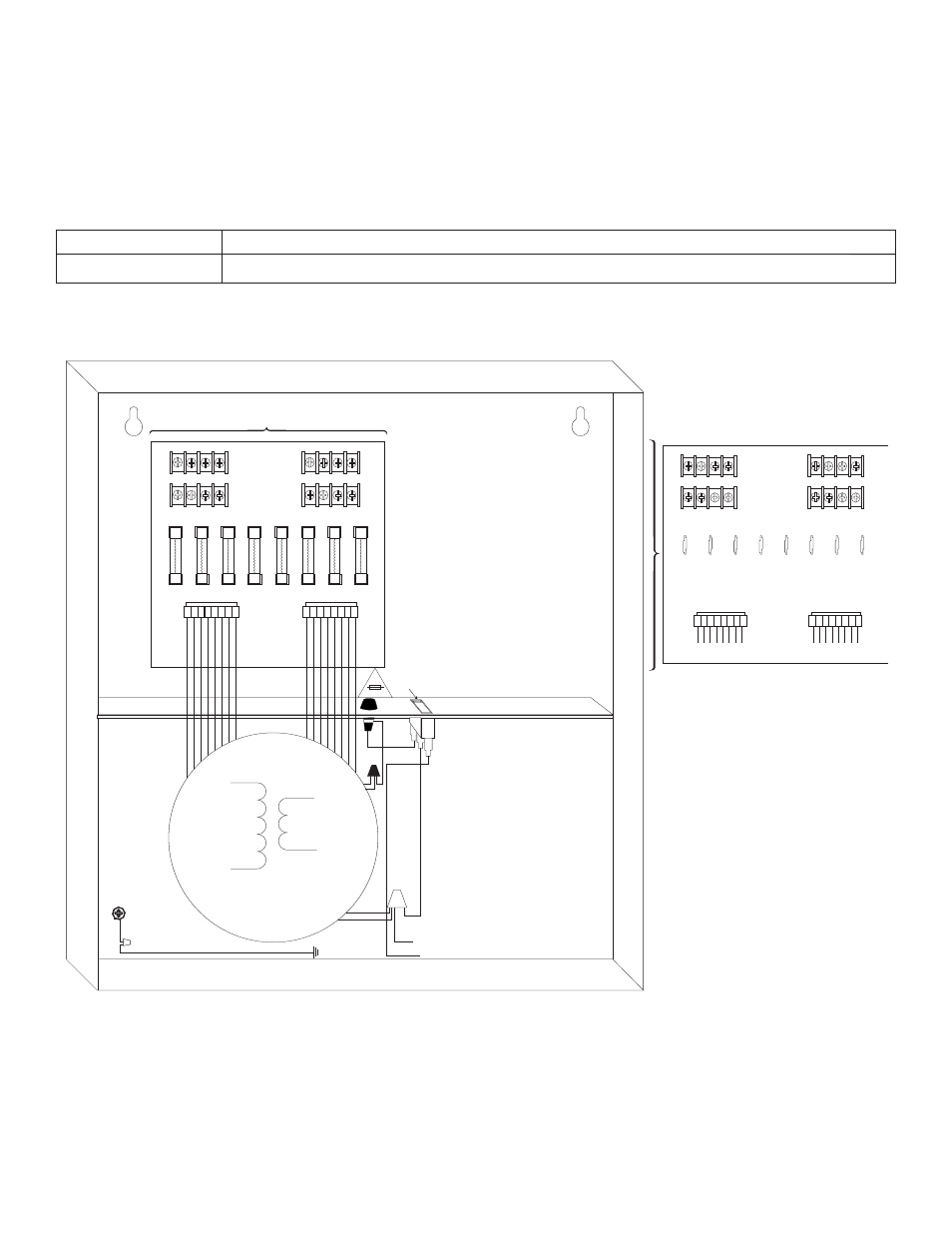

Fig. 1 - ALTV248ULHi • ALTV248ULCBHi
115VAC input
50/60 Hz.
Power
Switch
1A
F1 F2 F3 F4 F5 F6 F7 F8
2A 3A 4A 5A 6A 7A 8A
1B 2B 3B 4B 5B 6B 7B 8B
XFMR*
1A
F1 F2 F3 F4 F5 F6 F7 F8
2A 3A 4A 5A 6A 7A 8A
1B 2B 3B 4B 5B 6B 7B 8B
Used on PTC Models
(example: ALTV248ULCBHi)
Class 2 power-limited
non power-limited
non power-limited
Green
Lead
(ground)
5A
250V
WARNING:
Change fuses with the same
type and rating.
Input: 5 amp @ 250V
Output: 3.5 amp @ 250V
