Altronix HubWay LD8D Installation Instructions - Manual (Page 6)

- 6 - HubWayLD Active Unit
115VAC
Input, 50/60Hz
Video
Power
Video
Data
Power
Video
Power
HubWayDv/Dvi
Video Balun
Combiner
CAT-5
CAT-5 CAT-5
Fixed
Camera
Fixed
Camera
HubWayAv
Video Balun
Combiner
Data
Video
Head End Equipment (DVR)
RS485
Video (Coax)
Four (4) Video
signals on a
single CAT-5
Data
(CAT-5)
Power
HubWayDv/Dvi
Video Balun
Combiner
Video
Data
PTZ
Camera
PTZ
Camera
Power
Video
Data
Power
HubWayAv
Video Balun
Combiner
HubWayAv
Video Balun
Combiner
Fixed
Camera
Fixed
Camera
Max.
video
3000 ft.
PTZ
Camera
Video
Power
HubWayDv/Dvi
Video Balun
Combiner
CAT-5
24VAC/28VAC
Camera Power
Provided
by HubSat4D
Video
Data
Power
Outdoor
NEMA
Rated
Power
Supply
Outdoor
PTZ
Camera
115VAC Input,
50/60Hz
HubWayAv or
HubWayDv/Dvi
Video Balun
Combiner
Monitor
Rear
Front
12 3 4 CH 1-4 CH 5-8
28VAC
OFF
24VAC
+ DATA -
1-8
56 7 8
PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE AC POWER GAIN
87 6 5 4 3 2 1

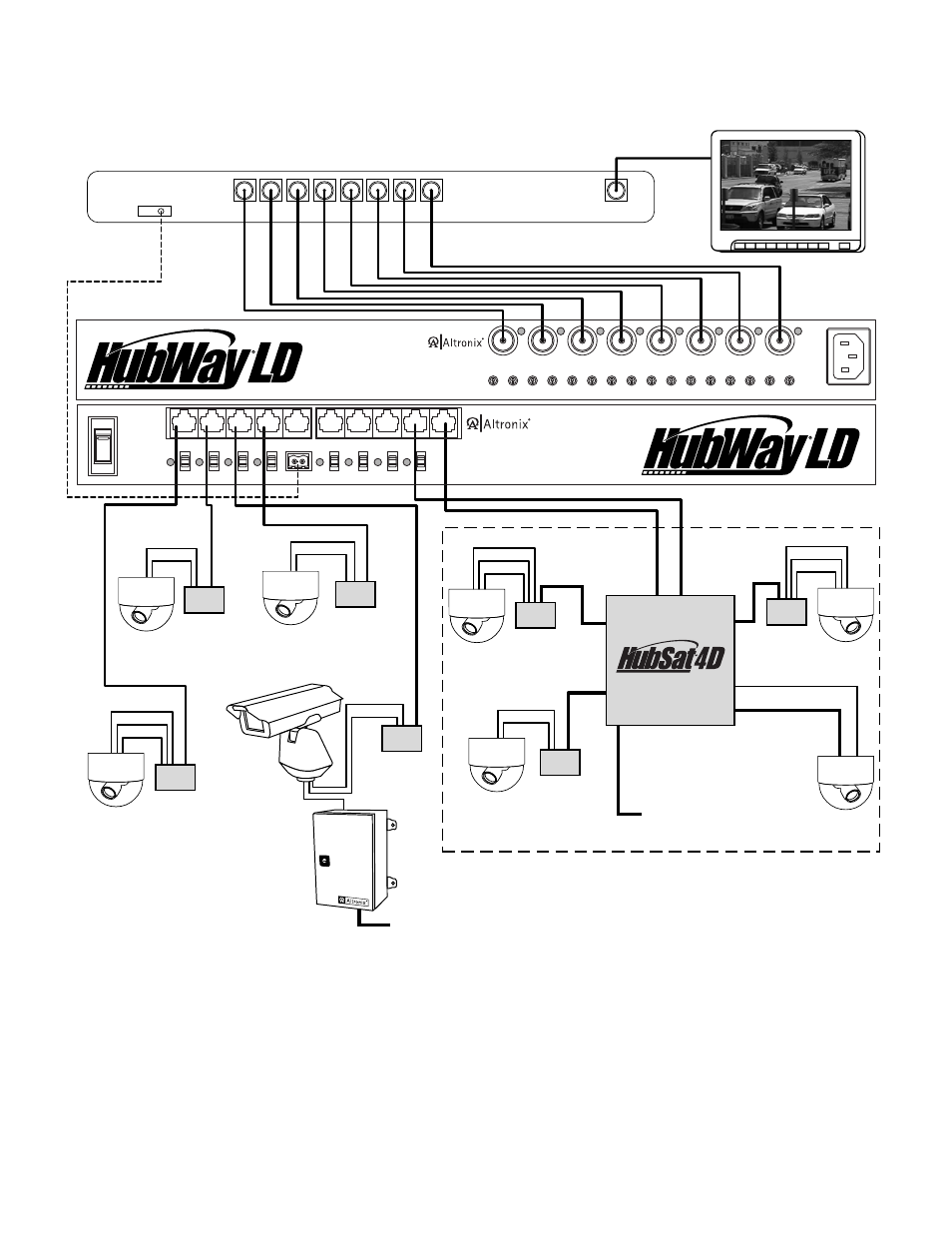

Fig. 4
Typical Applications:
Fig. 4a - Optional hookup utilizing HubSat4D.
