AL300ULX series
- 5 -
LED Diagnostics:
Power Distribution Module
Green
Power Distribution Module Status.
ON
Normal operating condition.
OFF
No Power Output.
Terminal Identification:
Power Distribution Module
Terminal Legend
Function/Description
PD4UL/PD4ULCB PD8UL/PD8ULCB
1P to 4P
1P to 8P
Positive DC power outputs.
1N to 4N
1N to 8N
Negative DC power outputs.

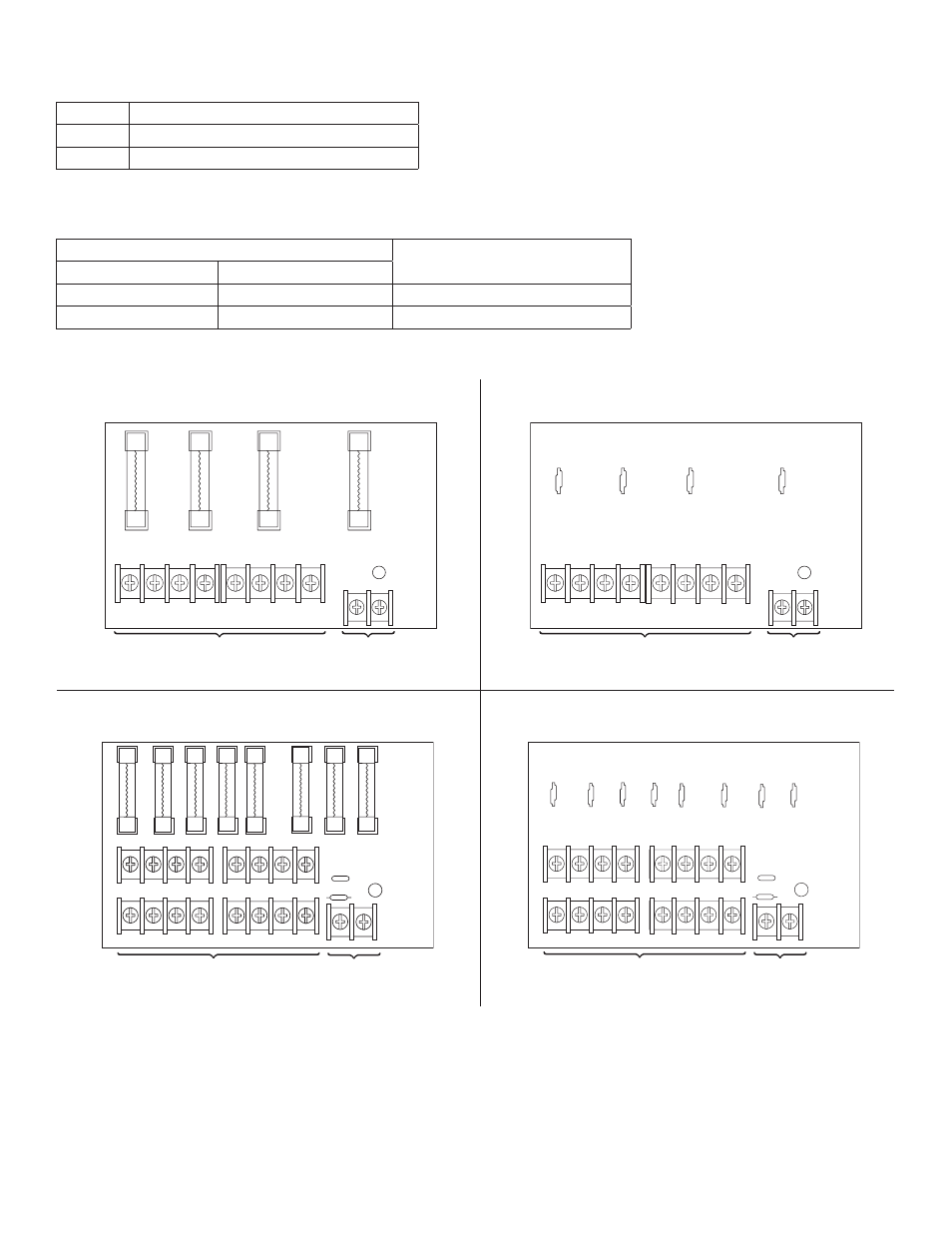

Power Distribution Module(s):
LED
F1
F2
F3
F4
1P
1N
2P
2N
3P
3N
4P
4N
DC Output to devices
1P-4P Power Outputs,
1N-4N Common Outputs
(
)
From Power Supply
Board
(Factory Installed)
Replace fuses with the same type and rating 3.5A, 250V.
Fig. 2a
Fig. 3a
INPUT
LED
F1
F2
F3
F4
POWER OUTPUTS
1P
1N
2P
2N
3P
3N
4P
4N
DC Output to devices
1P-4P Power Outputs,
1N-4N Common Outputs
From Power Supply
Board
(Factory Installed)
(
)
Fig. 2b
N
COMMON POWER OUTPUTS
P
FUSED POWER OUTPUTS
1
2
3
4
5
6
7
8
D1
INPUT
R1
LED
From Power Supply
Board
(Factory Installed)
Replace fuses with the same type and rating 3.5A, 250V.
DC Output to devices
1P-8P Power Outputs,
1N-8N Common Outputs
(
)
N
C O M M O N P O W E R O U T P U T S
P
F U S E D P O W E R O U T P U T S
1
2
3
4
5
6
7
8
D1
INPUT
R1
LED
From Power Supply
Board
(Factory Installed)
DC Output to devices
1P-8P Power Outputs,
1N-8N Common Outputs
(
)
Fig. 3b
