DC Outdoor
- 3 -
Fig. 1
LED Diagnostics:
Red (DC) Green (AC) Power Supply Status
ON
ON
Normal operating condition.
ON
OFF
Loss of AC. Stand-by battery supplying power.
OFF
ON
No DC output. Short circuit or thermal overload condition.
OFF
OFF
No DC output. Loss of AC. Discharged or no battery present.
The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the user to the
presence of an insulated “DANGEROUS VOLTAGE” within the products enclosure that may be of sufficient
magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
CAUTION: To reduce the risk of electric shock do not open enclosure. There are
no user serviceable parts inside. Refer servicing to qualified service personnel.
Terminal Identification:
Terminal Legend
Function/Description
--- DC +
WayPoint-3 12VDC or 24VDC @ 2.5 amp continuous supply current.
WayPoint-5 12VDC or 24VDC @ 4 amp continuous supply current.
WayPoint-7 12VDC or 24VDC @ 6 amp continuous supply current.
+ BAT –
Stand-by battery connections. Maximum charge rate 500mA.

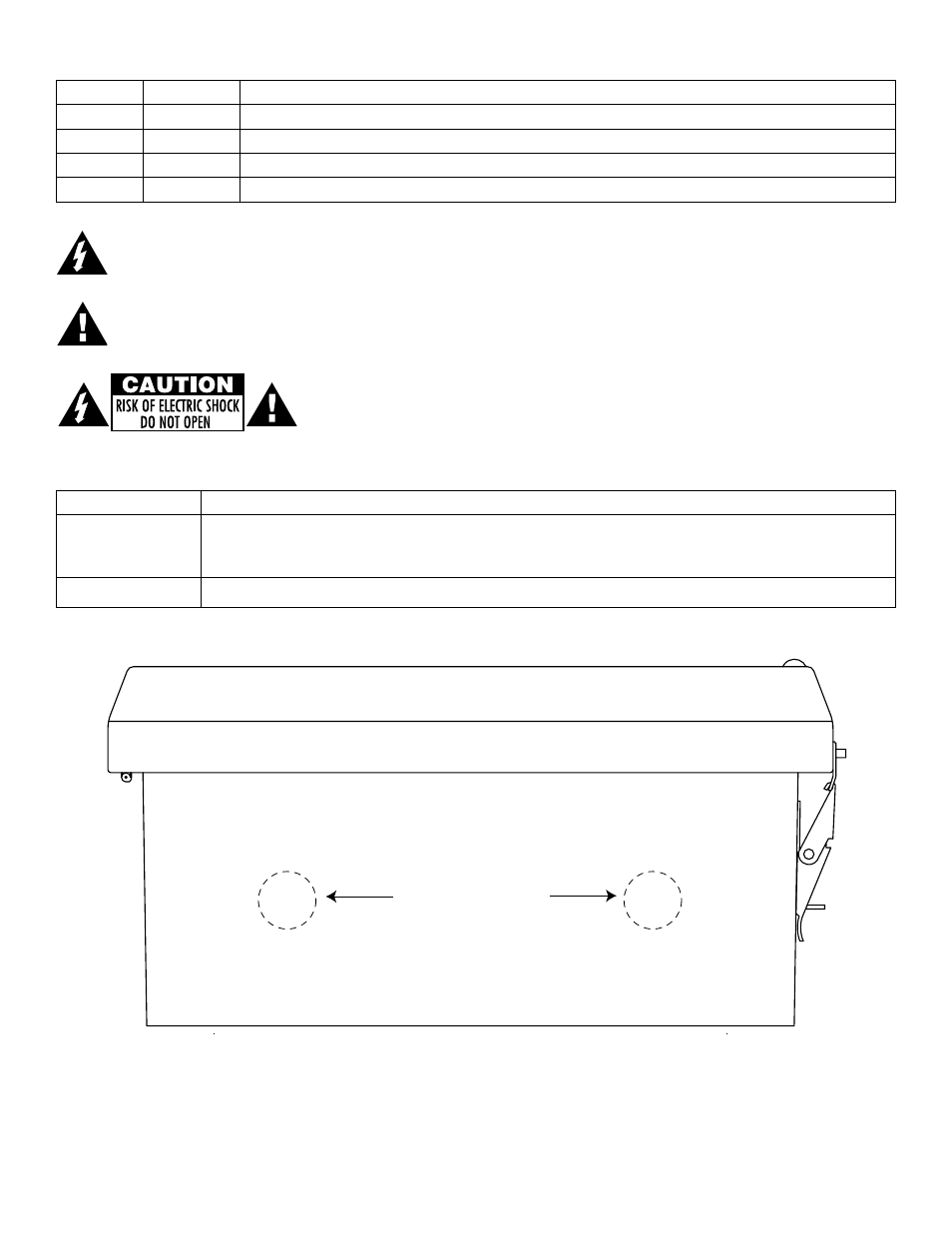

Bottom of Enclosure
Suggested Locations
for Wiring Inlets
