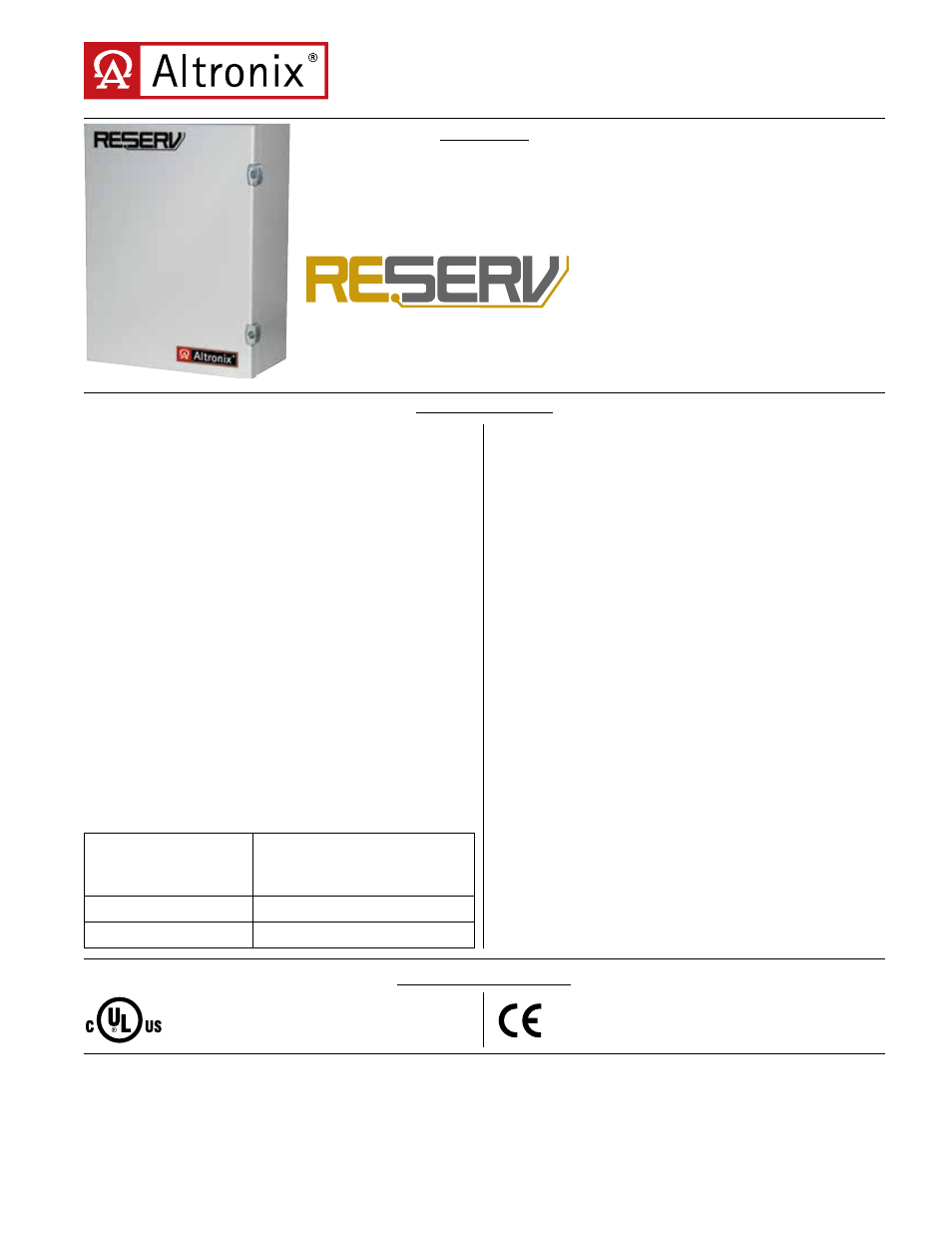

background image

ReServ1WP

Outdoor Video Surveillance UPS

Rev. DSReServ1WP_03112013

ReServ1WP Outdoor Video Surveillance UPS is designed to simultaneously
provide power for 24VAC and 12VDC cameras during normal or power
outage conditions. True sine wave regulated AC outputs and regulated DC outputs.

Overview

Specifications

®

®

ReServ1WP

Agency Approvals

European Conformity

UL/CUL Listed for Information Technology
Equipment (UL 60950-1).

Input:

• 115VAC 60Hz, 3.5 amp.

Output:

• 16 individually PTC protected outputs
configured as follows:
• Twelve (12) outputs @ 24VAC.
• Four (4) outputs @ 12VDC.
• Total supply current:
24VAC @ 4 amp (0.33 amp per device, 1 amp max.).
and 12VDC @ 2 amp (0.5 amp per device, 1 amp max.).
(Amb. Temp. -33º - 30º C).
24VAC @ 3.5 amp (0.29 amp per device, 1 amp max.).
and 12VDC @ 2 amp (0.5 amp per device, 1 amp max.).
(Amb. Temp. -33º - 42º C).
• PTC protected power-limited outputs are
rated @ 1 amp.

Battery Backup:

• Built-in charger for sealed lead acid or
gel type batteries.
• Automatic switchover to stand-by battery
when AC fails.

Stand-by Batteries

4 amp (100VA) load

at 24VAC and 2 amp load

at 12VDC max.

Two (2) 12VDC/7AH

45 minutes

Two (2) 12VDC/12AH

90 minutes

Supervision:

• AC fail supervision (form “C” contacts).
• Low battery supervision (form “C” contacts).

Electrical:

• Operating temperature: -33º C to 42º C ambient.
• 45 BTU/Hr.
• System AC input VA requirement: 402.5VA.

Features:

• AC/DC power LED indicators.
• Sixteen (16) power output LED indicators.
• Low voltage input and Shutdown LED indicators.
• True sine wave regulated AC outputs and
regulated DC outputs.
• Audible alarm provides notification of
UPS trouble conditions.
• Unit maintains camera synchronization.
• Ease of installation saves time and eliminates
costly labor.

Mechanical:

• NEMA4 / IP66 Rated Enclosure.
• Integral flanges simplify wall or pole mounting.
• Enclosure Dimensions (H x W x D approx.):
17.5” (444.5mm) x 12” (304.8mm) x 6.625” (168.3mm)
• Enclosure accommodates up to
two (2) 12VDC/12AH batteries.
• Product weight (approx.): 21.5 lbs. (9.75 kg).
• Shipping weight (approx.): 23.0 lbs. (10.43 kg).
