- 6 - HubSat4Di
1 - White/Orange [VIDEO +]
2 - Orange [VIDEO -- ]
3 - White/Green [DATA +]
4 - Blue [AC 1]
5 - White/Blue [AC 2]
6 - Green [DATA -- ]
7 - White/Brown [AC 2]
8 - Brown [AC 1]

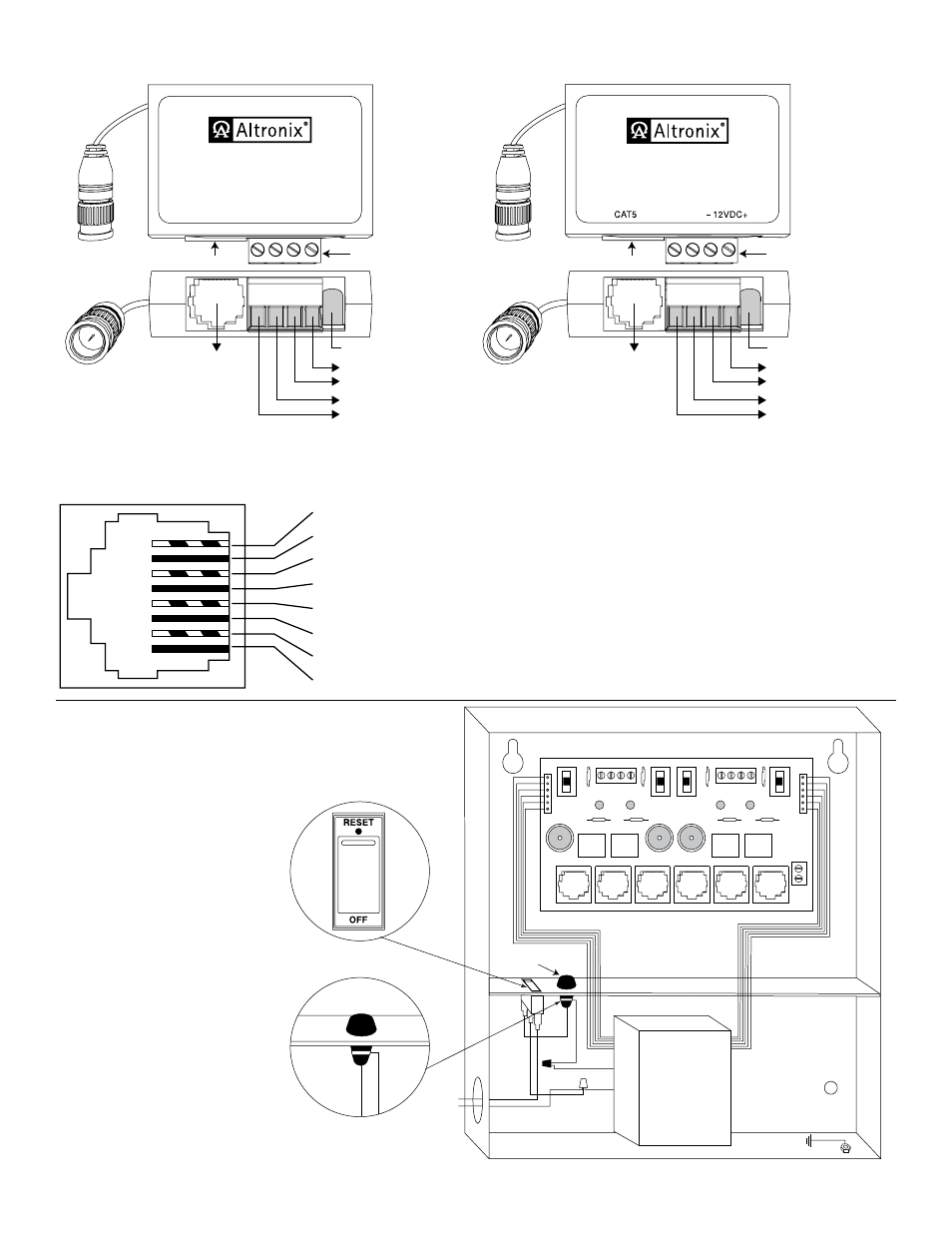

Fig. 3 - CAT5 Wiring Color Codes
VIDEO BALUN/COMBINER
CAT5 + DATA -- POWER + DATA --
AC
VIDEO
HubWayAv
VIDEO
AC Power
to Camera
Data to
Camera
--
Green Power LED
12VDC Power
to Camera
+
--
Red Power LED
Removable
Terminal Block RJ45 Jack
Removable
Terminal Block RJ45 Jack
To BNC
Connector
of Camera
To BNC
Connector
of Camera
Structured
Cable from
HubSat4Di
Structured
Cable from
HubSat4Di
+
Data to
Camera
--
+
VIDEO BALUN/COMBINER
HubWayDv
Fig. 2 - HubWayAv and HubWayDv Video Balun/Combiners
Fig. 2c Fig. 2a
Fig. 2b Fig. 2d
HubWayAv passes AC voltage through pins 4, 5, 7, 8 and
[AC Power] terminals. HubWayDv converts AC voltage to DC voltage through
pins 4, 5, 7, 8 and [-- 12VDC +] terminals.
Green Lead
(Ground)
115VAC
Input
50/60 Hz.
(ON)
White
Lead
Black
Lead
non power-
limited
non power-limited
non power-limited
XFMR
PVD1
VIDEO1 VIDEO2 VIDEO3
PVD2 PVD3 PVD4
+ D
A TA
-
DATA 1-4 VIDEO 1-4
28VAC
24VAC
28VAC
24VAC
28VAC
24VAC
28VAC
24VAC
OFF OFF OFF OFF
AUX1 AUX2 AUX3 AUX4
Primary
In-line Fuse
Illuminated master power
disconnect circuit breaker:
• OFF position Circuit breaker
tripped – Switch not illuminated.
• RESET (ON) position – Switch illuminated.
Fig. 4a
Fig. 4
Fig. 4b
Primary In-line fuse:
Rated @ 3.5A/250V
