- 4 -
HubSat4Di
3. Set illuminated master power disconnect circuit breaker to the RESET (ON) position (Fig. 4a, pg. 6) power
LEDs (Green) of the HubSat4Di will illuminate when AC power is present (Fig. 1e, pg. 4) and HubWayAv,
HubWayDv or HubWayDvi Video Balun/Combiner LEDs will illuminate indicating power is present
(Fig. 2b, 2d, pg. 6).
4. Measure the output voltage at each Video Balun/Combiner (Figs. 2b, 2d, pg. 6) before making connections to
each camera to insure proper operation and avoid possible damage.
5. Set illuminated master power disconnect circuit breaker to the (OFF) position (Fig. 4a, pg. 6).
6. Connect power outputs of HubWayAv, HubWayDv or HubWayDvi Video Balun/Combiners to power inputs
of cameras (Figs. 2a-2d, pg. 6). Polarity must be observed.
• HubWayAv - Terminals marked [AC POWER] (Figs. 2a, 2b, pg. 6).
• HubWayDv/HubWayDvi - Terminals marked [– 12VDC +] (Figs. 2c, 2d, pg. 6).
7. Connect the terminals marked [+ DATA -- ] of HubWayAv, HubWayDv or HubWayDvi Video Balun/Combiners
to data input terminals of cameras for PTZ control (Figs. 2b-2d, pg. 6). Polarity must be observed.
When using fixed cameras disregard this step.
8. Connect the BNC connector of HubWayAv, HubWayDv or HubWayDvi Video Balun/Combiners to the
BNC video outputs of cameras (Figs. 2b-2d, pg. 6).

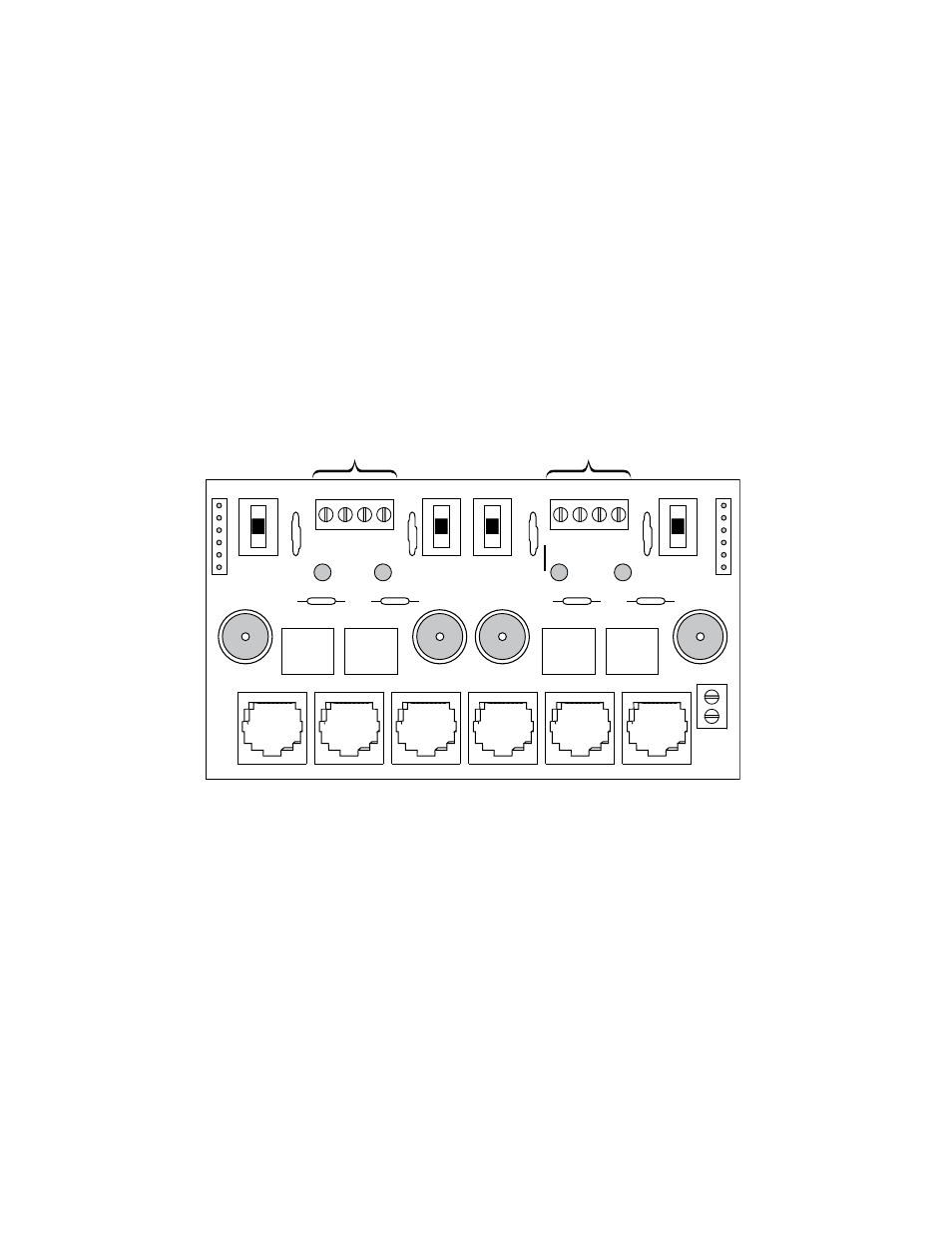

Fig. 1 - HubSat4Di Circuit Board
1i -
Channels 1-4:
CAT-5 or higher
structured cable
to cameras.
PVD1
VIDEO1
VIDEO2
VIDEO3
VIDEO4
PVD2
PVD3
PVD4
+ DA
TA
-
DATA 1-4
VIDEO 1-4
28VAC
24VAC
28VAC
24VAC
28VAC
24VAC
28VAC
24VAC
OFF
OFF
OFF
OFF
AUX1
AUX2
AUX3
AUX4
1e -
LED(s) 1-4:
Power output
indicators.
1a -
BNC
Connector: Video
in from remote
camera video
out to DVR.
1g -
Channels 1-4: Single CAT-5 or higher
structured cable out to HubWay8/16,
HubWayLD8/16,
HubWayLDH8/16 enables transmission
of up to four (4) video signals.
1h -
Data: CAT-5 or higher structured
cable to data port on HubWay8/16, HubWayLD8/16,
HubWayLDH8/16 or head end equipment (DVR).
1c -
Power Terminals: 24VAC/28VAC power outputs.
1b -
Output
PTCs: Protects
each output.
1f -
Data:
RS422/RS485
input from head
end equipment
(DVR) for PTZ
control.
1d -
Output
Voltage
Switches: Selects
24VAC/28VAC/
OFF for each out-
put.
