NetWay4ESK - 7 -

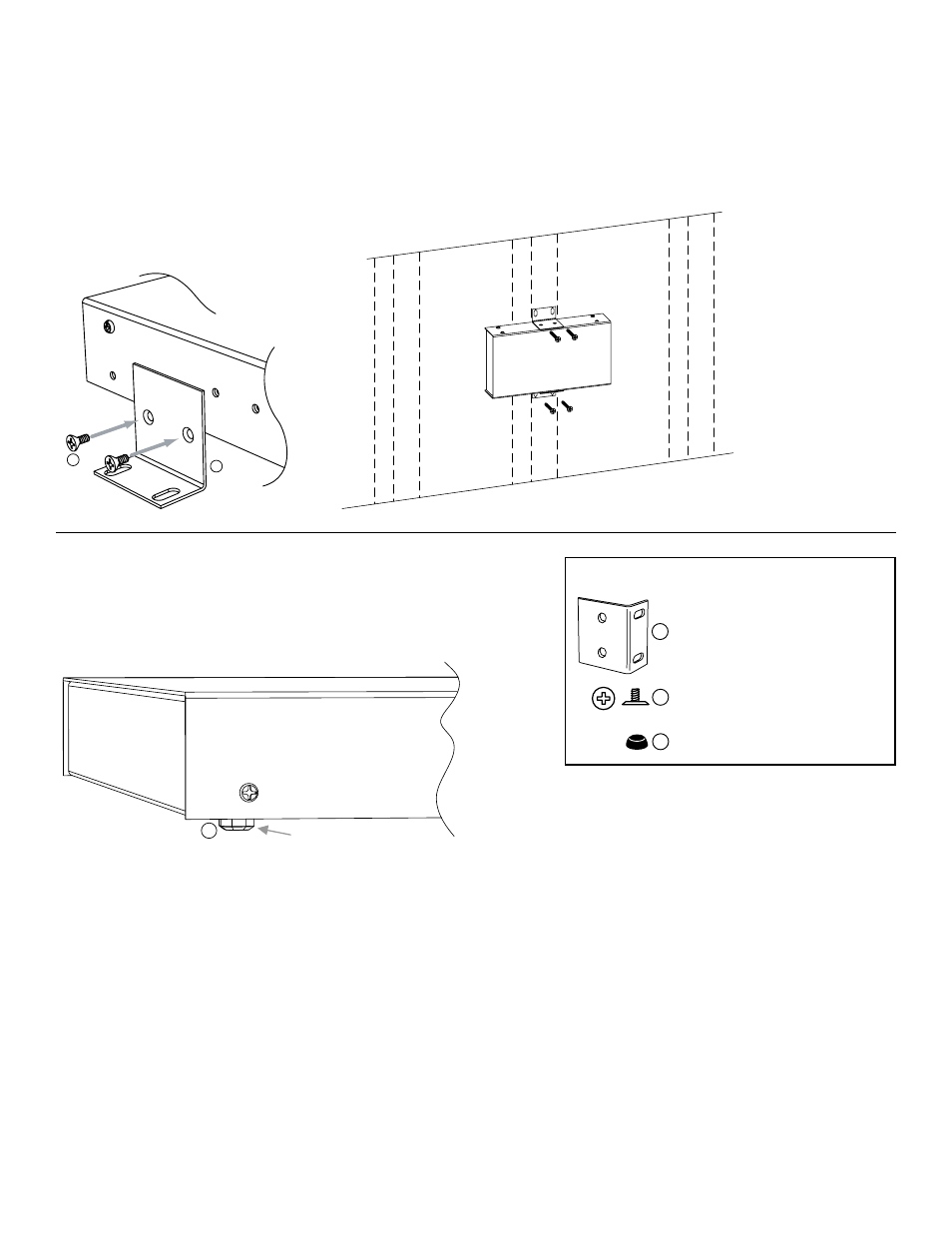

Mounting Options:
Wall Mount Installation
1- Install mounting brackets (A) on the left and right side of rack chassis using four (4) flat head screws (B)
(included)
(Fig. 5a).
2- Place unit at desired location and secure with mounting screws (not included) (Fig. 5b).
Caution: It is necessary to make sure mounting screws are securely fastened to a beam when installing the
unit horizontally.
Fig. 5
Fig. 5a Fig. 5b
Dotted lines indicate
studs behind sheetrock.
Shelf Installation
1- Position and affix rubber pads (C) (included) at each
corner on the bottom of the unit (Fig. 6).
2- Place unit in desired location.
Fig. 6
Left Side
Rubber Pad
B
A
C
Mounting Hardware (Included):
Two (2) mounting brackets
Six (6) flat head screws
for mounting brackets.
Four (4) rubber pads.
B
A
C
