- 2 - NetWay4ESK
2. NetWay4ES installation:
a. Mounting:
-
Attach mounting brackets to NetWay4ES for wall mount installation (Fig. 3, pg. 7).
- Affix rubber pads to NetWay4ES for shelf installation (Fig. 4, pg. 7).
b. Connect IP cameras/devices to RJ45 jacks marked [1-4 PoE Output 10/100BaseT] (Fig. 1, pg. 2).
Technical Specifications:
Parameter Description
Input power requirements Maximum power per port: PoE+ (30W)
Total maximum power: 84W.
Indicators Yellow (RJ45 connector): On - Linked, Off - No Link, Blinking - Activity.
Green (RJ45 connector): On - 100Base-TX, Off - 10Base-T.
Environmental
Conditions Operating Ambient Temperature: UL60950-1 14ºF to 122ºF (-10ºC to 50ºC).
Relative humidity: 85%, +/ --- 5%
Storage Temperature: --- 4º to 158ºF (--- 20º to 70ºC) Storage
Operating Altitude: --- 1000 to 6,561.679 ft. (--- 304.8 to 2000m).
Regulatory Compliance UL/CUL Listed for Information Technology Equipment (UL 60950-1). CE approved.
Weights (approx.) Product: 2.9 lbs. (1.32 kg), Shipping: 3.9 lbs. (1.77 kg)

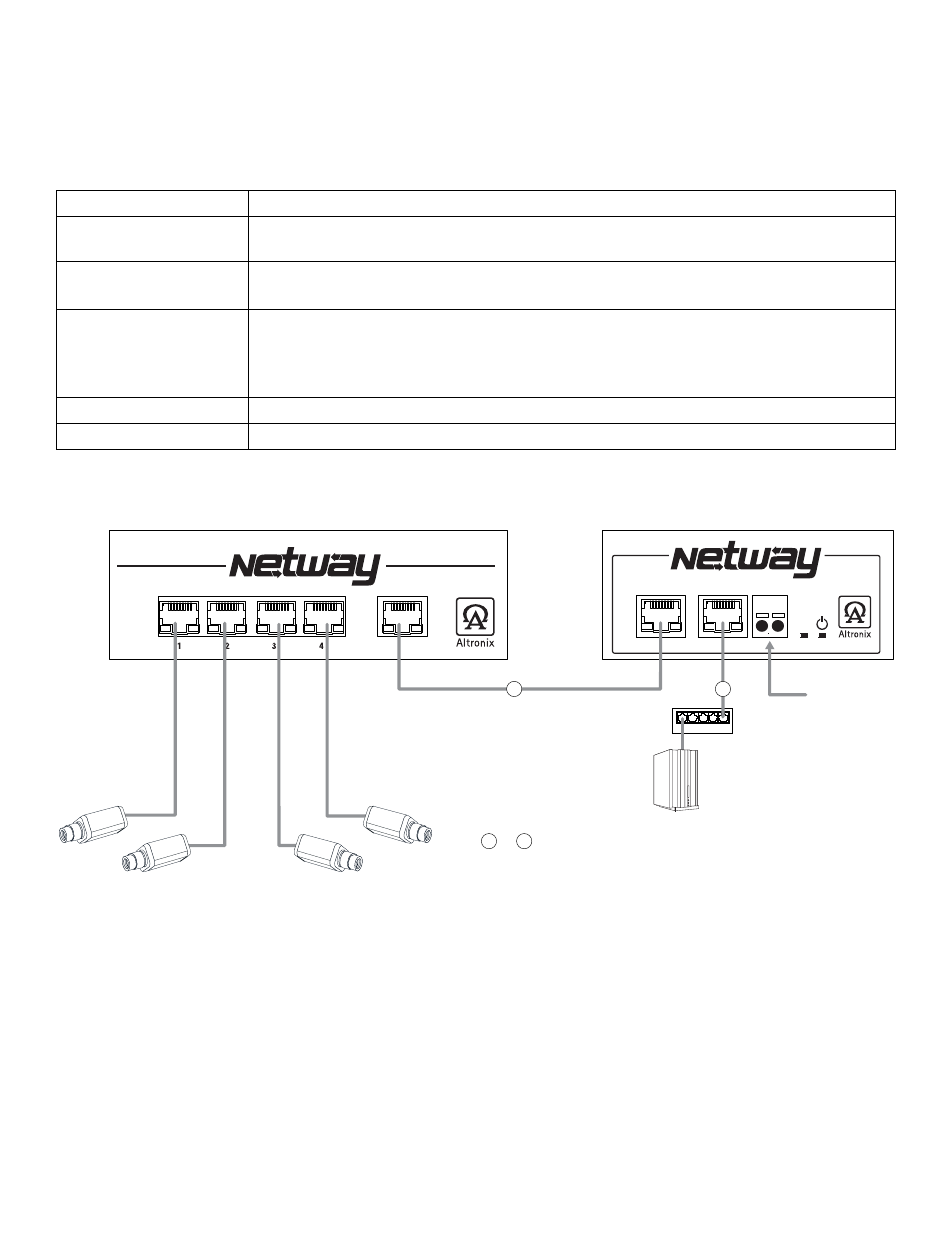

Typical Application:
Fig. 1
Ethernet
Switch
NVR Network
Video Server
(Head End
Equipment)
NetWay1E (MDF) NetWay4ES (IDF)
PoE
Output
10/100
Base-T
INPUT
Up to
328 ft.
(100m)
max.
Up to
328 ft.
(100m)
max.
Up to
328 ft.
(100m)
max.
Up to
328 ft.
(100m)
max.
IP Camera
IP Camera IP Camera
IP Camera
Input for
Remote Manual
PoE Shutdown
--- +
PoE
Shutdown IN OUT
PoE
ON
1 + 2 = maximum CAT5e or high structured cable distance 328 ft. (100m).
2 1
