Altronix HubWay LDH8 Installation Instructions - Manual (Page 7)

HubWayLDH Active Hub Unit - 7 -
1.625"
8.5"
.75"
19.125"
17.625"
(ON)
16
PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE AC POWER GAIN
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
1 2 3 4 CH 1-4 CH 5-8
DATA
1-8
DATA
9-16
5 6 7 8 9 10 11 12 CH 9-12 13 14 15 16 CH 13-16

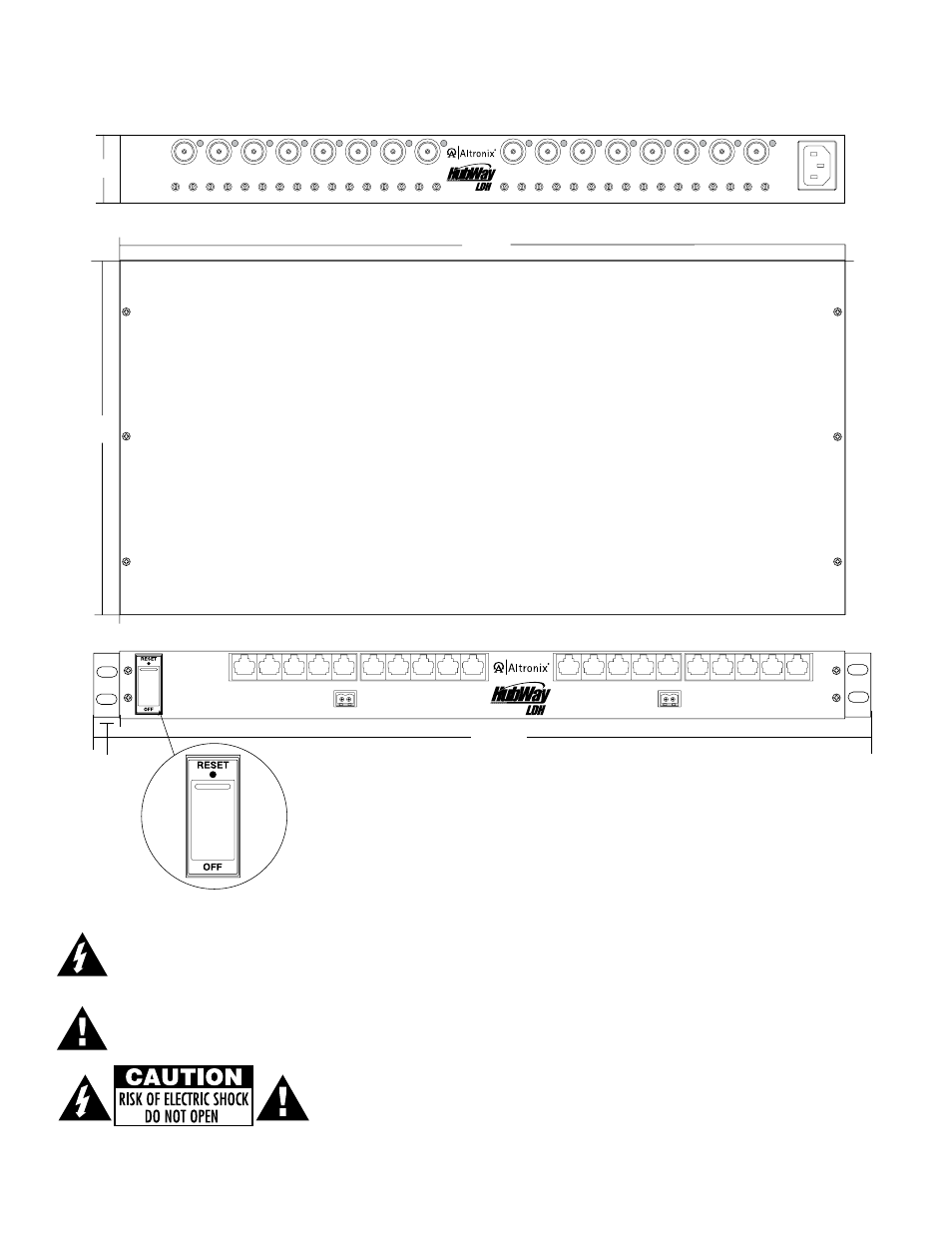

1U EIA 19” Rack Mount Chassis Mechanical Drawing & Dimensions (H x W x D):
1.625” x 19.125” x 8.5” (42mm x 486mm x 216mm)
TOP & BOTTOM
REAR
FRONT
Fig. 4
Illuminated master power disconnect circuit breaker:
• OFF position Circuit breaker tripped – Switch not illuminated.
• RESET (ON) position – Switch illuminated.
The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the user to the
presence of an insulated “DANGEROUS VOLTAGE” within the products enclosure that may be of sufficient
magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
CAUTION: To reduce the risk of electric shock do not open enclosure. There
are no user serviceable parts inside. Refer servicing to qualified service personnel.
