R2416ULseries - 3 -
4. Plug power cord into grounded 115VAC 50/60 Hz receptacle (Fig. 1c, pg. 3), ground should be connected
as indicated in (Fig. 1e, pg. 3).
5. Set power disconnect circuit breaker to RESET (ON) position (Fig. 1d, pg. 3).
6. Measure output voltage before connecting devices. This helps avoiding potential damage.
All terminals with common suffix (P) “1P, 2P...” are the same polarity.
7. Set power disconnect circuit breaker to OFF position (Fig. 1d, pg. 3).
8. Connect devices to the removable terminal blocks marked [1P & 1N through 16P & 16N] (Fig. 1a, pg. 3).
When wiring is completed on the terminal blocks they can be locked down by tightening screw flanges.
9. Upon completion of the wiring, set power disconnect circuit breaker to RESET (ON) position (Fig. 1d, pg. 3).
10. Green power LEDs on faceplate will illuminate when power is present. When an output is in
a trouble condition (blown fuse or tripped PTC) the corresponding LED will not be illuminated (Fig. 1, pg. 3).
a. Blown fuse (R2416UL, R2416300UL & R2416600UL) - Set power disconnect circuit breaker on the back
of the unit to the OFF position (Fig. 1e, pg. 3).
Remove front faceplate to access fuses. Replace with fuses rated @ 3.5A/250VA (Altronix model # Fuse1).
b. Tripped PTC (R2416ULCB, R2416300ULCB & R2416600ULCB) - To reset PTC, set power switch on the back
of the unit to the OFF position. After approximately 30 secs. set power disconnect circuit breaker to
the ON (RESET) position (Fig. 1d, pg. 3).
11. Illuminated power disconnect circuit breaker with manual reset:
OFF position - Switch not illuminated. Outputs not powered.
RESET (ON) position - Circuit breaker illuminated. Outputs powered.
Circuit breaker tripped - Circuit breaker is not illuminated. Power LEDs on faceplate are not illuminated.
Outputs not powered.
To reset circuit breaker set power disconnect circuit breaker to RESET (ON) position (Fig. 1d, pg. 3).
XFMR* ALTRONIX CORP.
BROOKLYN, NY 11220 MADE IN USA
XFMR*
N
PS
AC Power
LED's
AC Power
LED's
AC Power
LED's
AC Power
LED's
Divider
Removable Terminal
Block
(Green Wire
Earth GND)
PTC1
Used
on PTC
Models
Fuse Fuse
S P N S P N
24VAC Output
(Factory Set)
28V
AC (Black)
24V
AC (Y
ellow)
COM (Brown) 28V
AC (Black)
24V
AC (Y
ellow)
COM (Brown)
28VAC Output
Illuminated
Power Disconnect
Circuit Breaker with
manual reset
P
N
S
Strain Relief
Line Cord

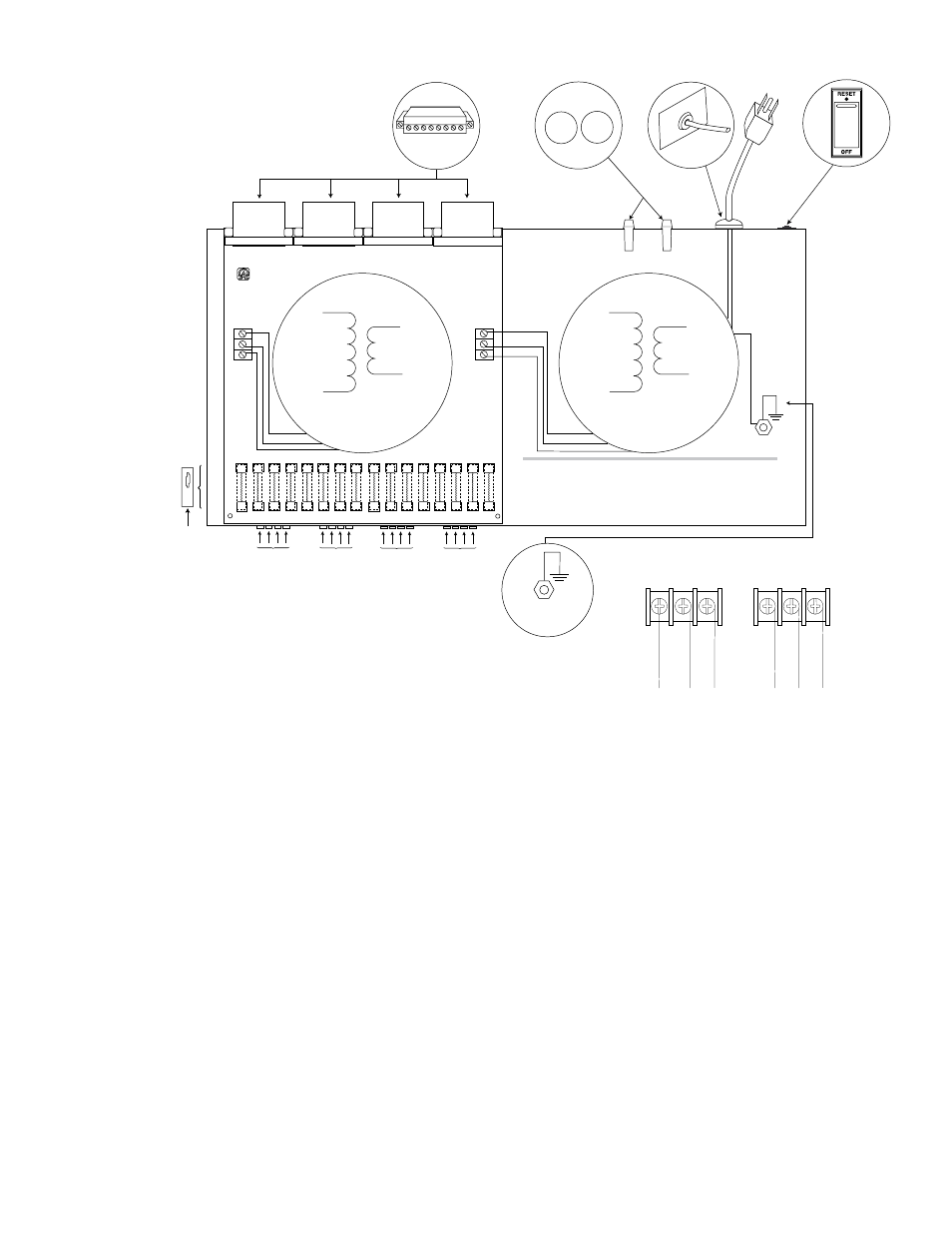

Fig. 1 Fig. 1a Fig. 1b Fig. 1c
Fig. 1e
Fig. 1d
Class 2 Rated Power-Limited Outputs.
Except for R2416UL, R2416300UL,
R2416600UL and R2416ULCB when
set for 28VAC.
