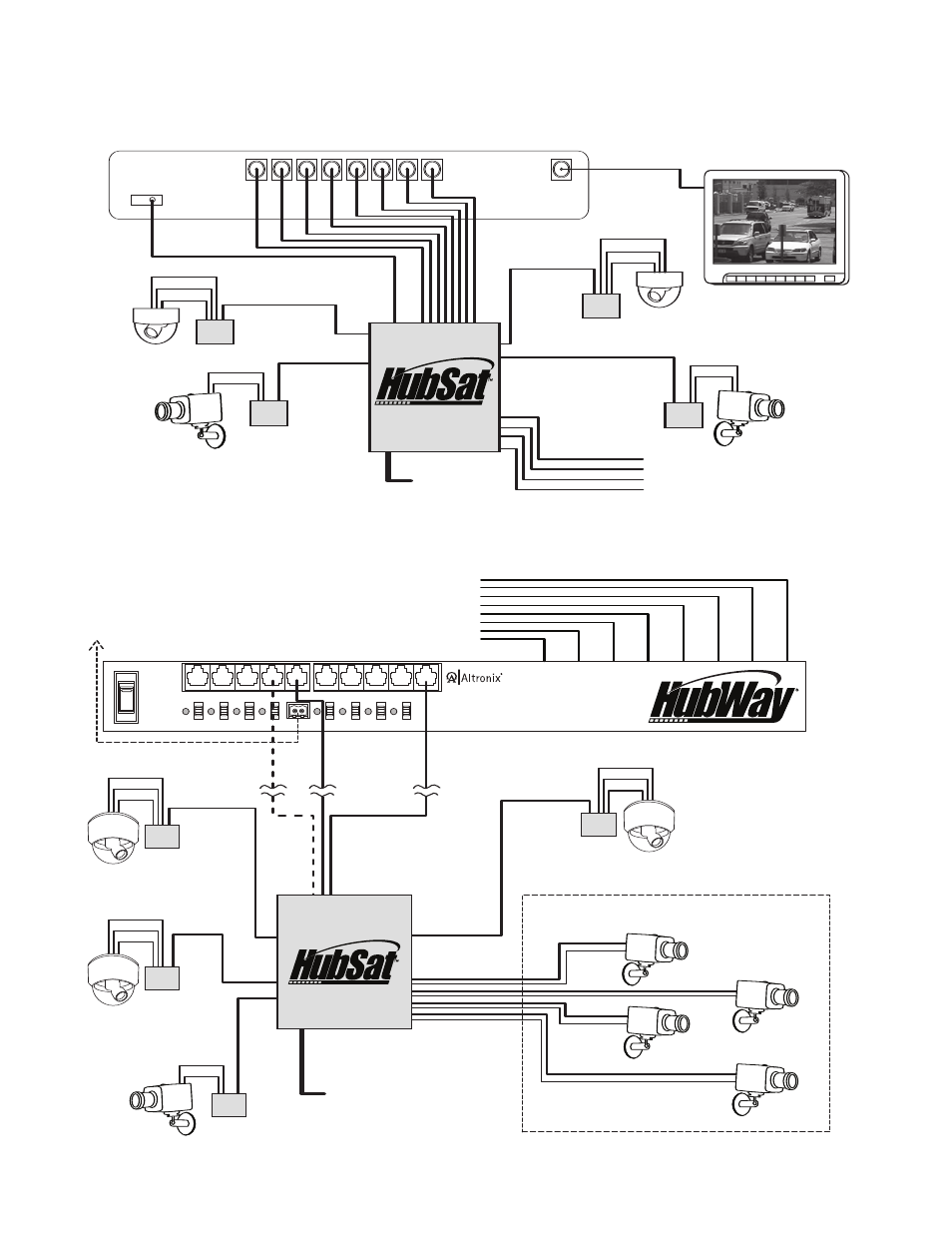

Typical Application Drawing
HubSat8D Remote Accessory Module with HubWay UTP Transceiver Hubs:
Video
connections
on rear of unit
Video Out
To Head End
Equipment (DVR)
Data
To Head End
Equipment
(DVR)
12 3 4 CH 1-4 CH 5-8
28VAC
OFF
24VAC
DATA
1-8
56 7 8
Video
Power
HubWayD
Video Balun
Combiner
CAT-5
CAT-5
CAT-5
CAT-5
HubWayA
Video Balun
Combiner
24VAC
PTZ
Camera
24VAC Fixed
Camera
Four (4)
Video signals
over a single CAT-5 Four (4)
Video signals
over a single CAT-5
Data (CAT-5)
or Twisted Pair
24VAC/28VAC
Camera Power
Provided
by HubSat8D
115VAC Input,
60Hz
HubWayD
Video Balun
Combiner
Video
Data
Power
Video
Data
Power
12VDC
PTZ
Camera
Coax
Power
12VDC Fixed
Camera
Coax
Power
HubWayD
Video Balun
Combiner
Video
Data
Power
12VDC
PTZ
Camera
24VAC Fixed
Camera
Coax
Power
24VAC Fixed
Camera
Coax
Power
24VAC Fixed
Camera
Fig. 6
Typical Application Drawing
HubSat8D Passive UTP Transceiver Hub with Integral Camera Power:
115VAC Input,
60Hz
Head End Equipment (DVR)
RS485
BNC
Data
Video
Power
CAT-5
Video
Power
HubWayA
Video Balun
Combiner
HubWayA
Video Balun
Combiner
CAT-5
CAT-5
CAT-5
24VAC PTZ
Camera
HubWayD
Video Balun
Combiner
HubWayD
Video Balun
Combiner
(4) Additional
Fixed or PTZ
Cameras
Video
Data
Power
Video
Data
Power
24VAC/28VAC
Camera Power
Provided
by HubSat8D
24VAC Fixed
Camera
12VDC PTZ
Camera
Monitor
12VDC Fixed
Camera
Fig. 5
Fig. 6a - Alternate 24VAC fixed camera hookup.
